FRONT FENDER

GSXR1000Z 2004 (K4) USA (E03)

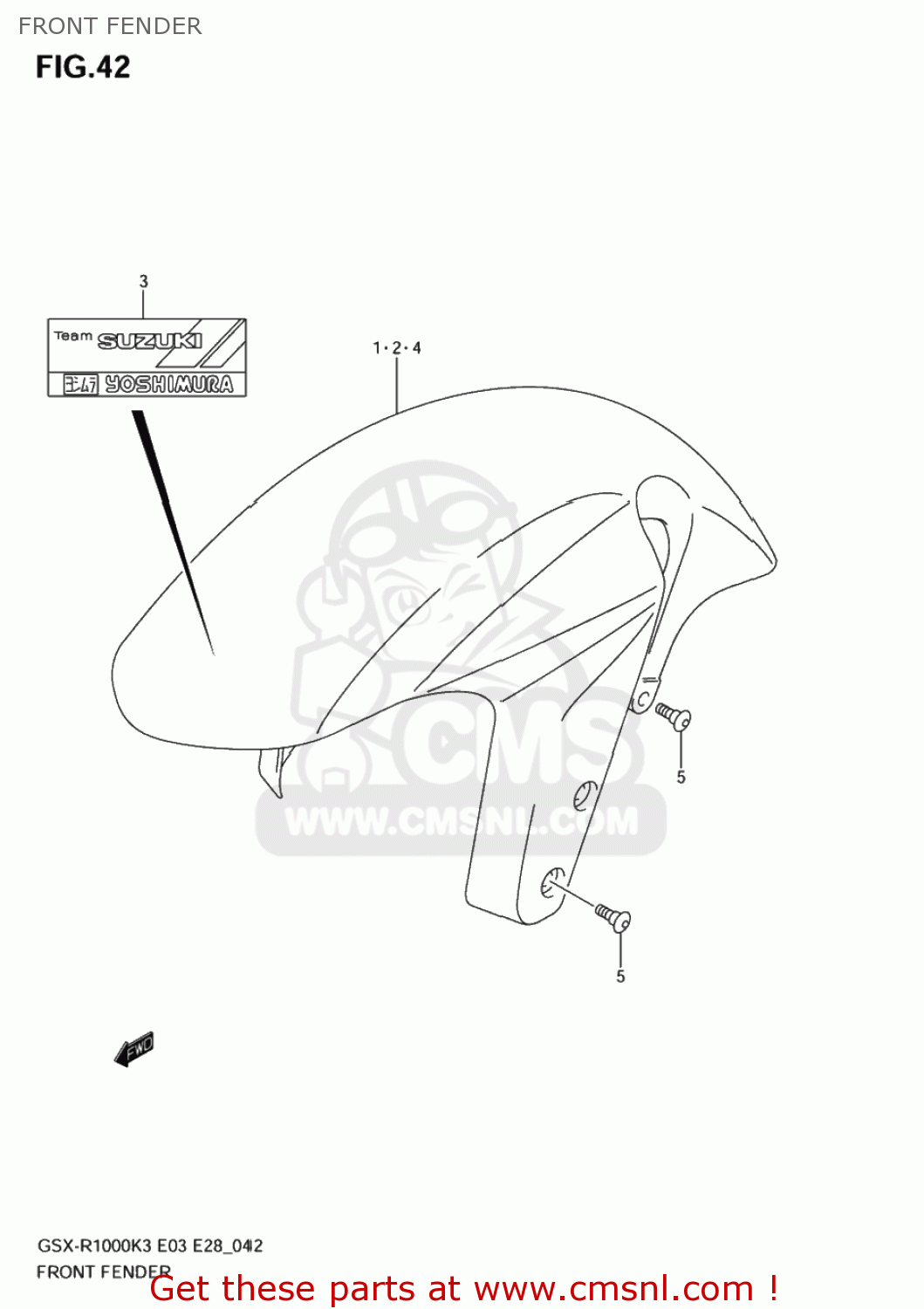

Front fender diagram GSXR1000Z 2004 (K4) USA (E03)

FRONT FENDER GSXR1000Z 2004 (K4) USA (E03)

FRONT FENDER GSXR1000Z 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5311018G00019
ref: 1-1

FENDER,FR

€ 207.50

1-2

5311018G00YD8
ref: 1-2

FENDER,FR

€ 140.00

2

5310018GA0019
ref: 2

FENDER ASSY,FR(BLACK)

€ 175.00

3

6815118GA0YHD
ref: 3

EMBLEM,TEAM-SUZUKI

€ 0.00

4

5311018G00019
ref: 4

FENDER,FR

€ 207.50

5

0913906107
ref: 5

SCREW(6X16)

€ 4.00
