FRAME COVER (GSX-R1000ZK4)

GSXR1000Z 2004 (K4) USA (E03)

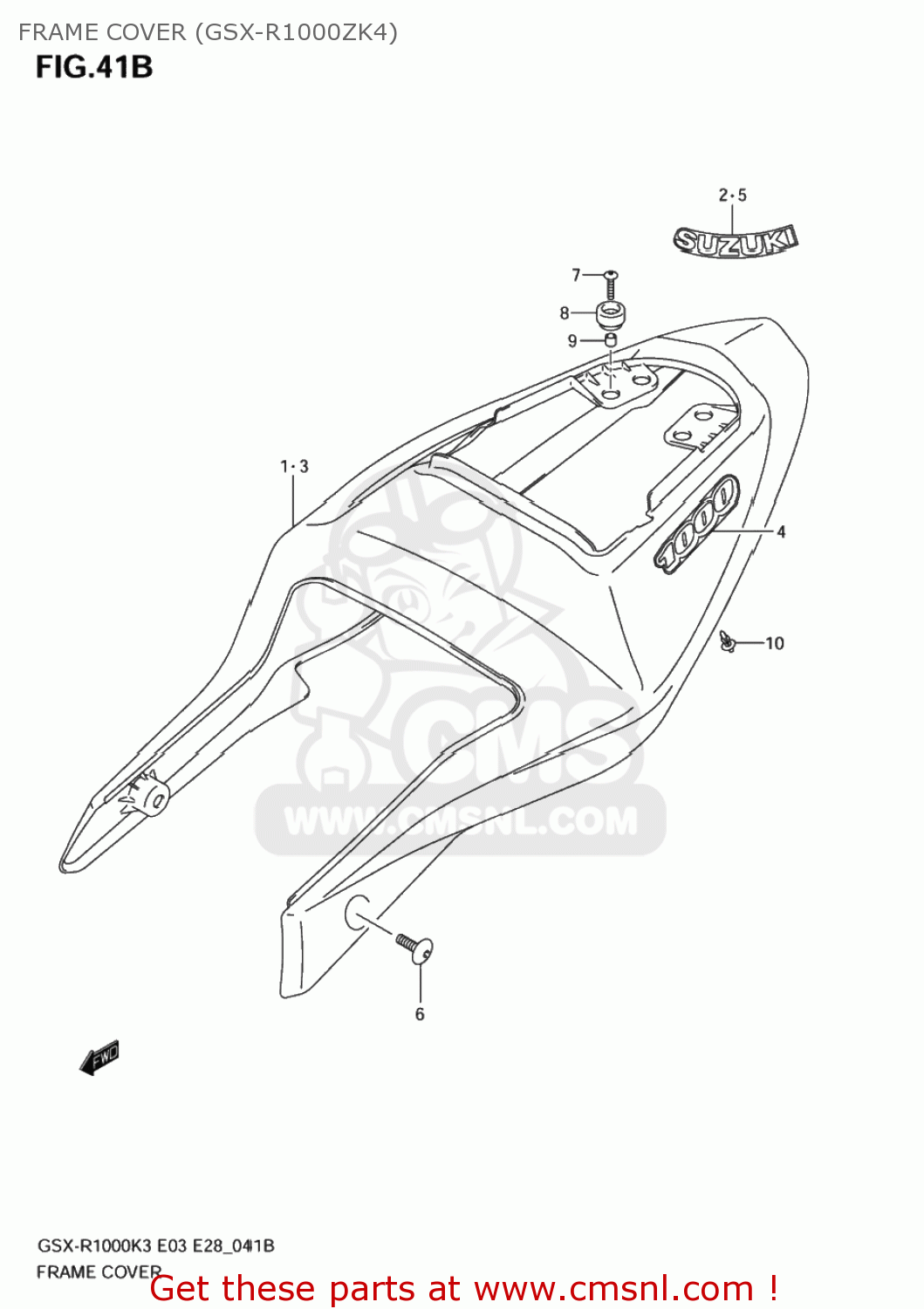

Frame cover (gsx-r1000zk4) diagram GSXR1000Z 2004 (K4) USA (E03)

FRAME COVER (GSX-R1000ZK4) GSXR1000Z 2004 (K4) USA (E03)

FRAME COVER (GSX-R1000ZK4) GSXR1000Z 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4710018GA0YBD
ref: 1

COVER ASSY,FRAME(WHITE)

€ 0.00

2

6813118G00MZ5
ref: 2

EMBLEM,SUZUKI

€ 13.00

3

4710018G301TX
ref: 3

COVER ASSY,FRAME(BLACK)

€ 358.50

4

6813118G30AZM
ref: 4

EMBLEM,1000

€ 7.50

5

6813118G00E9Y
ref: 5

EMBLEM,SUZUKI

€ 9.00

6

0913906131
ref: 6

SCREW(6X16)

€ 4.00

7

0913906029
ref: 7

SCREW(6X25)

€ 5.00

8

0918006286
ref: 8

SPACER(6.5X10X9.4)

€ 2.50

9

0932010045
ref: 9

CUSHION

€ 3.50

10

09409063145PK
ref: 10

CLIP(BLACK)

€ 3.50
