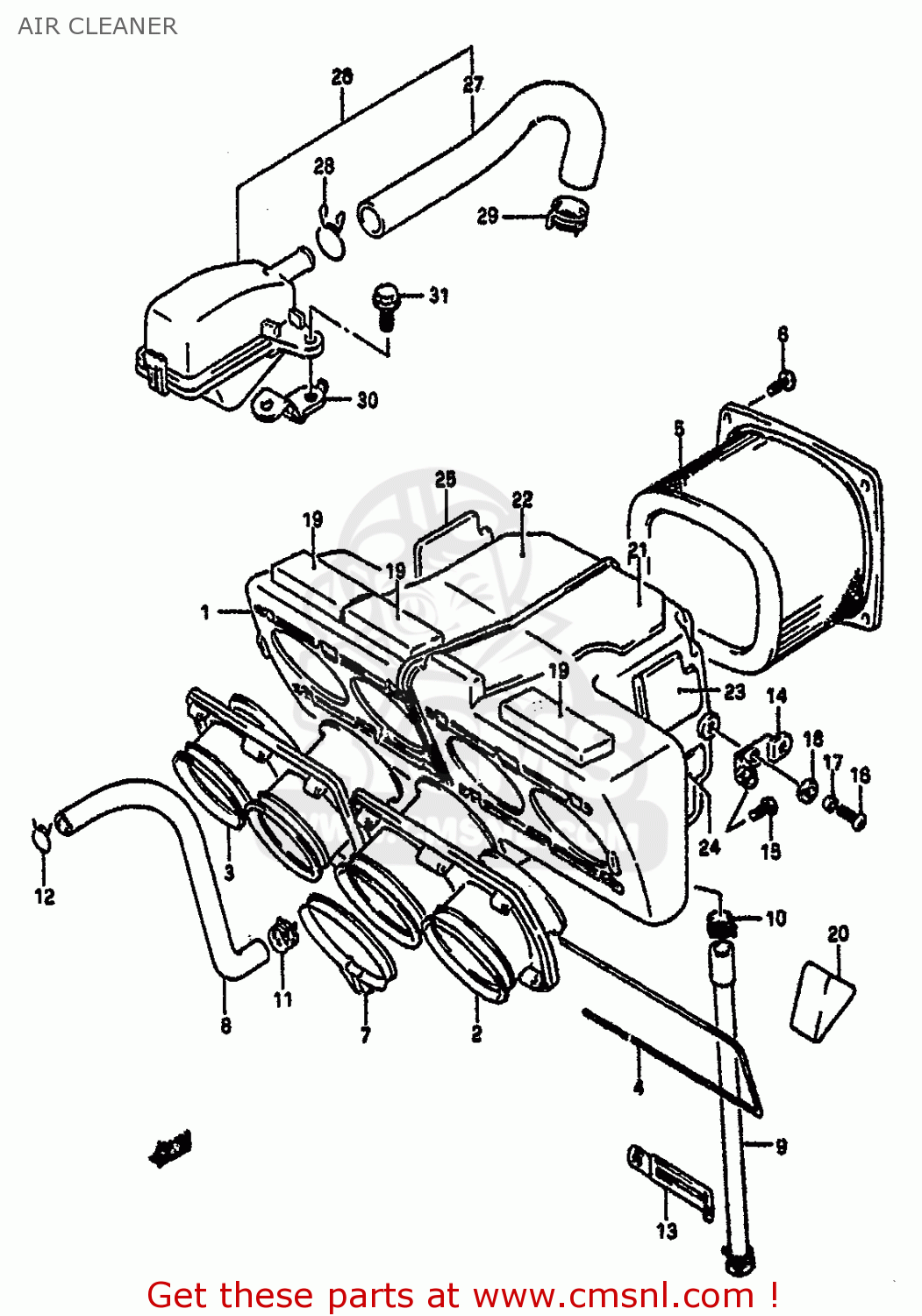

AIR CLEANER

ref

part #

description

quantity

1-1

1372007D00
ref: 1-1

CASE,AIR CLEANER

€ 147.00

1-2

1372017C10
ref: 1-2
E18

CASE COMP,AIR CLEANER

€ 137.50

1-3

1372017C00
ref: 1-3
E39

CASE,AIR CLEANER

€ 137.50

2-1

1388007D00
ref: 2-1

TUBE,OUTLET,L

€ 86.00

2-2

1388017C00
ref: 2-2
E18,E39

TUBE,AIR CLEANER OUTLET LH

€ 81.00

3-1

1389007D00
ref: 3-1

TUBE,OUTLET,R

€ 86.00

3-2

1389017C00
ref: 3-2
E18,E39

TUBE,OUTLET,R

€ 84.00

4

1389917C01
ref: 4

SHAFT,OUTLET TUBE

€ 10.50

5-1

1378017C00
ref: 5-1

FILTER ASSY,AIR CLEANER

€ 49.50

5-2

1378017C10
ref: 5-2
E18

FILTER ASSY,AIR

€ 49.50

6

0214205164
ref: 6

SCREW

€ 2.50

7-1

0940264205
ref: 7-1

CLAMP

€ 6.00

7-2

0940266208
ref: 7-2
E18,E39

CLAMP

€ 6.50

8

1385440C00
ref: 8

TUBE,BREATHER

€ 25.50

9

1387041C00
ref: 9

DRAIN TUBE

€ 13.50

10

0940113406
ref: 10

CLIP

€ 2.50

11

1382448B10
ref: 11

CLIP

€ 3.00

12

0940116402
ref: 12

CLIP

€ 2.00

13

0940410404
ref: 13

CLAMP

€ 2.50

14

1376017C01
ref: 14

BRACKET,AIR CLEANER CASE

€ 7.00

15

0214206166
ref: 15

SCREW

€ 2.50

16

0912506029
ref: 16

SCREW(6X18)

€ 2.50

17

0918006073
ref: 17

SPACER

€ 2.00

18

0916109003
ref: 18

WASHER

€ 2.50

19

1384817C00
ref: 19

CUSHION,AIR CLEANER CASE

€ 3.50

20

1389717C00
ref: 20

CUSHION,AIR VENT HOSE

€ 9.00

21

1384217C10
ref: 21
EXCEPT E1

SHEET,AIR CLEANER NO.1

€ 14.50

22

1384317C10
ref: 22
EXCEPT E1

SHEET,AIR CLEANER NO.2

€ 13.00

23

1384417C10
ref: 23
EXCEPT E1

SHEET,AIR CLEANER NO.3

€ 6.50

24

1384517C10
ref: 24
EXCEPT E1

SHEET,AIR CLEANER NO.4

€ 6.50

25

1384617C10
ref: 25
EXCEPT E1

SHEET,AIR CLEANER NO.5

€ 0.00

26

1370017D10
ref: 26
EXCEPT E18,E39

CLEANER ASSEMBLY,AIR

€ 36.00

27

1385317D10
ref: 27
EXCEPT E18,E39

TUBE,2ND AIR CLEANER

€ 15.50

28

1382417D10
ref: 28
EXCEPT E18,E39

CLIP

€ 2.00

29

1382617D10
ref: 29
EXCEPT E18,E39

CLAMP

€ 3.50

30

1376041C10
ref: 30
EXCEPT E18,E39

BRACKET, 2ND AIR CLEANER

€ 5.50

31

0151706164
ref: 31
EXCEPT E18,E39

BOLT

€ 2.50
