FRONT DAMPER

GSXR1100 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

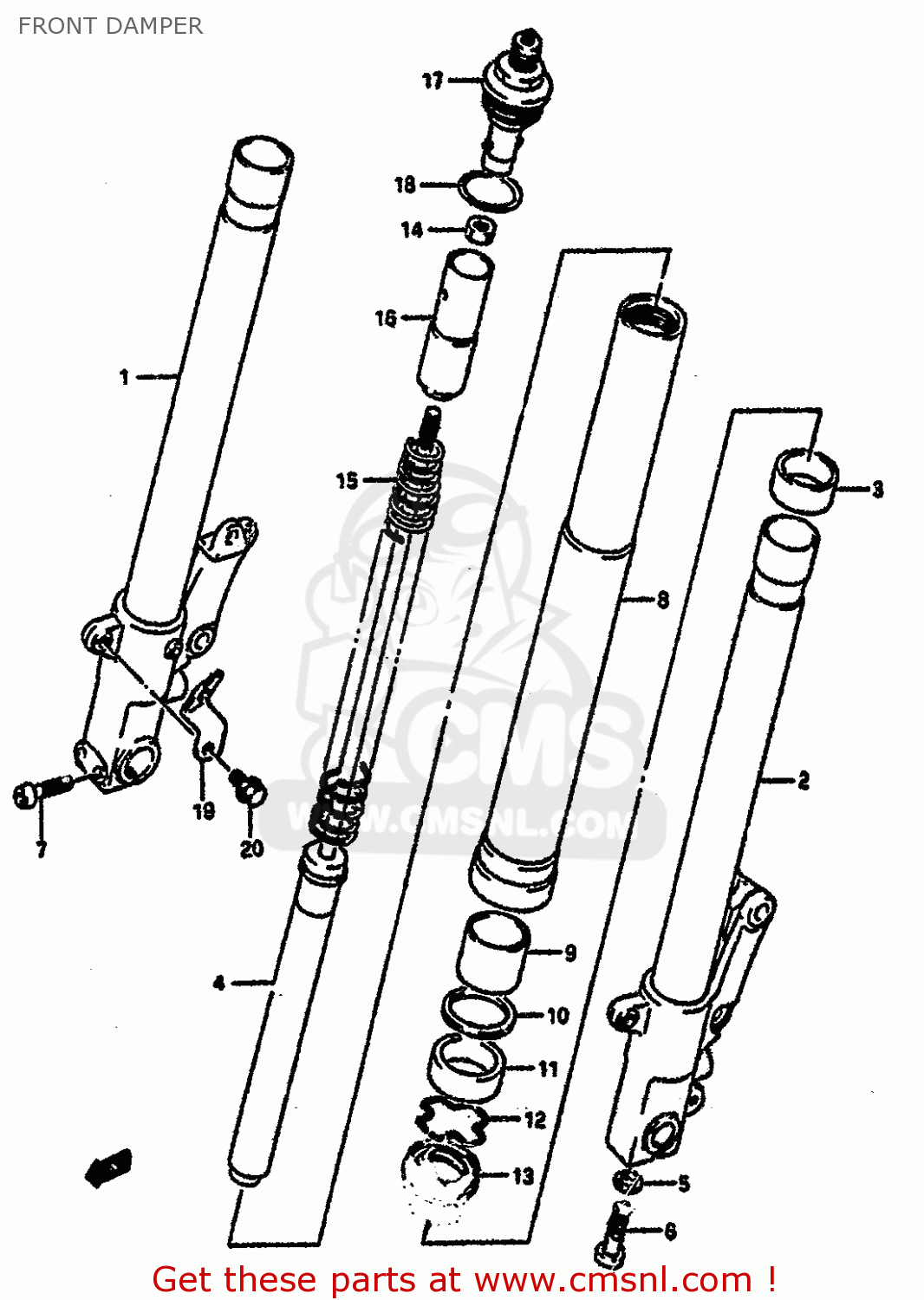

Front damper diagram GSXR1100 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

FRONT DAMPER GSXR1100 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FRONT DAMPER GSXR1100 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FRONT DAMPER GSXR1100 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
0
5110341C00
ref: 0
DAMPER ASSY, RH
€ 1,933.00
0
5110441C00
ref: 0
DAMPER ASSY, LH
€ 1,569.50
1
5111040C40
ref: 1
TUBE,INNER,R
€ 490.00
2
5112040C40
ref: 2
TUBE,INNER,L
€ 509.50
3
5112128C00
ref: 3
PISTON
5112128C00
€ 23.00
4
5114641C00
ref: 4
CYLINDER ASSY
€ 415.50
5
5114840300
ref: 5
GASKET,CYLINDER (NAS)
5114840300
€ 2.50
6
5114740C00
ref: 6
BOLT,OIL LOCK PIECE,12X22
5114740C00
€ 24.50
7
5176640C40
ref: 7
BOLT
5176640C40
€ 3.00
8
5113040C40
ref: 8
TUBE,OUTER
€ 618.00
9
5116740C40
ref: 9
5116740C40
10
5115805A00
ref: 10
WASHER,FORK OIL SEAL
5115805A00
€ 5.00
11
5115306C00
ref: 11
OIL SEAL,FRONT FORK
5115306C00
€ 22.00
12
5115649440
ref: 12
RING,OIL SEAL STOPPER
5115649440
€ 5.50
13
5117340C40
ref: 13
SEAL,DUST
5117340C40
€ 20.00
14
5135213A60
ref: 14
NUT,ROD
5135213A60
€ 1.50
15
5117140C40
ref: 15
SPRING,MAIN
5117140C40
€ 71.50
16
5117640C40
ref: 16
SPACER,SPRING
5117640C40
€ 21.00
17
5135140C40
ref: 17
CAP ASSEMBLY,FORK
€ 144.50
18
5111728C00
ref: 18
O RING
5111728C00
€ 3.00
19-1
5159017D10
ref: 19-1
PLATE,FRONT FENDER,LEFT
5159017D10
€ 10.00
19-2
5158017D10
ref: 19-2
PLATE,FRONT FENDER,RIGHT
5158017D10
€ 11.50
20
0151708128
ref: 20
BOLT 8X12
0151708128
€ 3.50
