CYLINDER

GSXR1100 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

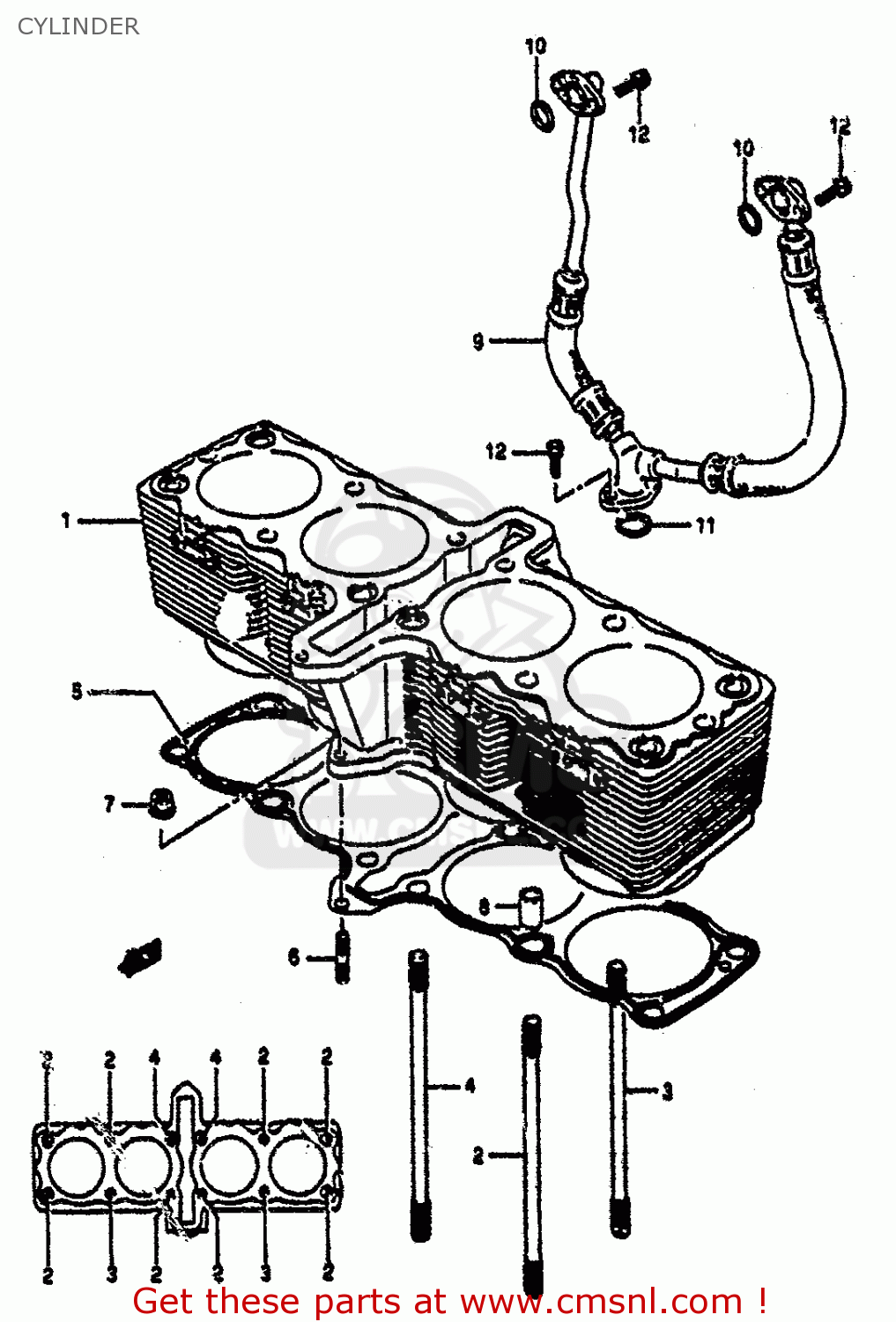

Cylinder diagram GSXR1100 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

1121040C01
ref: 1-1
FOR 01517-062540 -11

CYLINDER

€ 829.00

1-2

1121040C02
ref: 1-2
FOR 01517-06305

CYLINDER

€ 829.00

1-3

1121040C11
ref: 1-3
E18 -F. NO. 101643 E

CYLINDER

€ 1,160.00

1-4

1121040C12
ref: 1-4
E18 F. NO. 101644- E

CYLINDER

€ 1,160.00

0910810081
ref: 2

BOLT,STUD

€ 12.50

0910810099
ref: 3

BOLT,STUD

€ 15.50

0910810108
ref: 4

BOLT,STUD

€ 9.00

1124148B00
ref: 5

GASKET,CYLINDER (NAS)

€ 18.00

0142106205
ref: 6

STUD BOLT L:20

€ 2.50

0831616064
ref: 7

NUT 6MM

€ 2.50

0920613006
ref: 8

PIN

€ 9.00

1132848B02
ref: 9

HOSE

€ 283.50

0928014011
ref: 10

O RING(D:2.5,ID:13.8)

€ 3.50

0928015007
ref: 11

O RING(D:2.4,ID:15.8)

€ 2.00

0711006165
ref: 12

BOLT

€ 3.00
