WIRING HARNESS

GSXR1100 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

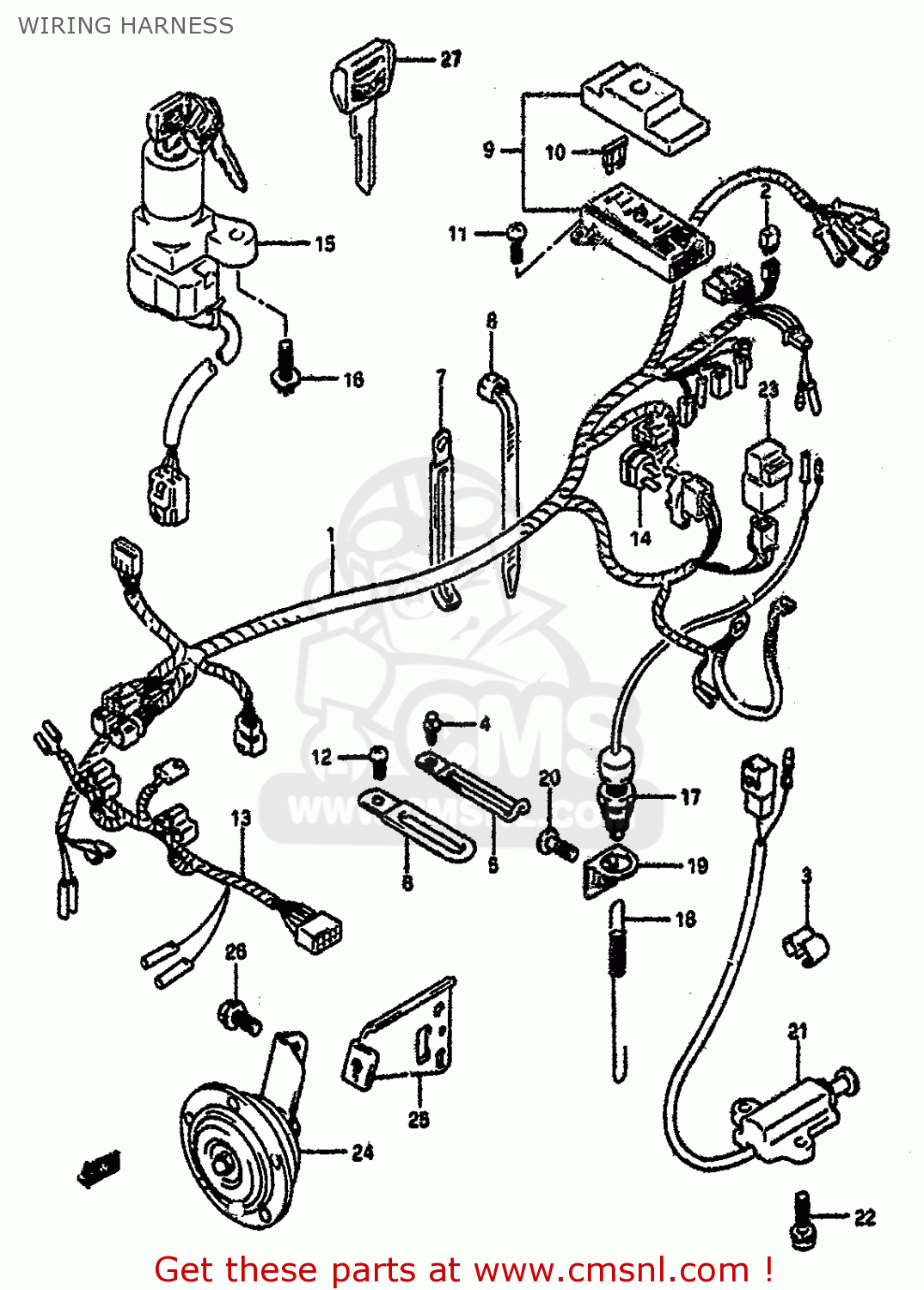

Wiring harness diagram GSXR1100 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

WIRING HARNESS GSXR1100 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
WIRING HARNESS GSXR1100 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
WIRING HARNESS GSXR1100 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
3661041C00
ref: 1-1
HARNESS, WIRING
€ 344.50
1-2
3661041C50
ref: 1-2
E22
HARNESS, WIRING
€ 344.50
1-3
3661041C40
ref: 1-3
E34
HARNESS, WIRING
€ 344.50
1-4
3661041C81
ref: 1-4
MODEL N E24
HARNESS, WIRING
€ 118.50
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
3
0940800002
ref: 3
CLIP
0940800002
€ 2.00
4
0940907305
ref: 4
CLIP
€ 1.50
5-1
0940406403
ref: 5-1
CLAMP
€ 2.50
5-2
0940406404
ref: 5-2
CLAMP
0940406404
€ 3.00
6
0940405403
ref: 6
CLAMP
€ 2.00
7
0940406415
ref: 7
CLAMP
€ 3.00
8-1
0940710404
ref: 8-1
CLAMP(L:100)
0940710404
€ 4.00
8-2
0940711401
ref: 8-2
CLAMP(L:95)
0940711401
€ 2.50
8-3
0940714403
ref: 8-3
CLAMP(L:125)
0940714403
€ 2.50
8-4
0940718402
ref: 8-4
CLAMP(L:165)
0940718402
€ 2.50
8-5
0940725401
ref: 8-5
CLAMP(L:235)
0940725401
€ 4.00
9-1
3674017D00
ref: 9-1
BOX ASSY,FUSE
3674017D00
€ 72.00
9-2
3674005A01
ref: 9-2
E34
BOX ASSEMBLY,FUSE
3674005A01
€ 77.50
10-1
0948110101
ref: 10-1
FUSE(10A)
0948110101
€ 2.50
10-2
0948110101
ref: 10-2
E34
FUSE(10A)
0948110101
€ 2.50
10-3
0948120101
ref: 10-3
FUSE(20A)
0948120101
€ 2.00
11
0214205164
ref: 11
SCREW
0214205164
€ 2.50
12
0214205128
ref: 12
SCREW
0214205128
€ 1.50
13-1
3685641C00
ref: 13-1
WIRE,HEADLAMP LEAD
3685641C00
€ 97.00
13-2
3685641C50
ref: 13-2
E4,E15,E16,E17,E18,E
WIRE, HEADLAMP LEAD
€ 66.50
13-3
3685641C30
ref: 13-3
E34
WIRE, HEADLAMP LEAD
€ 0.00
14
3675005A00
ref: 14
BREAKER ASSY,CIRCUT
3675005A00
€ 36.50
15
3710017C02
ref: 15
LOCK ASSEMBLY,STEERING
3710017C02
€ 134.00
16
0913906026
ref: 16
SCREW(6X18)
0913906026
€ 2.50
17
3774004A10
ref: 17
SWITCH ASSY,STOP LAMP
3774004A10
€ 22.00
18
0944306012
ref: 18
SPRING
0944306012
€ 3.00
19
4325117C01
ref: 19
BRACKET,STOP LAMP SWITCH
4325117C01
€ 9.50
20
0913906027
ref: 20
SCREW(6X12)
0913906027
€ 3.00
21
3784017C01
ref: 21
SWITCH ASSEMBLY,SIDE STAND
3784017C01
€ 67.50
22
0211236165
ref: 22
SCREW
€ 2.50
23
3874024B10
ref: 23
RELAY ASSEMBLY
3874024B10
€ 37.50
24-1
3850041C00
ref: 24-1
HORN ASSEMBLY
€ 45.50
24-2
3850041C30
ref: 24-2
E34
HORN ASSEMBLY
€ 77.00
25
3859041C30
ref: 25
E34
BRACKET, HORN
€ 0.00
26-1
0151706105
ref: 26-1
BOLT
€ 2.50
26-2
0151708128
ref: 26-2
E34
BOLT 8X12
0151708128
€ 3.50
27
3714603A80
ref: 27
OPT
KEY,BLANK
€ 41.50
