FOOTREST

GSXR1100 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

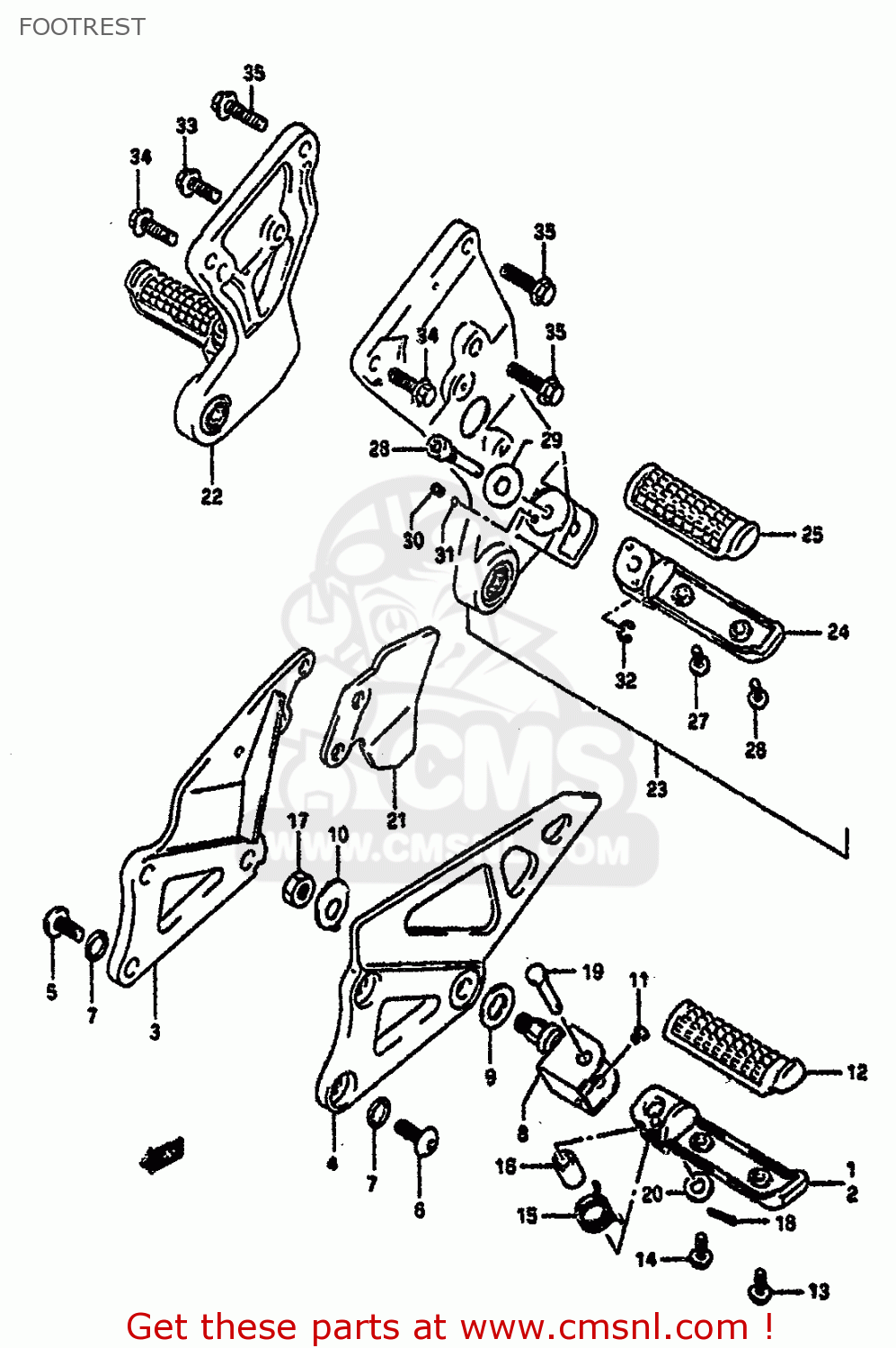

Footrest diagram GSXR1100 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

FOOTREST GSXR1100 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FOOTREST GSXR1100 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
FOOTREST GSXR1100 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
4351140C00
ref: 1
BAR,FOOTREST,R
4351140C00
€ 37.50
2
4352140C00
ref: 2
BAR,FOOTREST,L
4352140C00
€ 37.50
3
4351117D01
ref: 3
BRACKET,FOOTREST,R
4351117D01
€ 133.50
4
4352217D01
ref: 4
BRACKET,FOOTREST,L
4352217D01
€ 131.00
5
4352917D00
ref: 5
BOLT,FOOTREST BRACKET
4352917D00
€ 5.50
6
4352917D10
ref: 6
BOLT,FOOTREST BRACKET
4352917D10
€ 3.50
7
0916410010
ref: 7
WASHER
0916410010
€ 6.50
8
4353040C00
ref: 8
HOLDER,FOOTREST,RIGHT
4353040C00
€ 61.50
9
4321317C01
ref: 9
PLATE,FOOTREST INNER
4321317C01
€ 4.50
10
4321417C01
ref: 10
WASHER,FR FOOTREST
4321417C01
€ 52.50
11
4354140C00
ref: 11
CUSHION,FOOTREST
4354140C00
€ 10.00
12
4355040C11
ref: 12
RUBBER,FOOTREST
4355040C11
€ 16.00
13
0211235168
ref: 13
SCREW
€ 2.50
14
0211275208
ref: 14
SCREW
€ 3.00
15
0944819020
ref: 15
SPRING
0944819020
€ 3.50
16
0918008149
ref: 16
SPACER(8.1X12X22)
0918008149
€ 7.00
17
0831022127
ref: 17
NUT 12MM
€ 3.00
18
0411125158
ref: 18
PIN 20X15
0411125158
€ 1.50
19
0920008057
ref: 19
PIN
0920008057
€ 3.00
20
0916008043
ref: 20
WASHER(8.5X18X1)
0916008043
€ 1.50
21
4358640C01
ref: 21
GUARD,FRONT FOOTREST,RIGHT
4358640C01
€ 50.00
22
4360041C00
ref: 22
FOOTREST ASSY,PILLION,R
€ 265.00
23
4370041C00
ref: 23
FOOTREST ASSY,PILLION,L
€ 243.50
24-1
4361041C00
ref: 24-1
BAR,PILLION FOOTREST,RIGHT
4361041C00
€ 89.00
24-2
4362041C00
ref: 24-2
BAR,PILLION FOOTREST,L
4362041C00
€ 89.00
25
4355040C11
ref: 25
RUBBER,FOOTREST
4355040C11
€ 16.00
26
0211235168
ref: 26
SCREW
€ 2.50
27
0211275208
ref: 27
SCREW
€ 3.00
28
4364240C00
ref: 28
BOLT,PILLION FOOTREST
4364240C00
€ 5.50
29
0916010031
ref: 29
WASHER
0916010031
€ 2.50
30
0944005003
ref: 30
SPRING
0944005003
€ 1.50
31
0611107004
ref: 31
BALL
0611107004
€ 1.50
32
0833211068
ref: 32
E RING 6MM
0833211068
€ 2.00
33
0151708205
ref: 33
BOLT
€ 3.00
34
0151708254
ref: 34
BOLT
0151708254
€ 2.50
35
0151708304
ref: 35
BOLT
0151708304
€ 3.00
