TAIL LAMP - LICENSE LAMP

GSXR1100 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

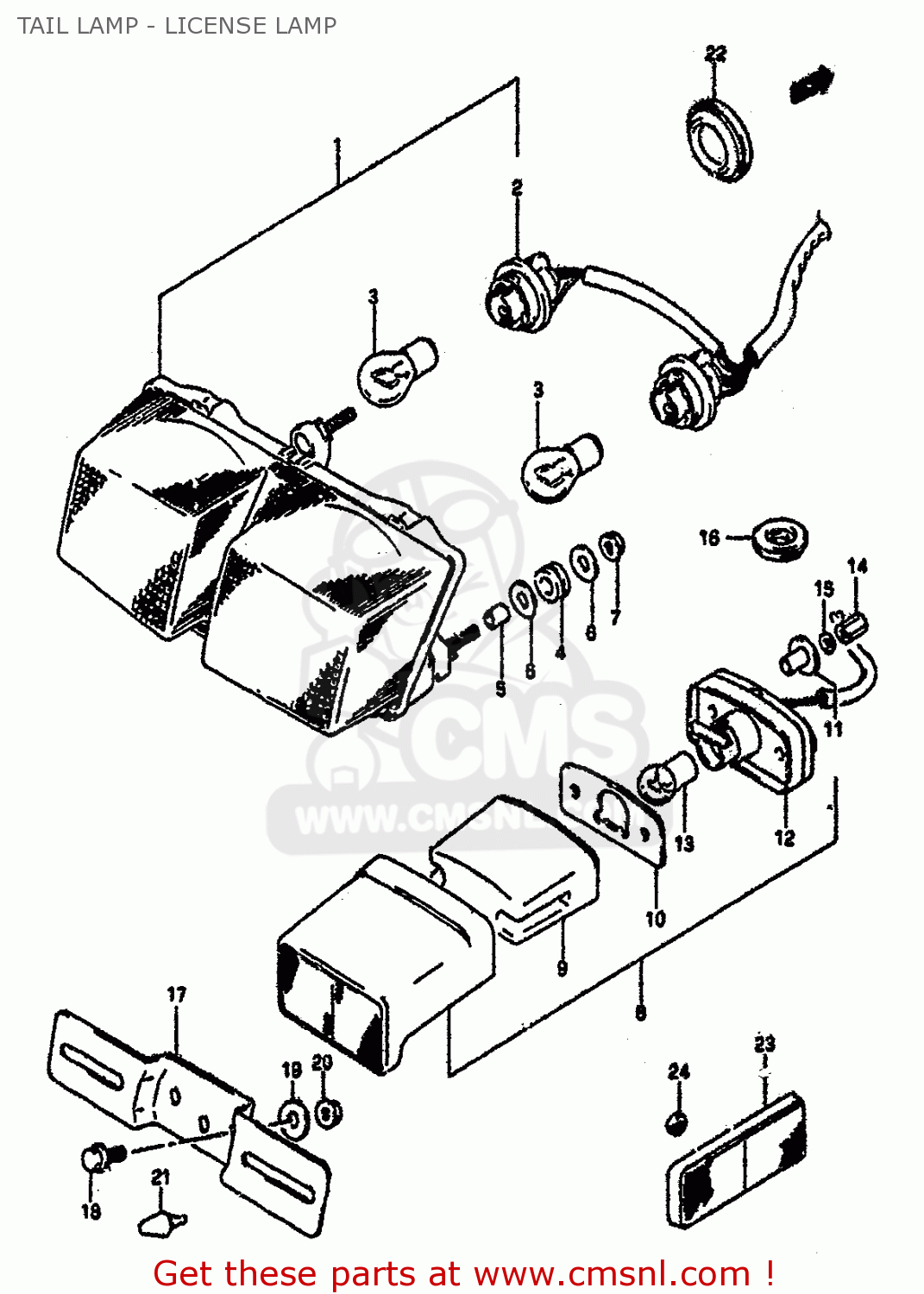

Tail lamp - license lamp diagram GSXR1100 1992 (N) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

3571041C00
ref: 1

LAMP,REAR COMB

€ 219.50

3571841C00
ref: 2

SOCKET ASSEMBLY

€ 42.00

0947112083
ref: 3

BULB(12V21/5W)

€ 6.00

0932008048
ref: 4

CUSHION

€ 3.00

0918006044
ref: 5

SPACER (6.1X8X9.5)

€ 2.50

0916006056
ref: 6

WASHER(6.5X18X1)

€ 2.00

0831626066
ref: 7

NUT

€ 2.00

3591017C10
ref: 8

LAMP ASSY,LICE

€ 142.50

3591238A20
ref: 9

LENS

€ 13.00

3591338A30
ref: 10

GASKET,LICENSE LAMP (NAS)

€ 2.00

3576617C00
ref: 11

SPACER

€ 3.00

3591517C10
ref: 12

HOUSING

€ 46.50

0947112140
ref: 13

BULB(12V5W,BF150-40160A)

€ 4.00

0914004006
ref: 14

NUT

€ 4.00

0832121046
ref: 15

LOCK WASHER

€ 2.00

0930807013
ref: 16

GROMMET

€ 3.50

3592717C00
ref: 17

BRACKET,LICENSE PLATE

€ 10.00

0151706164
ref: 18

BOLT

€ 2.50

0916006059
ref: 19

WASHER,COVER,FRONT

€ 2.00

0831626066
ref: 20

NUT

€ 2.00

0932106025
ref: 21

CUSHION

€ 2.00

0925030010
ref: 22

CAP OD:40

€ 3.50

3595043431
ref: 23
E39

REFLEX REFLECTOR,FR SIDE

€ 12.00

0831022055
ref: 24
E39

NUT 5MM

€ 2.00
