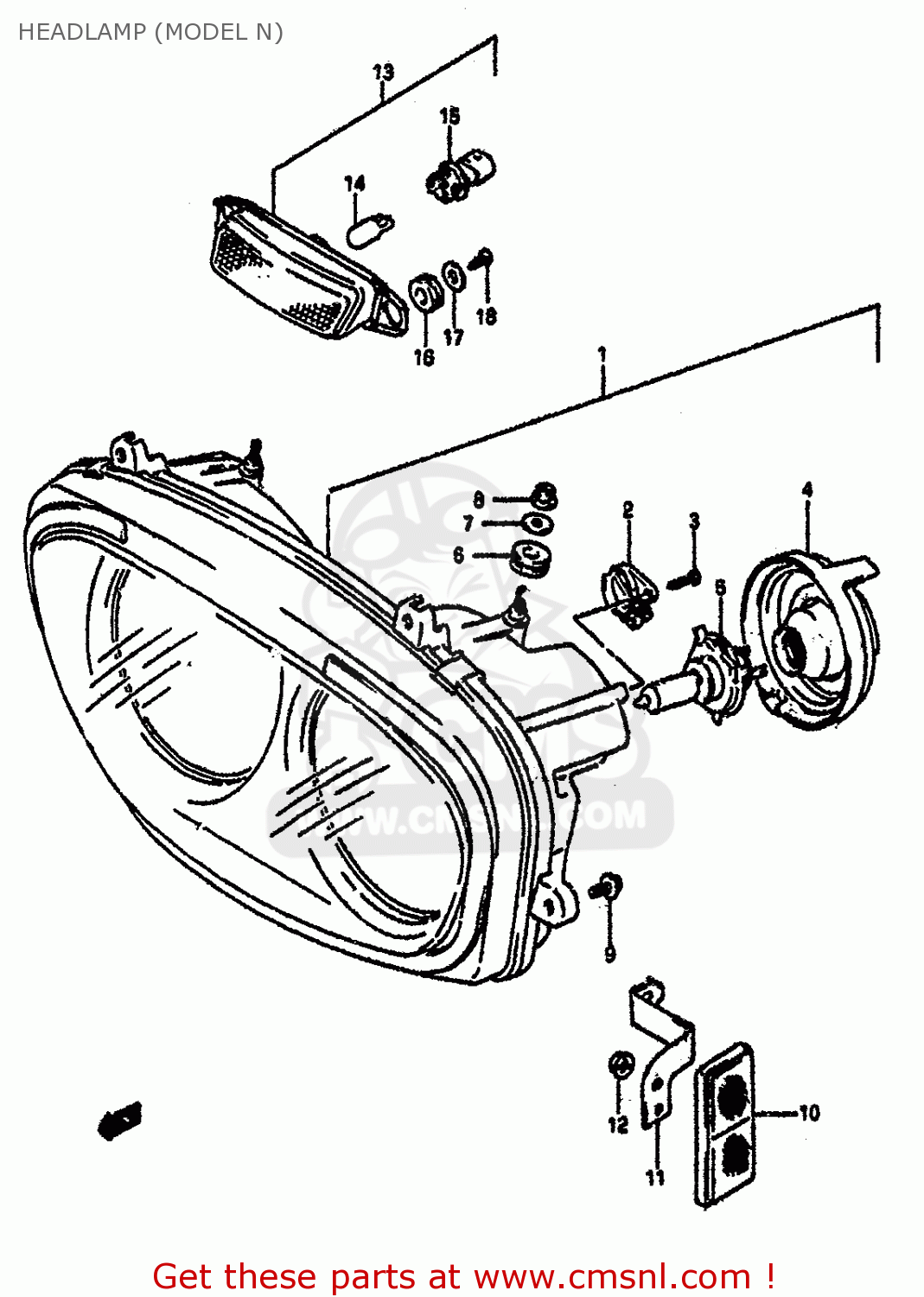

HEADLAMP (MODEL N)

ref

part #

description

quantity

1-1

3510041C00999
ref: 1-1

HEADLAMP ASSY

€ 542.00

1-2

3510041C40999
ref: 1-2
E4

HEADLAMP ASSY

€ 0.00

1-3

3510041C10999
ref: 1-3
E15

HEADLAMP ASSY

€ 0.00

1-4

3510041C50999
ref: 1-4
E16,E17,E18,E21,E22,

HEADLAMP ASSY

€ 625.00

1-5

3510041C20999
ref: 1-5
E25

HEADLAMP ASSY

€ 587.50

1-6

3510041C30999
ref: 1-6
E34

HEADLAMP ASSY

€ 761.00

2

3525033C10
ref: 2

GEAR UNIT ASSY,LWR

€ 7.50

3

0351104165
ref: 3

SCREW

€ 1.50

4-1

3517341C00
ref: 4-1

COVER,SOCKET

€ 14.00

4-2

3517341C00
ref: 4-2
E4,E16,E17,E18,E21,E

COVER,SOCKET

€ 14.00

4-3

3517341C50
ref: 4-3
E4,E16,E17,E18,E21,E

COVER, SOCKET RH

€ 12.50

5-1

0947112060
ref: 5-1

BULB(12V60/55W,H4)

€ 8.00

5-2

0947112060
ref: 5-2
E4,E25

BULB(12V60/55W,H4)

€ 8.00

5-3

0947112061
ref: 5-3
E16,E17,E18,E21,E22,

BULB (12V, 60/55W, H4)

€ 0.00

5-4

0947112122
ref: 5-4
E4,E16,E17,E18,E21,E

BULB(12V55W/H1/P14.5S/OSRA,PHI

€ 4.00

5-5

0947112020
ref: 5-5
E34

BULB(12V35/35W)

€ 108.50

6

0932009034
ref: 6

GROMMET

€ 4.50

7

0916006092
ref: 7

WASHER

€ 2.50

8

0831616064
ref: 8

NUT 6MM

€ 2.50

9

0211275165
ref: 9

SCREW

€ 2.50

10

3595014A00
ref: 10
E39

REFLECTOR,REFLEX FR

€ 15.00

11-1

3595617D00
ref: 11-1
E39

BRACKET,FR SIDE RR,R

€ 6.50

11-2

3595717D00
ref: 11-2
E39

BRACKET,FR SIDE RR,L

€ 6.50

12

0836115055
ref: 12
E39

NUT

€ 2.50

13

3611041C01
ref: 13

LAMP ASSY,FR POSITION

€ 50.50

14

0947112081
ref: 14

BULB(12V5W)

€ 1.50

15

3611841C00
ref: 15

SOCKET ASSY

€ 10.50

16

0932008051
ref: 16

CUSHION

€ 7.50

17

0916004014
ref: 17

WASHER (4X16X1.2)

€ 1.50

18

0354104105
ref: 18

SCREW

€ 1.50

all assemblies
