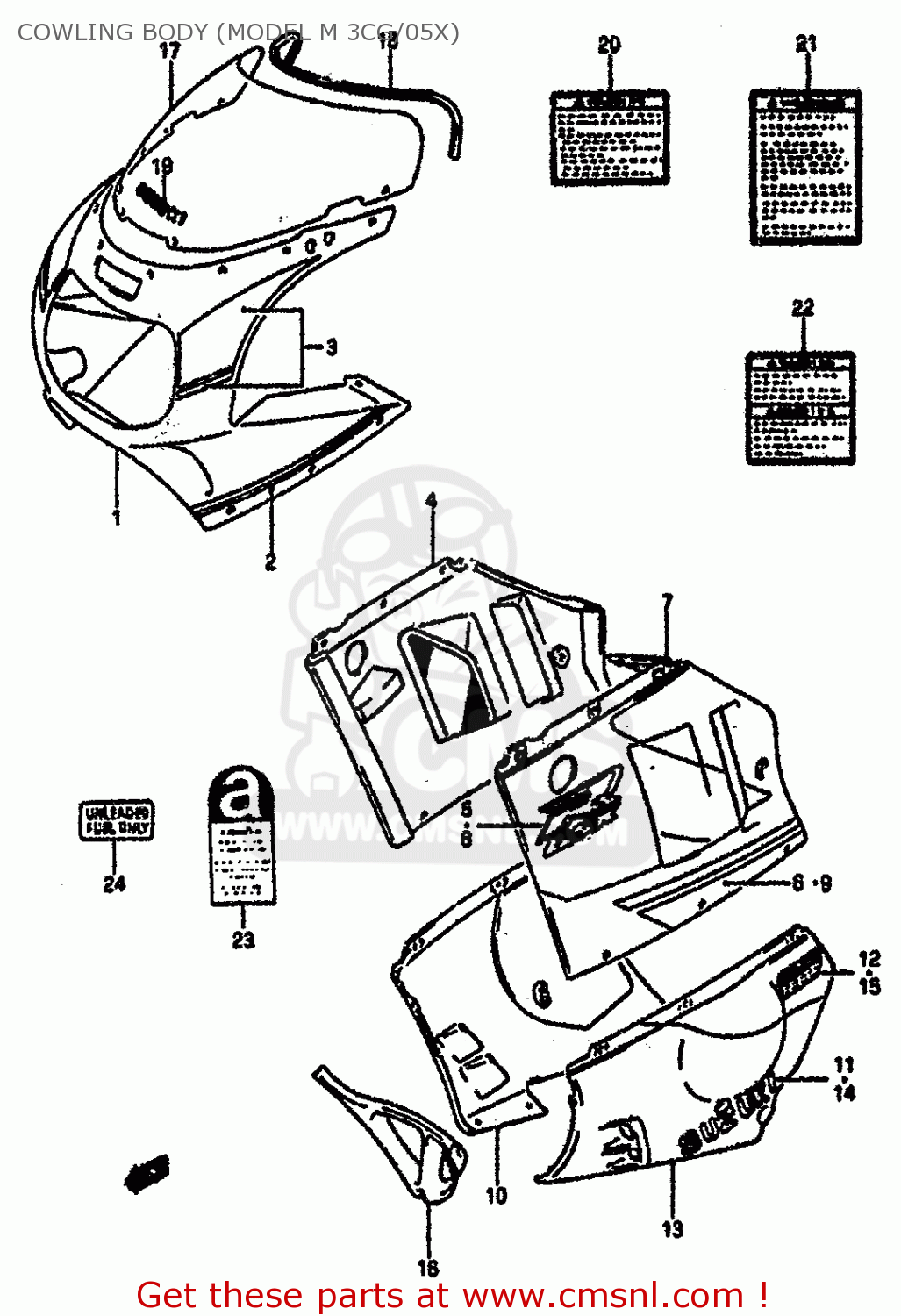

COWLING BODY (MODEL M 3CG/05X)

ref

part #

description

quantity

1-1

9440041C5033J
ref: 1-1
FOR 3CG

BODY ASSY,COWLING

€ 787.50

1-2

9440041C5036X
ref: 1-2
E2,E4,E18,FOR 05X

BODY ASSY,COWLING

€ 749.50

2-1

6827041C20H09
ref: 2-1

TAPE SET, SIDE

€ 29.50

2-2

6827041C20H16
ref: 2-2
E2,E4,E18

TAPE SET,COWL SIDE

€ 33.50

3-1

6828041C10H09
ref: 3-1

TAPE SET, FRONT

€ 31.00

3-2

6828041C10H16
ref: 3-2
E2,E4,E18

TAPE SET, FRONT

€ 28.50

4-1

9443041C403CG
ref: 4-1

COVER,COWLING SIDE,R

€ 481.00

4-2

9443041C6005X
ref: 4-2
E2,E4,E18

COVER, COWLING SIDE RH (BLACK/GRAY)

€ 406.50

5-1

6868118D00H11
ref: 5-1

EMBLEM,COWLING SIDE

€ 28.00

5-2

6868118D10H61
ref: 5-2
E2,E4,E18

EMBLEM,COWLING SIDE

€ 30.50

6-1

6868541C00H19
ref: 6-1

TAPE, SIDE RH

€ 25.00

6-2

6868541C00H21
ref: 6-2
E2,E4,E18

TAPE, SIDE RH

€ 23.50

7-1

9444041C403CG
ref: 7-1

COVER,COWLING SIDE,L

€ 564.00

7-2

9444041C6005X
ref: 7-2
E2,E4,E18

COVER, COWLING SIDE LH (BLACK/GRAY)

€ 610.00

8-1

6868118D00H11
ref: 8-1

EMBLEM,COWLING SIDE

€ 28.00

8-2

6868118D10H61
ref: 8-2
E2,E4,E18

EMBLEM,COWLING SIDE

€ 30.50

9-1

6869541C00H19
ref: 9-1

TAPE, SIDE LH

€ 21.00

9-2

6869541C00H21
ref: 9-2
E2,E4,E18

TAPE, SIDE LH

€ 28.50

10

9447041C603CH
ref: 10

COWLING,UNDER,R

€ 590.00

11

681113433013L
ref: 11

EMBLEM,SUZUKI

€ 16.00

12

6868127B30H12
ref: 12

EMBLEM,SACS

€ 11.50

13

9448041C603CH
ref: 13

COWLING,UNDER,L

€ 630.00

14

6818136A0013L
ref: 14

EMBLEM

€ 14.50

15

6868127B30H12
ref: 15

EMBLEM,SACS

€ 11.50

16

9449817D0133J
ref: 16

COWLING,UNDER,CENTER (B

€ 80.50

17-1

9461041C000JW
ref: 17-1
94610-41C00

SCREEN SET,WIND

€ 387.50

17-2

9461041C100JW
ref: 17-2
E17, 94610-41C10

SCREEN SET, WIND

€ 0.00

18-1

9463141C00
ref: 18-1
94631-18D00,L:740 66

MOLDING

€ 12.50

18-2

9463141C10
ref: 18-2
E17, 94631-49310,L:1

MOLDING, SCREEN

€ 14.00

19

6818212C000JW
ref: 19

EMBLEM,SUZUKI(WHITE)

€ 25.50

20-1

6831940C00
ref: 20-1

LABEL

€ 8.00

20-2

6831940C20
ref: 20-2
E22,E39

LABEL, WARNING SAFETY

€ 8.00

20-3

6831940C30
ref: 20-3
E4,E21

LABEL, WARNING SAFETY

€ 8.50

20-4

6831940C40
ref: 20-4
E34

LABEL, WARNING SAFETY

€ 8.00

20-5

6831940C51
ref: 20-5
E53

LABEL

€ 8.00

21-1

6861248B00
ref: 21-1

LABEL (WARNING SCREEN)

€ 6.50

21-2

6861248B10
ref: 21-2
E4

LABEL (WARNING SCREEN)

€ 6.50

22-1

6861340C11
ref: 22-1

LABEL (WARNING)

€ 8.50

22-2

6861340C00
ref: 22-2
E4,E21,E34,E53

LABEL (WARNING)

€ 7.50

23

1196782000
ref: 23
E2

LABEL,ASBESTOS WARNING

€ 2.00

24

8693273060
ref: 24
E24

LABEL,FUEL CAUTION

€ 4.00

all assemblies
