CARBURETOR (MODEL W)

GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

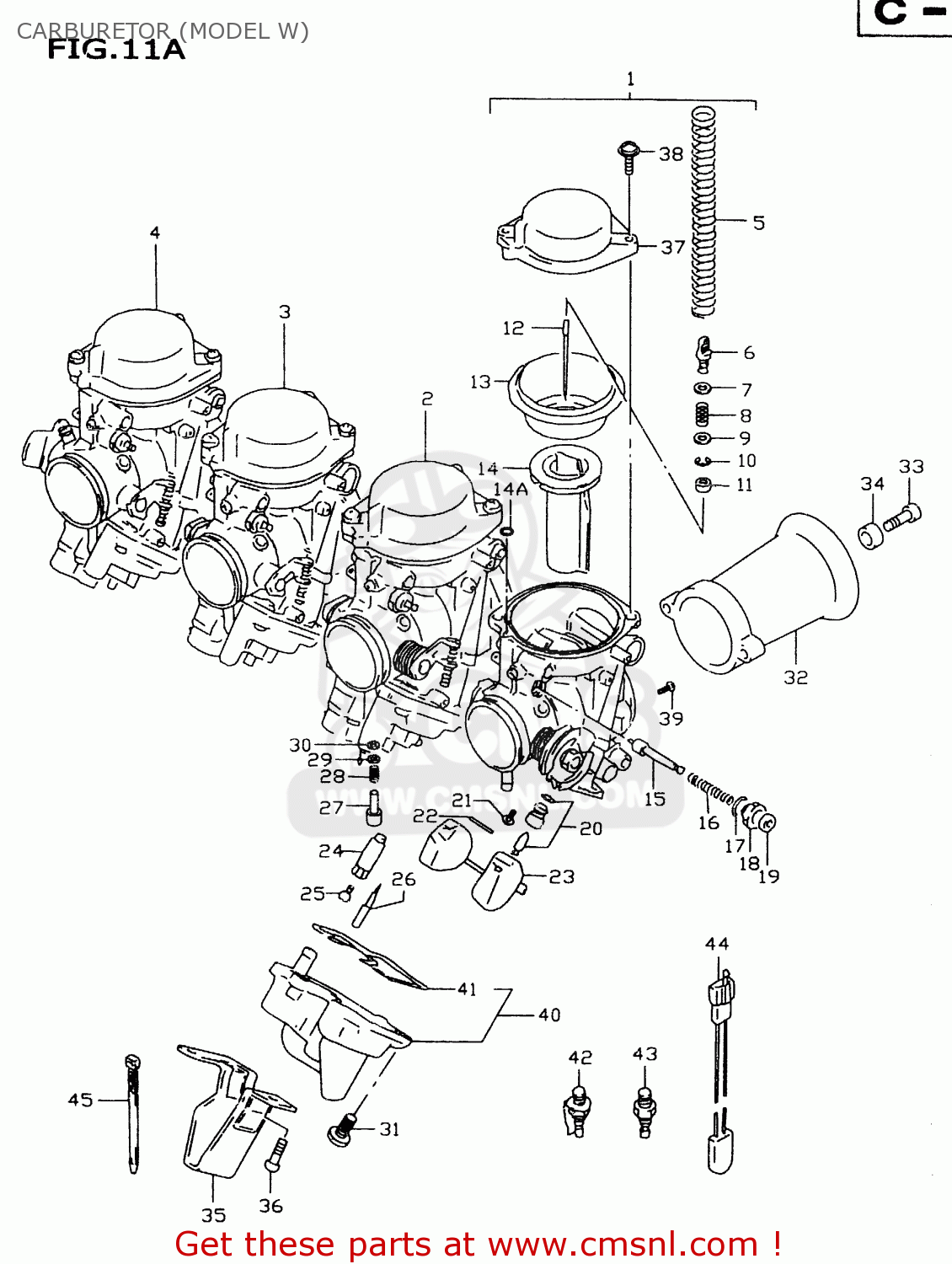

Carburetor (model w) diagram GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

CARBURETOR (MODEL W) GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)
CARBURETOR (MODEL W) GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)
CARBURETOR (MODEL W) GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
1320134E60
ref: 1-1
CARBURETOR ASSY,L
1320134E60
€ 712.50
1-2
1320134E70
ref: 1-2
E18, E39
CARBURETOR ASSEMBLY,LEFT
€ 0.00
1-3
1320134E80
ref: 1-3
E4, E22
CARBURETOR ASSY,L
€ 0.00
1-4
1320134EA0
ref: 1-4
E24
CARBURETOR ASSY, LH
€ 0.00
2-1
1320234E60
ref: 2-1
CARBURETOR ASSY,ML
1320234E60
€ 712.50
2-2
1320234E70
ref: 2-2
E18, E39
CARBURETOR ASSEMBLY,MIDDLE,LEFT
€ 0.00
2-3
1320234E80
ref: 2-3
E4, E22
CARBURETOR ASSY, ML
€ 0.00
2-4
1320234EA0
ref: 2-4
E24
CARBURETOR ASSY, ML
€ 0.00
3-1
1320334E60
ref: 3-1
CARBURETOR ASSY,MR
1320334E60
€ 712.50
3-2
1320334E70
ref: 3-2
E18, E39
CARBURETOR ASSY,MR
€ 0.00
3-3
1320334E80
ref: 3-3
E4, E22
CARBURETOR ASSY,MR
€ 0.00
3-4
1320334EA0
ref: 3-4
E24
CARBURETOR ASSY, MR
€ 0.00
4-1
1320434E60
ref: 4-1
CARBURETOR ASSY,R
1320434E60
€ 712.50
4-2
1320434E70
ref: 4-2
E18, E39
CARBURETOR ASSY,R
€ 0.00
4-3
1320434E80
ref: 4-3
E4, E22
CARBURETOR ASSY,R
€ 0.00
4-4
1320434EA0
ref: 4-4
E24
CARBURETOR ASSY, RH
€ 0.00
5
1357334E00
ref: 5
SPRING
1357334E00
€ 7.50
6
1341833E00
ref: 6
HOLDER
1341833E00
€ 4.50
7
0928005004
ref: 7
O RING(D:1.9,ID:4.8)
0928005004
€ 2.00
8
1348133E00
ref: 8
SPRING
1348133E00
€ 3.00
9
1338244030
ref: 9
WASHER
1338244030
€ 3.50
10
1339417E60
ref: 10
E RING,MULTIPLE JET NOZZLE
1339417E60
€ 1.50
11
1338733E00
ref: 11
RING
€ 5.00
12-1
1338334E60
ref: 12-1
NEEDLE,JET
€ 15.00
12-2
1338334E80
ref: 12-2
E4, E22
NEEDLE,JET
€ 12.50
13
1350717C01
ref: 13
DIAPHRAGM
1350717C01
€ 24.50
14
1350134E00
ref: 14
VALVE,PISTON
1350134E00
€ 87.50
14A
1329533010
ref: 14A
O RING
1329533010
€ 4.50
15
1341105300
ref: 15
PLUNGER
1341105300
€ 23.50
16
1341726D00
ref: 16
SPRING
1341726D00
€ 5.50
17
1327847090
ref: 17
O RING
1327847090
€ 2.00
18
1341844080
ref: 18
GUIDE SCREW,PLUNGER
1341844080
€ 8.00
19
1368231210
ref: 19
CAP,STARTER VALVE
1368231210
€ 5.00
20
1337033E80
ref: 20
VALVE ASSY,NEEDLE(NI)
1337033E80
€ 61.00
21
1360205A10
ref: 21
SCREW
1360205A10
€ 4.00
22
1325492910
ref: 22
PIN,FLOAT
1325492910
€ 3.00
23
1325033E00
ref: 23
FLOAT ASSY
1325033E00
€ 41.00
24
1338533E00
ref: 24
HOLDER,JET
1338533E00
€ 25.00
25-1
0949127008
ref: 25-1
LH, RH
JET,MAIN(135)
0949127008
€ 11.50
25-2
0949126013
ref: 25-2
ML, MR
JET,MAIN (132.5)
0949126013
€ 18.50
26
0949212008
ref: 26
JET,PILOT(12.5)
0949212008
€ 14.00
27-1
1327933E00
ref: 27-1
LH, RH
ADJUSTER
1327933E00
€ 9.50
27-2
1327933E00
ref: 27-2
ML, MR
ADJUSTER
1327933E00
€ 9.50
27-3
1327933E00
ref: 27-3
E4, E22 LH, RH
ADJUSTER
1327933E00
€ 9.50
27-4
1327933E00
ref: 27-4
E4, E22 ML, MR
ADJUSTER
1327933E00
€ 9.50
28
1326848700
ref: 28
SPRING,THROTTLE SCREW
1326848700
€ 3.50
29
1329129900
ref: 29
WASHER
1329129900
€ 2.00
30
1329529900
ref: 30
O RING,PILOT AIR SCREW
1329529900
€ 4.00
31
0211205127
ref: 31
SCREW
0211205127
€ 2.50
32
1366734E60
ref: 32
FUNNEL
1366734E60
€ 32.50
33
1360218E20
ref: 33
SCREW
€ 4.00
34
1366334E60
ref: 34
RING
€ 3.50
35
1345434E60
ref: 35
BRACKET
€ 15.00
36
0211204107
ref: 36
SCREW
0211204107
€ 2.00
37-1
1350234E00
ref: 37-1
COVER ASSY,DIAPHRAGM
1350234E00
€ 43.50
37-2
1350234E20
ref: 37-2
E4, E22
COVER ASSY,DIAPHRAGM
€ 30.50
38
1324733E00
ref: 38
SCREW
1324733E00
€ 3.00
39
0949127008
ref: 39
JET,MAIN(135)
0949127008
€ 11.50
40-1
1324534E00
ref: 40-1
BODY ASSY,FLOAT,L
€ 57.00
40-2
1324534E00
ref: 40-2
BODY ASSY,FLOAT,L
€ 57.00
40-3
1324534E10
ref: 40-3
BODY ASSY,FLOAT,R
€ 57.00
40-4
1324534E10
ref: 40-4
BODY ASSY,FLOAT,R
€ 57.00
41
1325833E00
ref: 41
O RING
1325833E00
€ 9.50
42
1365025E01
ref: 42
E2
HEATER ASSY,CARBURETOR(15W)
1365025E01
€ 35.00
43
1365125E01
ref: 43
E2 -> 13650-25E01
HEATER, CARB.
€ 35.00
44
1365525E00
ref: 44
E2
THERMO SWITCH,CARB HEATER
1365525E00
€ 36.00
45
0940714403
ref: 45
E2 <- 09407-11401
CLAMP(L:125)
0940714403
€ 2.50
