OIL COOLER

GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

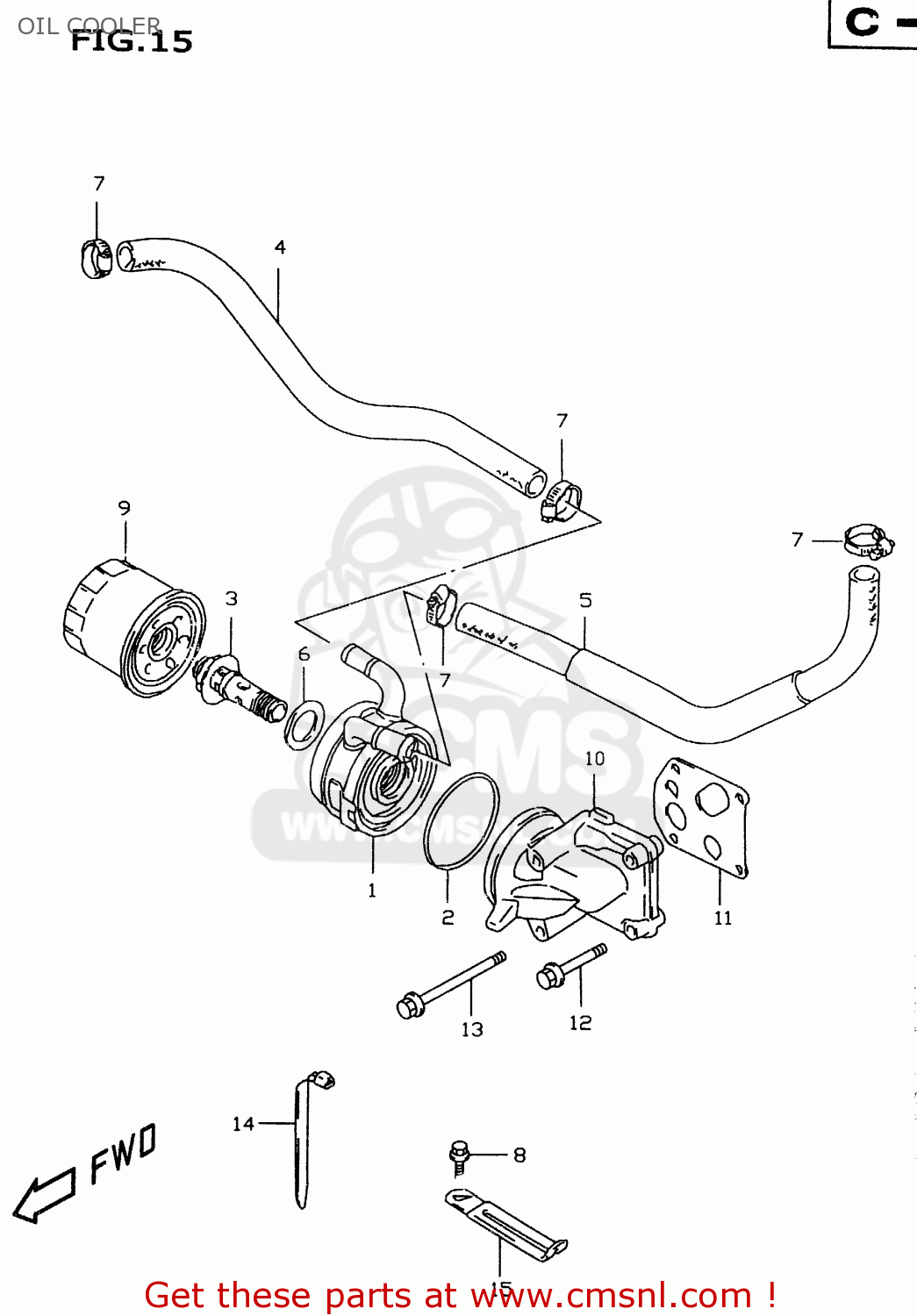

Oil cooler diagram GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

OIL COOLER GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

OIL COOLER GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

1660033E00
ref: 1

COOLER ASSEMBLY,OIL

€ 422.00

2

0928064003
ref: 2

O RING(D:3.1,ID:63.9)

€ 5.00

3

1659133C00
ref: 3

BOLT,OIL COOLER UNION

€ 46.00

4

1646133E00
ref: 4

HOSE,OIL COOLER WATER IN

€ 19.50

5

1647133E00
ref: 5

HOSE,OIL COOLER WATER OUT

€ 18.50

6

0822122355
ref: 6

SHIM

€ 2.00

7

0940222511
ref: 7

CLAMP

€ 6.00

8

0910306083
ref: 8
EXCEPT E18, E39

BOLT 6X12

€ 2.50

9

1651034E00
ref: 9

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

10

1651534E00
ref: 10

HOLDER,OIL FILTER

€ 73.50

11

1651633E00
ref: 11

GASKET,OIL FILTER HOLDER

€ 7.50

12

0910306194
ref: 12

BOLT(6X40)

€ 2.00

13

0910306195
ref: 13

BOLT(6X65)

€ 3.50

14

0940725401
ref: 14

CLAMP(L:235)

€ 4.00

15

0940406433
ref: 15
EXCEPT E18, E39

CLAMP(L:80)

€ 3.00
