CYLINDER HEAD

GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

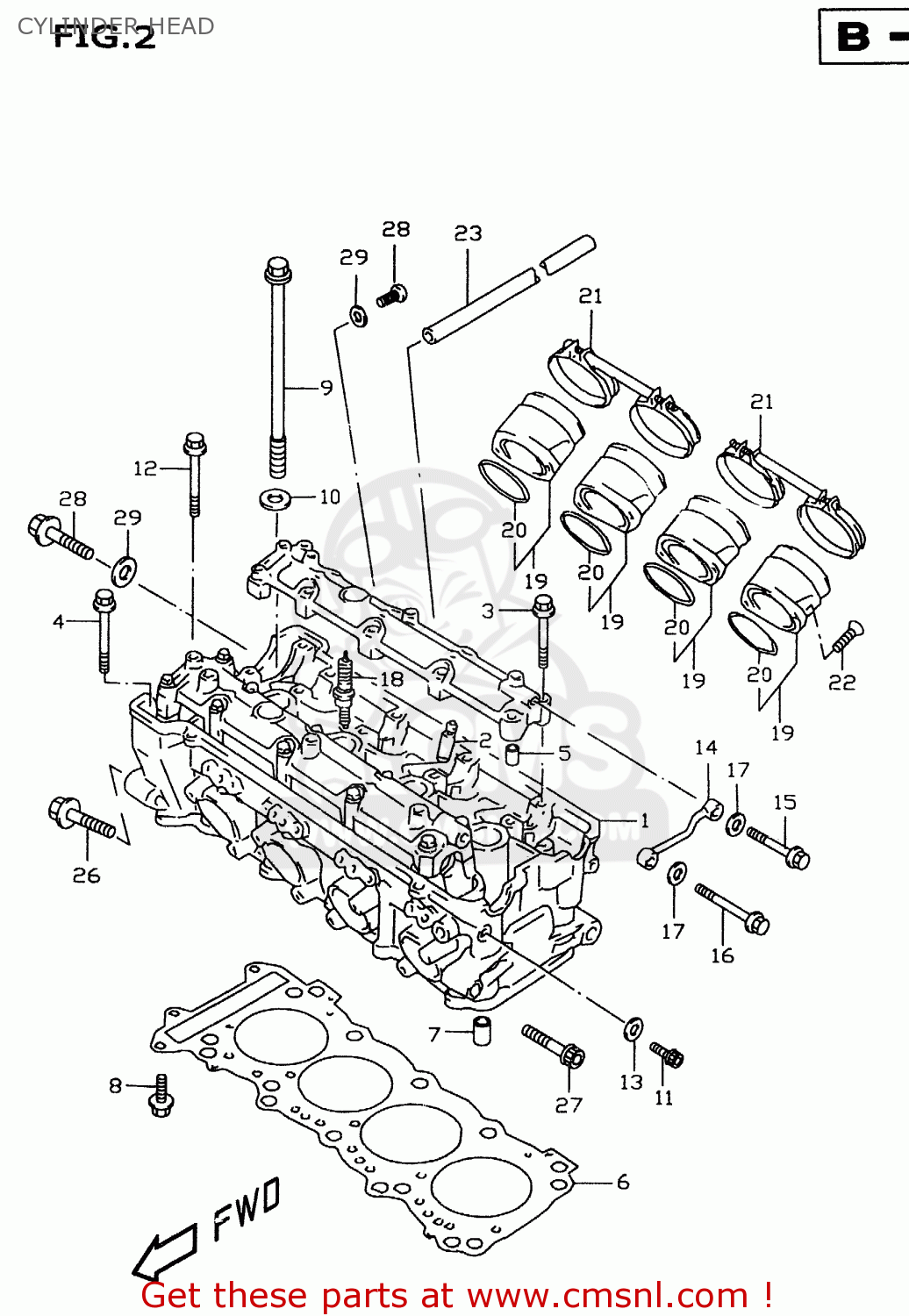

Cylinder head diagram GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

CYLINDER HEAD GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)
CYLINDER HEAD GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)
CYLINDER HEAD GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
1110034820
ref: 1-1
MODEL V
HEAD SET,CYLINDER
1110034820
€ 1,856.50
1-2
1110034830
ref: 1-2
MODEL V E18, E39
HEAD SET,CYLINDER
€ 1,569.00
1-3
1110034840
ref: 1-3
MODEL W
HEAD SET,CYLINDER
1110034840
€ 1,856.50
1-4
1110034850
ref: 1-4
MODEL W E18, E39
HEAD SET,CYLINDER
€ 1,569.00
2
1111518D72
ref: 2
GUIDE,VALVE
1111518D72
€ 18.50
3
0910306026
ref: 3
BOLT(6X39)
0910306026
€ 2.00
4
0910306165
ref: 4
BOLT(6X45)
0910306165
€ 2.50
5
0920608007
ref: 5
PIN(6.2X8X16)
0920608007
€ 2.50
6
1114134E00
ref: 6
GASKET,CYLINDER HEAD
1114134E00
€ 76.00
7
0421111169
ref: 7
PIN
0421111169
€ 2.00
8
0155006303
ref: 8
BOLT
0155006303
€ 2.50
9
0910310272
ref: 9
BOLT(10X160)
0910310272
€ 14.00
10
0916010082
ref: 10
WASHER(10.5X19X2)
0916010082
€ 2.00
11
0712006123
ref: 11
BOLT
€ 3.50
12
0712006503
ref: 12
BOLT,CYL.OIL P
€ 2.50
13
0916806023
ref: 13
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
14
1113133E00
ref: 14
PIPE,CYLINDER HEAD OIL
1113133E00
€ 33.00
15
0155006353
ref: 15
BOLT
0155006353
€ 2.50
16
0155006453
ref: 16
BOLT (6X45)
€ 2.50
17
0832201063
ref: 17
WASHER
0832201063
€ 2.00
18-1
0948200458
ref: 18-1
PLUG,SPARK(NGK CR9E)
0948200458
€ 8.50
18-2
0948200459
ref: 18-2
PLUG,SPARK(U27ESR-N)
0948200459
€ 8.50
18-3
0948200456
ref: 18-3
OPT
PLUG,SPARK(CR8E)
0948200456
€ 7.00
18-4
0948200460
ref: 18-4
OPT
PLUG,SPARK(CR10E)
0948200460
€ 8.50
18-5
0948200457
ref: 18-5
OPT
PLUG,SPARK(U24ESR-N)
0948200457
€ 7.00
18-6
0948200461
ref: 18-6
OPT
PLUG,SPARK(U31ESR-N)
€ 8.50
19
1310134E00
ref: 19
PIPE ASSY,INTAKE
1310134E00
€ 49.50
20
0928044007
ref: 20
O RING(D:2.4,ID:44)
0928044007
€ 15.00
21
1317034E00
ref: 21
CLAMP COMP,INTAKE PIPE
1317034E00
€ 27.00
22-1
0912006010
ref: 22-1
MODEL V
SCREW
0912006010
€ 3.00
22-2
0911906092
ref: 22-2
MODEL W
BOLT(6X16)
0911906092
€ 2.00
23
0935550105600
ref: 23
L:600->340
HOSE(5X10X600)
€ 7.50
24
0712010453
ref: 24
BOLT
0712010453
€ 3.50
25
0712010553
ref: 25
BOLT
0712010553
€ 3.50
26
1116133E00
ref: 26
BOLT,CYL HEAD SIDE FACE
1116133E00
€ 8.00
27
1119113E00
ref: 27
WASHER,HEAD COVER
1119113E00
€ 4.00
28
0211206103
ref: 28
SCREW
0211206103
€ 1.50
29
0916806004
ref: 29
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
