CRANKCASE

GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

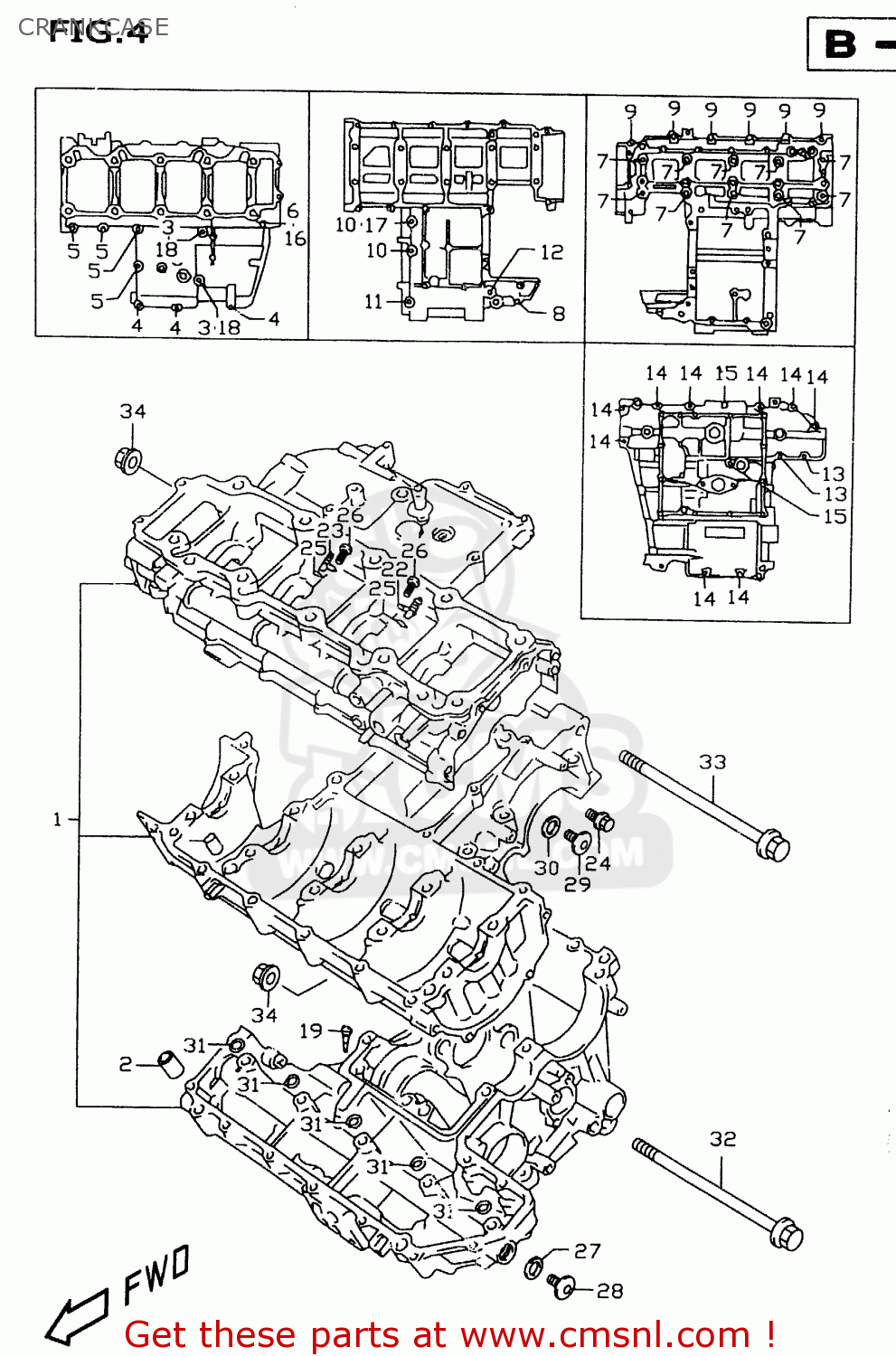

Crankcase diagram GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

CRANKCASE GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)
CRANKCASE GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)
CRANKCASE GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
1130134840
ref: 1-1
MODEL V ~F.NO. JS1AD
CRANKCASE SET
1130134840
€ 1,990.50
1-2
1130134841
ref: 1-2
MODEL V F.NO. JS1AD1
CRANKCASE SET
€ 1,990.50
1-3
1130134850
ref: 1-3
MODEL V E18, E39 ~F.
CRANKCASE SET
€ 1,990.50
1-4
1130134851
ref: 1-4
MODEL V E18, E39 F.N
CRANKCASE SET
€ 1,990.50
1-5
1130133850
ref: 1-5
MODEL W
CRANKCASE SET
€ 1,990.50
1-6
1130133860
ref: 1-6
MODEL W E18, E39
CRANKCASE SET
€ 1,990.50
2-1
1131933E00
ref: 2-1
MODEL V
PIN,CRANKCASE
1131933E00
€ 4.00
2-2
1131933E50
ref: 2-2
MODEL W
PIN,CRANKCASE
1131933E50
€ 4.00
3
0910608139
ref: 3
BOLT(8X120)
0910608139
€ 10.00
4
0154706353
ref: 4
BOLT
0154706353
€ 3.00
5
0154706403
ref: 5
BOLT
0154706403
€ 3.00
6
0154706803
ref: 6
BOLT
€ 3.50
7
0910309012
ref: 7
BOLT(9X95)
0910309012
€ 7.00
8
0154706453
ref: 8
BOLT
0154706453
€ 3.00
9
0154706503
ref: 9
BOLT
0154706503
€ 3.50
10
0712008603
ref: 10
BOLT
0712008603
€ 4.50
11-1
0713008553
ref: 11-1
MODEL V
BOLT
0713008553
€ 3.50
11-2
0712008603
ref: 11-2
MODEL W
BOLT
0712008603
€ 4.50
12
0713008803
ref: 12
BOLT
€ 3.00
13
0154706303
ref: 13
BOLT,G/S SWITC
0154706303
€ 3.00
14
0154706403
ref: 14
BOLT
0154706403
€ 3.00
15
0154706903
ref: 15
BOLT
€ 3.00
16
0916806024
ref: 16
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
17
0916808016
ref: 17
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
18
0916808016
ref: 18
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
19
0949328012
ref: 19
JET(140)
€ 8.00
20
1222817E000D0
ref: 20
SEE ILLUSTRATION ON
BEARING,CRANK THRUST(GREEN)
1222817E000D0
€ 8.00
21-1
1222817E000A0
ref: 21-1
SEE ILLUSTRATION ON
BEARING,CRANK THRUST(RED)
1222817E000A0
€ 7.50
21-2
1222817E000B0
ref: 21-2
BEARING,CRANK THRUST(BLACK)
1222817E000B0
€ 7.50
21-3
1222817E000C0
ref: 21-3
BEARING,CRANK THRUST(BLUE)
1222817E000C0
€ 7.50
21-4
1222817E000D0
ref: 21-4
BEARING,CRANK THRUST(GREEN)
1222817E000D0
€ 8.00
21-5
1222817E000E0
ref: 21-5
BEARING,CRANK THRUST(YELLOW)
1222817E000E0
€ 7.50
21-6
1222817E000F0
ref: 21-6
BEARING,CRANK THRUST(WHITE)
1222817E000F0
€ 7.50
22
1139034E00
ref: 22
JET,PISTON COOLINGR
1139034E00
€ 13.50
23
1139034E10
ref: 23
JET,PISTON COOLING
1139034E10
€ 13.50
24
1139333E01
ref: 24
JET,MAGNETO COOLING
1139333E01
€ 14.00
25
0928004004
ref: 25
O RING(D:1.2,ID:4)
0928004004
€ 2.00
26
0910606075
ref: 26
BOLT(6X12)
0910606075
€ 2.50
27
0916816002
ref: 27
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
28
0924816010
ref: 28
PLUG
0924816010
€ 4.50
29
0924814005
ref: 29
PLUG,14X12
0924814005
€ 5.00
30
0916814002
ref: 30
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
31
0928008012
ref: 31
O RING(D:1.9,ID:7.8)
0928008012
€ 4.00
32
0910310145
ref: 32
BOLT(10X205)
0910310145
€ 13.00
33
0910310219
ref: 33
BOLT(10X185)
0910310219
€ 16.50
34
0915910058
ref: 34
NUT
0915910058
€ 4.00
