WATER PUMP

GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

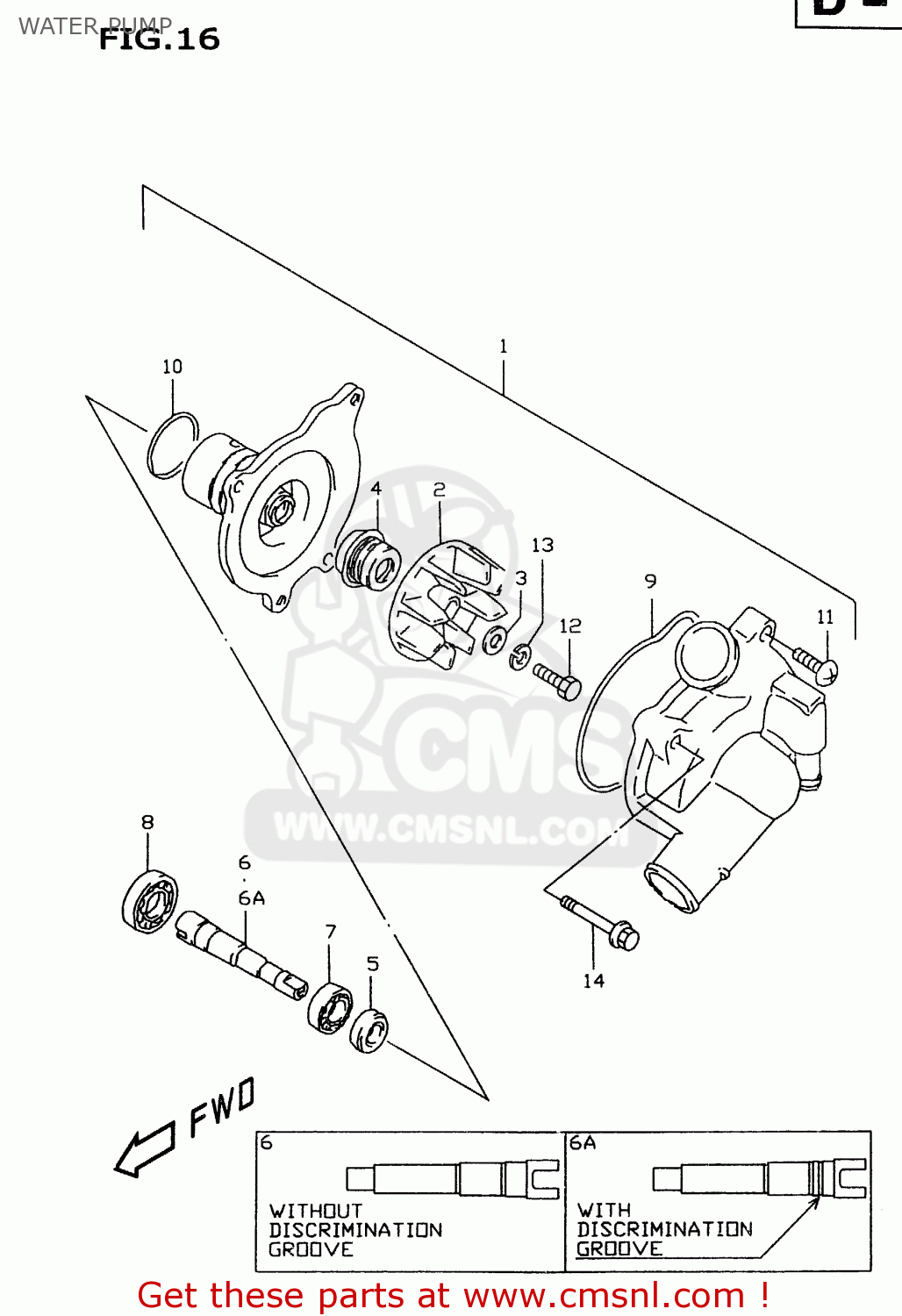

Water pump diagram GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1740033E00
ref: 1

PUMP ASSY,WATER

€ 383.50

1749117E01
ref: 2

IMPELLER

€ 15.00

0916806025
ref: 3

GASKET(6X15X2.2) (NAS)

€ 3.00

4-1

1747046A00
ref: 4-1
MODEL V

SEAL,MECHANICAL

€ 21.50

4-2

1747046A01
ref: 4-2
MODEL W

SEAL,MECHANICAL

€ 21.50

0928310004
ref: 5

SEAL,OIL(10X21X5)

€ 4.50

1751133E00
ref: 6
WITHOUT DISCRIMINATI

SHAFT,WATER PUMP

€ 112.50

1751133E01
ref: 6A
WITH DISCRIMINATION

SHAFT,WATER PUMP

€ 112.50

0926210014
ref: 7

BEARING(10X26X8)

€ 13.00

0926212001
ref: 8

BEARING(12X28X8)

€ 15.00

1741833400
ref: 9

O RING

€ 4.00

1743533400
ref: 10

O RING,WATER PUMP HOLDER

€ 13.00

0211206163
ref: 11

SCREW 6X16

€ 2.00

0910006099
ref: 12

BOLT(6X13)

€ 2.00

0916406006
ref: 13

WASHER

€ 2.50

0154706353
ref: 14

BOLT

€ 3.00

WATER PUMP

all assemblies
