SEAT TAIL BOX (MODEL V)

GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

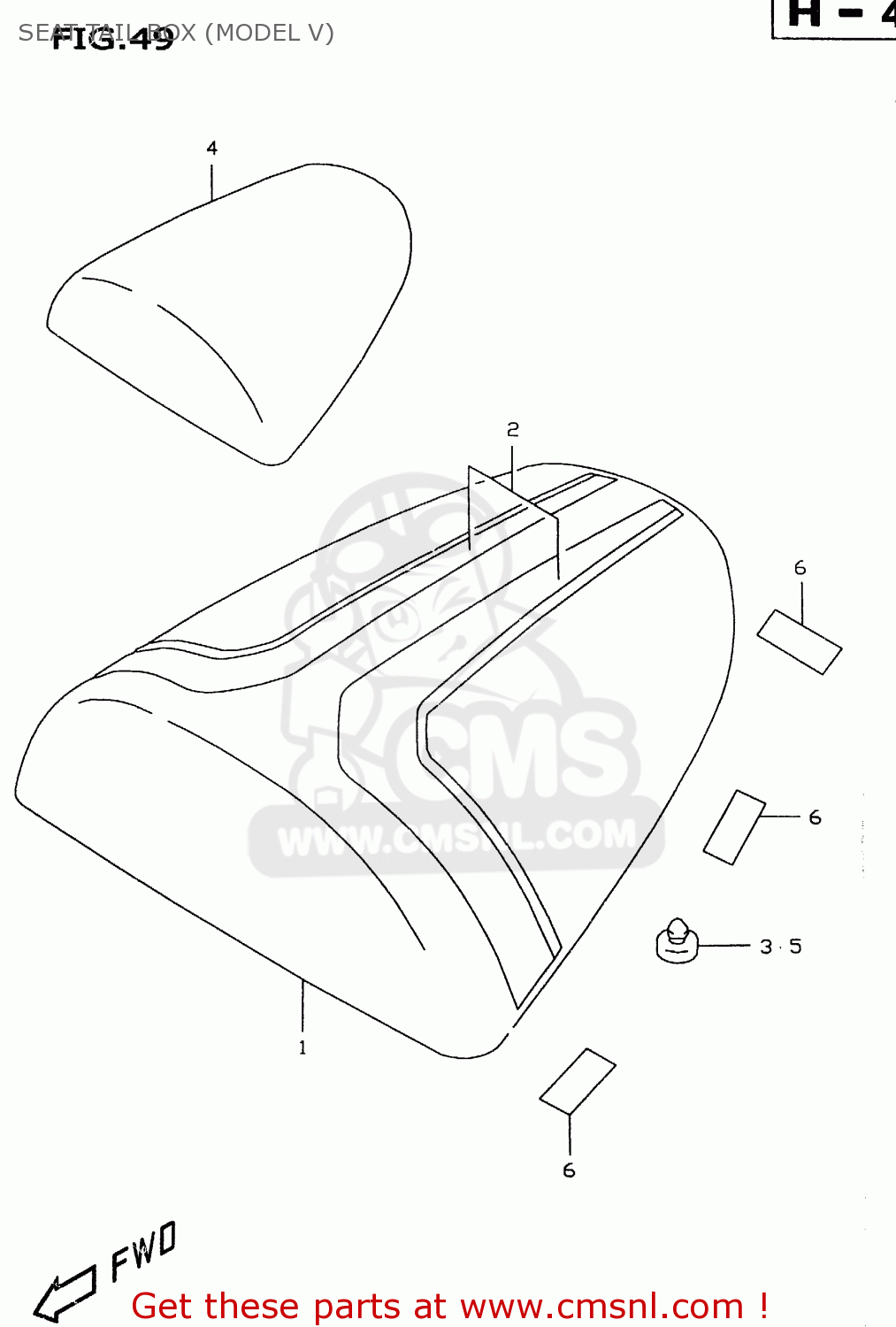

Seat tail box (model v) diagram GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

SEAT TAIL BOX (MODEL V) GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

SEAT TAIL BOX (MODEL V) GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

4550034E000JW
ref: 1
FOR L99

BOX ASSY,SEAT TAIL(WHITE)

€ 174.00

2

6816034E00F3S
ref: 2
FOR 0JW

TAPE SET,BOX SEAT TAIL

€ 45.00

3

0932110002
ref: 3

CUSHION(11.5X22X20)

€ 2.00

4-1

4555033E00019
ref: 4-1
FOR 2YP

BOX,SEAT TAIL(BLACK)

€ 135.00

4-2

4555033E0017U
ref: 4-2
FOR G7Y

BOX,SEAT TAIL(GRAY)

€ 150.00

5

0932110002
ref: 5

CUSHION(11.5X22X20)

€ 2.00

6

4555933E00
ref: 6

PROTECTOR SET,SEAT TAIL BOX

€ 10.00
