SEAT TAIL BOX (MODEL W)

GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

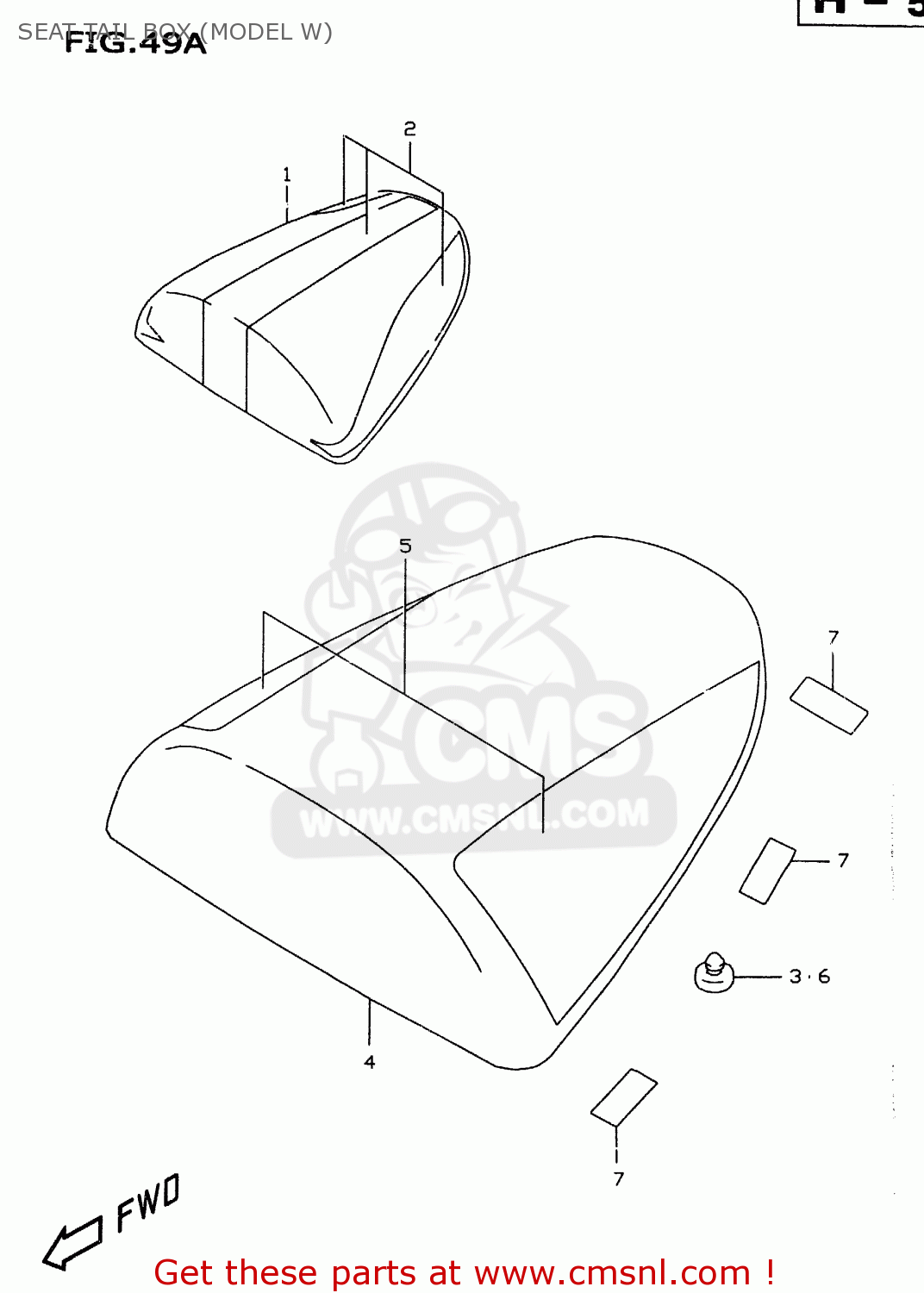

Seat tail box (model w) diagram GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

SEAT TAIL BOX (MODEL W) GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

SEAT TAIL BOX (MODEL W) GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

4550033E401LF
ref: 1
FOR L99

BOX ASSY,SEAT TAIL(BLUE)

€ 182.00

2

6816033E410JW
ref: 2

TAPE SET,BOX SEAT TAIL(WHITE)

€ 65.00

3

0932110002
ref: 3

CUSHION(11.5X22X20)

€ 2.00

4-1

4550034E10019
ref: 4-1
FOR K1W

BOX ASSY,SEAT TAIL(BLACK)

€ 174.00

4-2

4550034E101PX
ref: 4-2
FOR K4B

BOX ASSY,SEAT TAIL(BLACK)

€ 174.00

5-1

6816034E10Y2D
ref: 5-1
FOR 019

TAPE SET,BOX SEAT TAIL

€ 28.00

5-2

6816034E10Y0W
ref: 5-2
FOR 1PX

TAPE SET,BOX SEAT TAIL

€ 38.00

6

0932110002
ref: 6

CUSHION(11.5X22X20)

€ 2.00

7

4555933E00
ref: 7

PROTECTOR SET,SEAT TAIL BOX

€ 10.00
