HEADLAMP (E2, E24)

GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

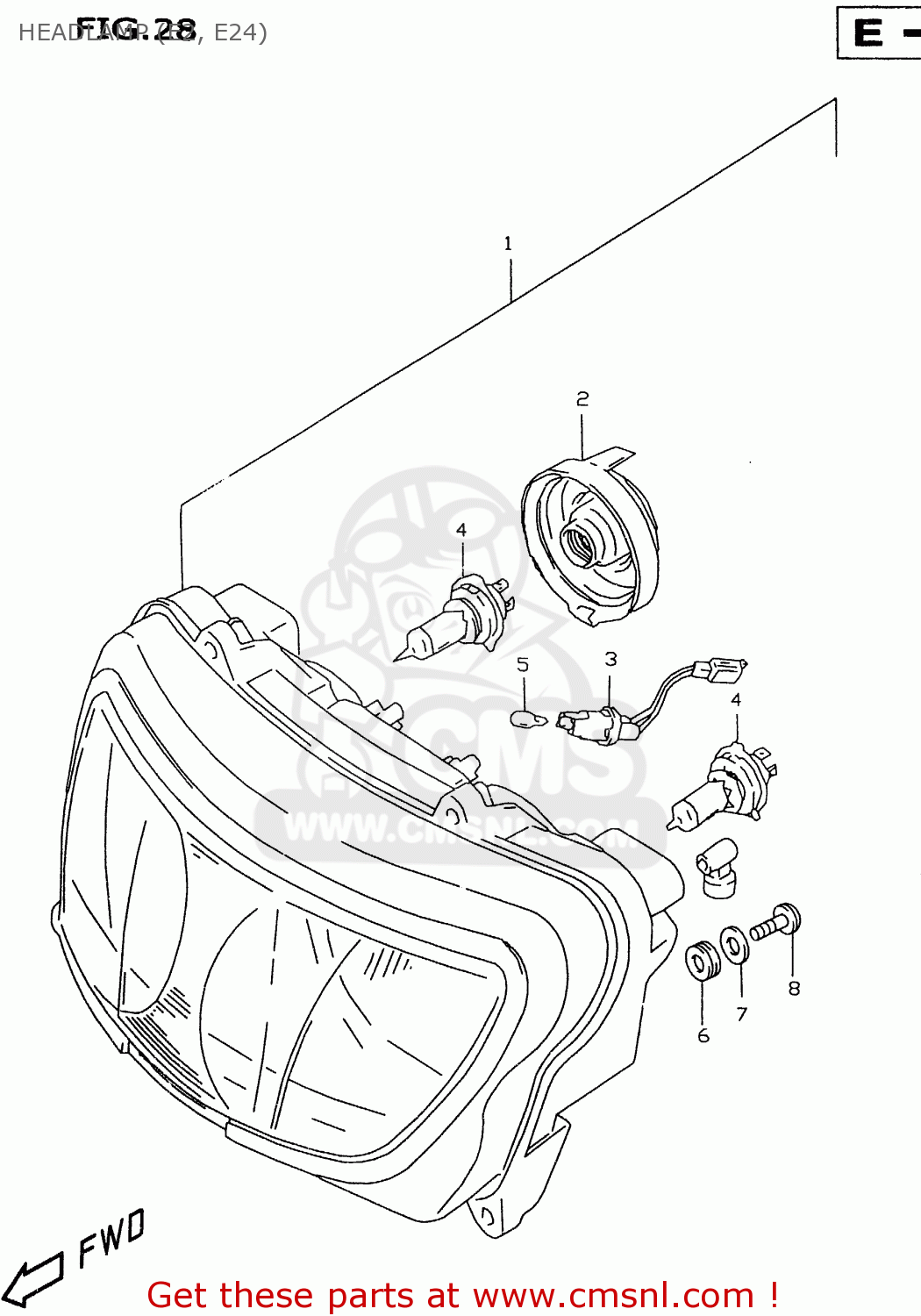

Headlamp (e2, e24) diagram GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

HEADLAMP (E2, E24) GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

HEADLAMP (E2, E24) GSXR600 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

3510033E22999
ref: 1-1
MODEL V

HEADLAMP ASSY

€ 352.00

1-2

3510033E60999
ref: 1-2
MODEL W

HEADLAMP ASSY

€ 346.00

1-3

3510033E02999
ref: 1-3
E24

HEADLAMP ASSY

€ 350.00

2

3512574F00
ref: 2

COVER,SOCKET

€ 11.50

3

3516533E00
ref: 3
E2

TUBE ASSY

€ 13.50

4

0947112163
ref: 4

BULB(12V55/50W)

€ 22.00

5

0947112081
ref: 5
E2

BULB(12V5W)

€ 1.50

6

3513733E00
ref: 6

CUSHION,HEADLAMP

€ 3.00

7

0916005045
ref: 7
5.5X18X1

WASHER(5.5X18X1)

€ 2.00

8

0351105163
ref: 8

SCREW,SIDE HOL

€ 2.50
