CRANKCASE
GSXR600X 2005 (K5) USA (E03)

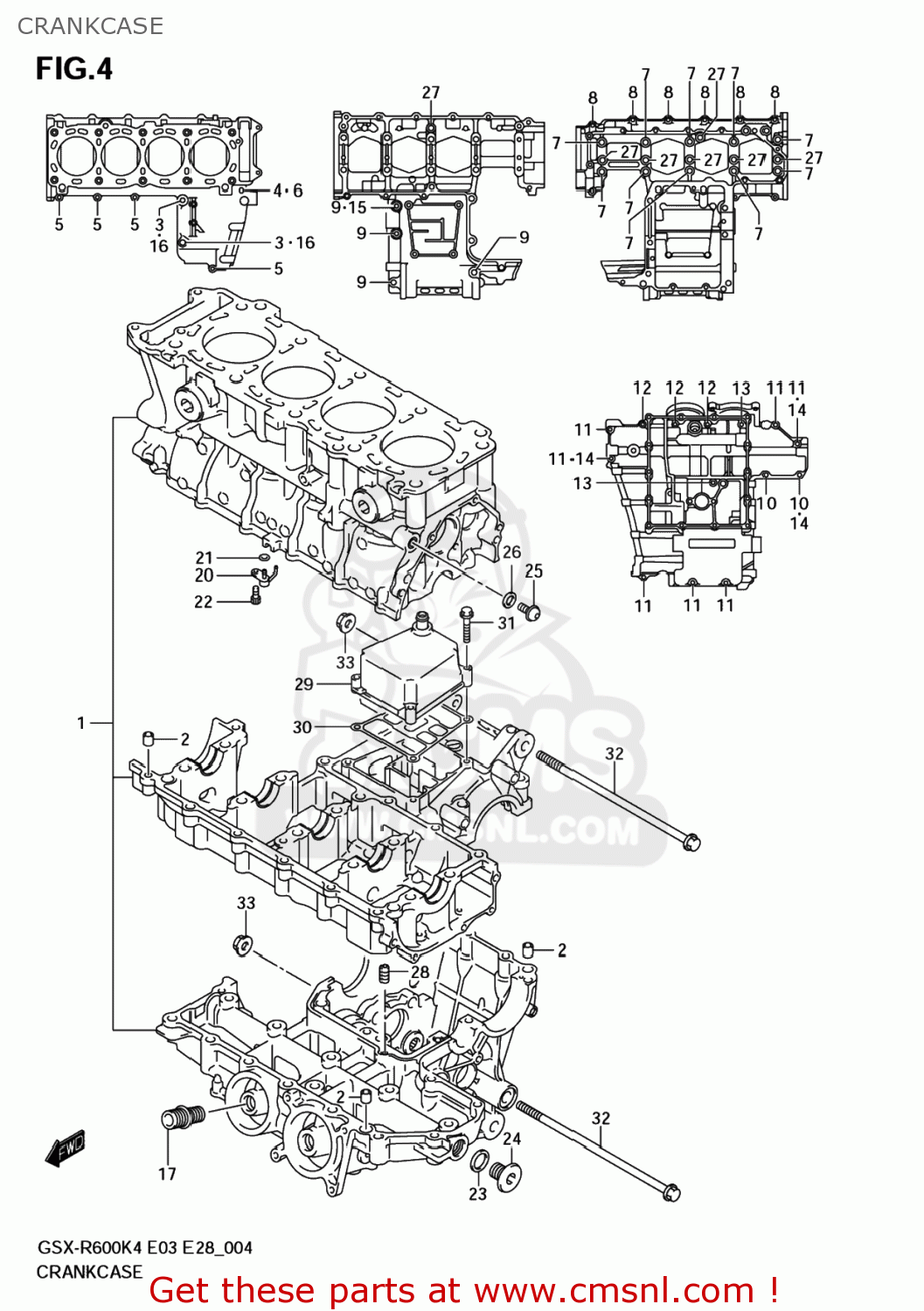

Crankcase diagram GSXR600X 2005 (K5) USA (E03)
CRANKCASE GSXR600X 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130129860
ref: 1-1
11301-29861
CRANKCASE SET
€ 1,700.00
1-2
1130129861
ref: 1-2
CRANKCASE SET
€ 1,700.00
2
1131933E50
ref: 2
PIN,CRANKCASE
€ 4.00
3
0910608139
ref: 3
BOLT(8X120)
€ 10.00
4
0916806023
ref: 4
GASKET(5.8X13X1.2) (NAS)
€ 2.00
5
0154706353
ref: 5
01547-0635B
BOLT
€ 3.00
6
0154706803
ref: 6
01547-0680B
BOLT
€ 3.50
7
0910309012
ref: 7
BOLT(9X95)
€ 7.00
8
0154706403
ref: 8
01547-0640B
BOLT
€ 3.00
9
0712008653
ref: 9
07120-0865B
BOLT
€ 4.00
10
0154706303
ref: 10
01547-0630B
BOLT,G/S SWITC
€ 3.00
11
0154706403
ref: 11
01547-0640B
BOLT
€ 3.00
12
0154706603
ref: 12
01547-0660B
BOLT
€ 3.50
13
0154706703
ref: 13
01547-0670B
BOLT
€ 3.00
14
0916806023
ref: 14
GASKET(5.8X13X1.2) (NAS)
€ 2.00
15
0916808016
ref: 15
GASKET(8.2X14X1) (NAS)
€ 1.00
16
0916808016
ref: 16
GASKET(8.2X14X1) (NAS)
€ 1.00
17
1659106B00
ref: 17
16591-06B01
UNION,OIL STAND
€ 6.00
18
1222817E000D0
ref: 18
BEARING,CRANK THRUST(GREEN)
€ 8.00
19-1
1222817E000A0
ref: 19-1
BEARING,CRANK THRUST(RED)
€ 7.50
19-2
1222817E000B0
ref: 19-2
BEARING,CRANK THRUST(BLACK)
€ 7.50
19-3
1222817E000C0
ref: 19-3
BEARING,CRANK THRUST(BLUE)
€ 7.50
19-4
1222817E000D0
ref: 19-4
BEARING,CRANK THRUST(GREEN)
€ 8.00
19-5
1222817E000E0
ref: 19-5
BEARING,CRANK THRUST(YELLOW)
€ 7.50
19-6
1222817E000F0
ref: 19-6
BEARING,CRANK THRUST(WHITE)
€ 7.50
20
1139035F00
ref: 20
JET,PISTON COOLING
€ 19.00
21
0928004004
ref: 21
O RING(D:1.2,ID:4)
€ 2.00
22
0910606075
ref: 22
BOLT(6X12)
€ 2.50
23
0916816002
ref: 23
GASKET(16X22X2) (NAS)
€ 2.00
24
0924816013
ref: 24
PLUG
€ 4.50
25
0924810010
ref: 25
PLUG(10X10)
€ 4.00
26
0916810002
ref: 26
GASKET(10X14X3.6) (NAS)
€ 2.00
27
0928008012
ref: 27
O RING(D:1.9,ID:7.8)
€ 4.00
28
0949328012
ref: 28
JET(140)
€ 8.00
29
1137035F00
ref: 29
COVER,BREATHER
€ 71.00
30
1148435F00
ref: 30
GASKET,BREATHER COVER (NAS)
€ 3.50
31
0154706303
ref: 31
01547-0630B
BOLT,G/S SWITC
€ 3.00
32
0910310041
ref: 32
09103-10041-A05
BOLT 10X215
€ 9.00
33
0915910058
ref: 33
09159-10115
NUT
€ 4.00
