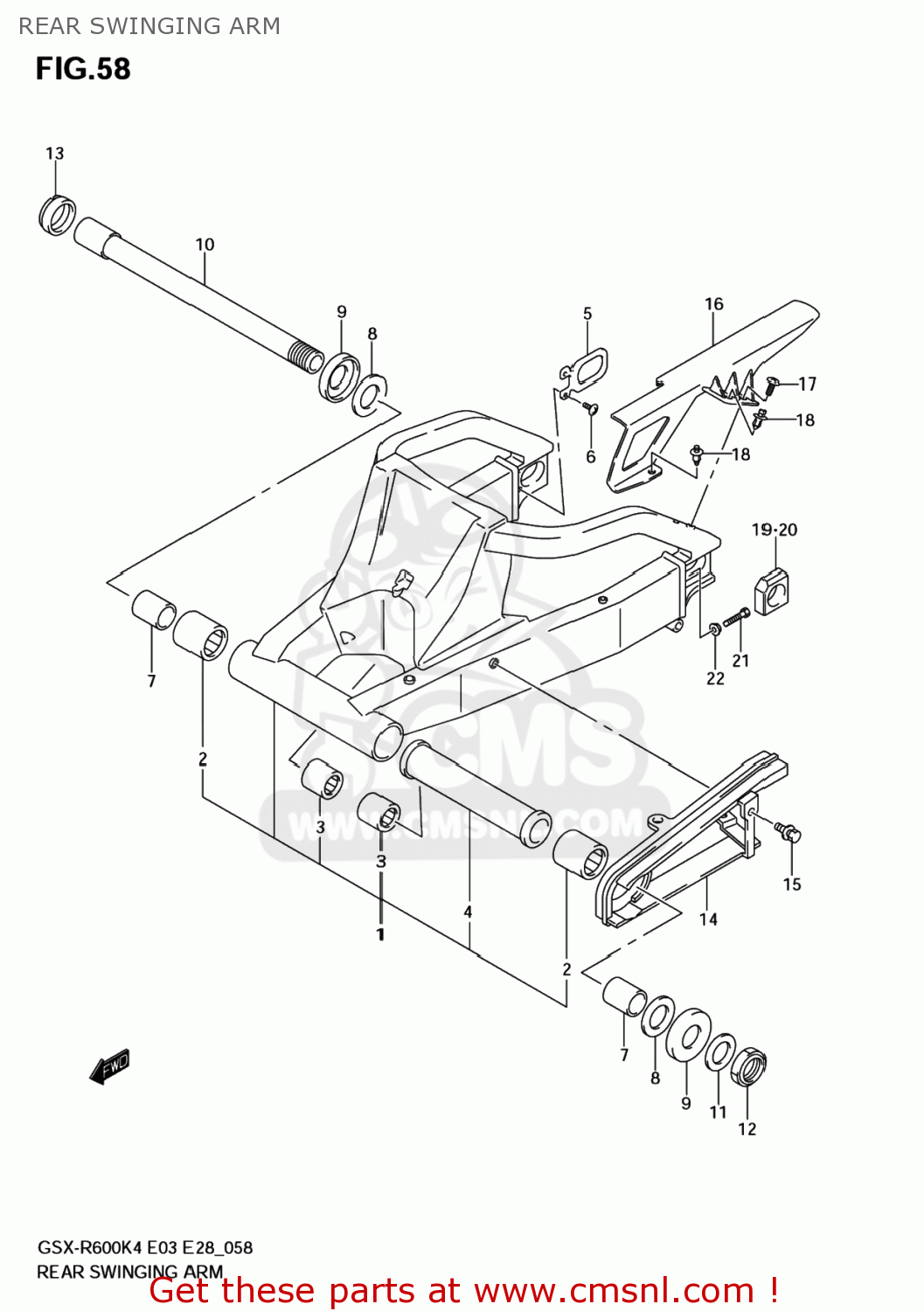

REAR SWINGING ARM

ref

part #

description

quantity

1

6100029G00
ref: 1

SWINGINGARM ASSY,RR

€ 1,711.50

2

0926330040
ref: 2

BEARING(30X40X25)

€ 31.50

3

0926317039
ref: 3

BEARING(17X24X20)

€ 18.00

4

6128133E20
ref: 4

SPACER,RR SWGARM PIVOT CTR

€ 26.00

5

6112433E00
ref: 5

PLATE,RR SWING ARM BRKT

€ 3.50

6

0912506073
ref: 6

SCREW(6X16)

€ 3.00

7

6125117E10
ref: 7

SPACER,REAR SWING ARM PIVOT

€ 7.00

8

0821125481
ref: 8

WASHER

€ 5.50

9

6126217E10
ref: 9

DUST SEAL,RR SWGARM PIVOT

€ 6.50

10

6121116G00
ref: 10

SHAFT,RR SWINGINGARM PIVOT

€ 74.00

11

0916025070
ref: 11

WASHER(25.2X42X3.2)

€ 4.50

12

0915925001
ref: 12
09159-25003

NUT

€ 29.00

13

6121440C31
ref: 13

NUT,RR SWGARM PIVOT BOLT

€ 16.50

14

6127329G00
ref: 14

BUFFER,CHAIN TOUCH DEFENSE

€ 36.00

15

0911106072
ref: 15

BOLT(6X17.8)

€ 2.00

16

6131129G00
ref: 16

CASE,CHAIN

€ 30.00

17

0913906083
ref: 17

SCREW(6X16)

€ 2.50

18

09409083085ES
ref: 18

CLIP(BLACK)

€ 2.00

19-1

6144540F10
ref: 19-1

ADJUSTER,CHAIN,R

€ 34.50

19-2

6144540F30
ref: 19-2

ADJUSTER,CHAIN,R

€ 41.00

20-1

6144640F10
ref: 20-1

ADJUSTER,CHAIN

€ 31.00

20-2

6144640F30
ref: 20-2

ADJUSTER,CHAIN,L

€ 41.00

21

0910008287
ref: 21

BOLT(8X50)

€ 3.00

22

0831610083
ref: 22
08316-1008B

NUT

€ 3.00
