FUEL PUMP

GSXR600X 2005 (K5) USA (E03)

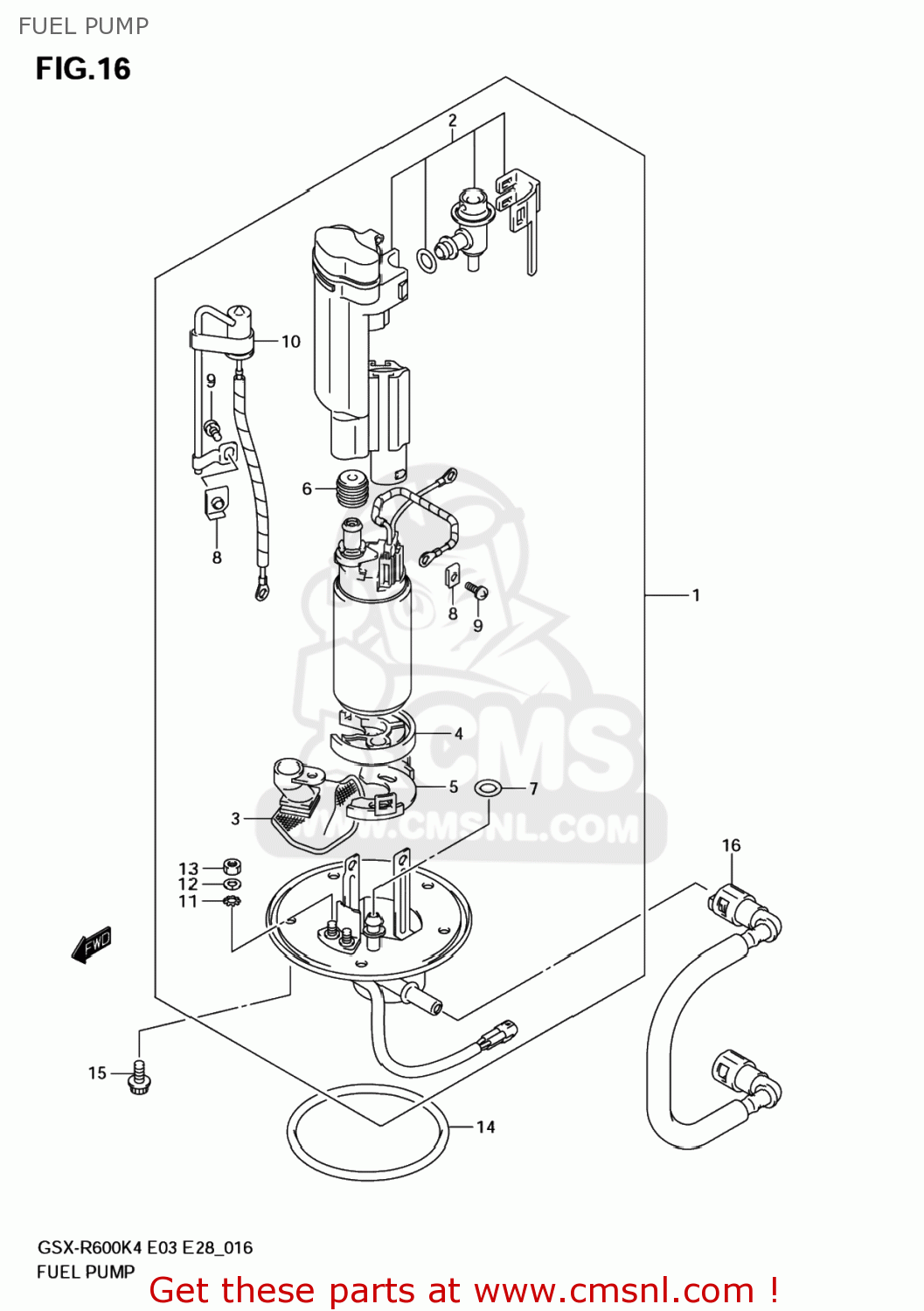

Fuel pump diagram GSXR600X 2005 (K5) USA (E03)

FUEL PUMP GSXR600X 2005 (K5) USA (E03)

FUEL PUMP GSXR600X 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1510029G00
ref: 1

PUMP ASSY,FUEL

€ 1,087.00

2

1541042F00
ref: 2

FILTER ASSY,FUEL

€ 320.00

3

1542024FB0
ref: 3

STRAINER,FUEL PUMP

€ 55.00

4

1511135F00
ref: 4

CUSHION

€ 8.50

5

1511242F00
ref: 5

HOLDER,FUEL PUMP

€ 18.50

6

1511435F00
ref: 6

BUSH,FUEL PUMP

€ 17.00

7

1511335F00
ref: 7

O RING

€ 7.50

8

1511535F00
ref: 8

NUT

€ 10.50

9

1511635F10
ref: 9

SCREW

€ 6.00

10

1517029G00
ref: 10

THERMISTOR

€ 264.50

11

1517135F00
ref: 11

WASHER

€ 6.00

12

1517235F00
ref: 12

WASHER,SPRING

€ 4.00

13

1517335F00
ref: 13

NUT

€ 4.50

14

1520135F00
ref: 14

O RING,FUEL PUMP

€ 26.00

15

0712006123
ref: 15
07120-0612B

BOLT

€ 3.50

16

1581018G00
ref: 16

HOSE,FUEL

€ 70.50
