UNDER COWLING (GSX-R600XK5)

GSXR600X 2005 (K5) USA (E03)

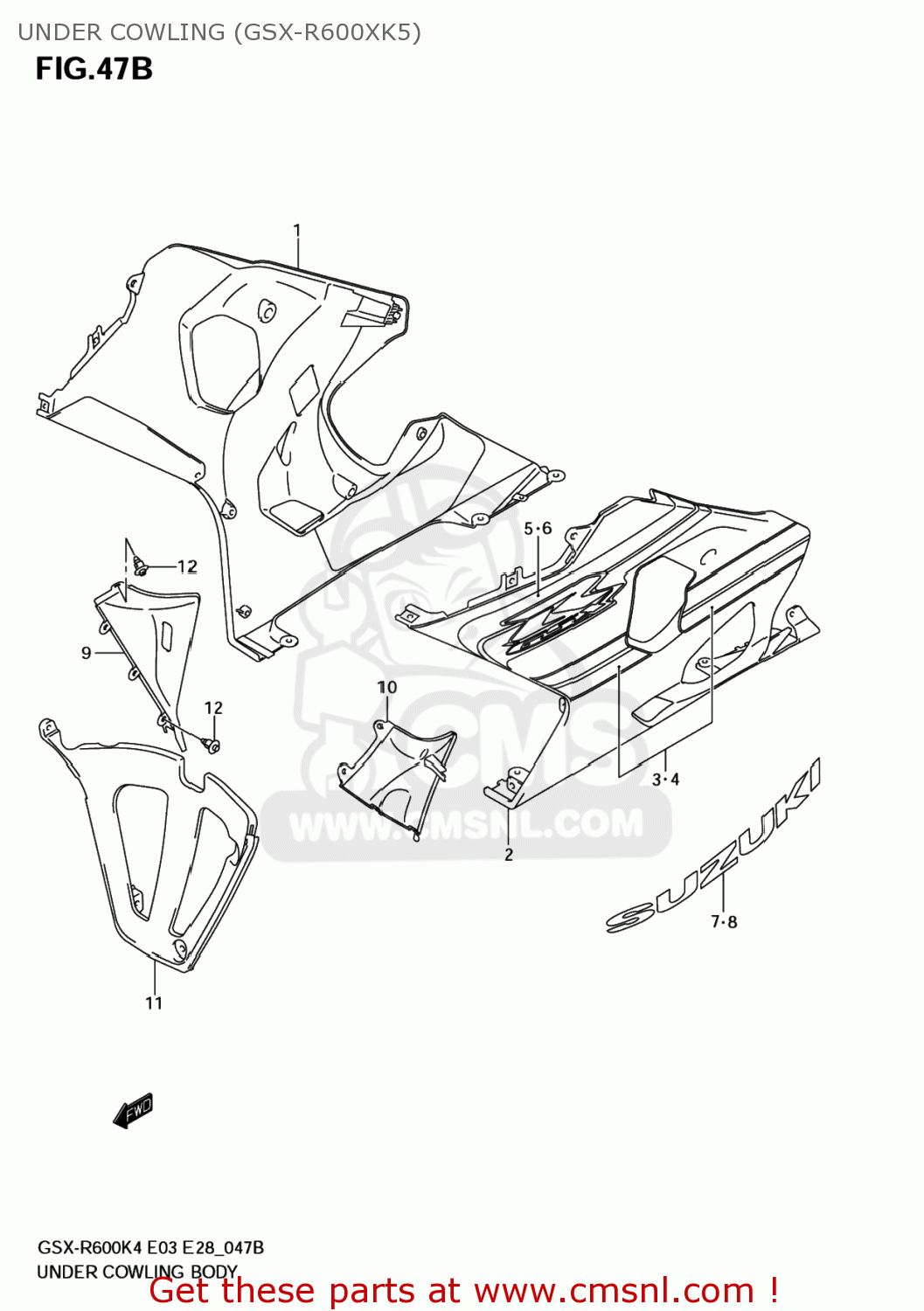

Under cowling (gsx-r600xk5) diagram GSXR600X 2005 (K5) USA (E03)

UNDER COWLING (GSX-R600XK5) GSXR600X 2005 (K5) USA (E03)

UNDER COWLING (GSX-R600XK5) GSXR600X 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

9440729GB0LR5
ref: 1

COWLING ASSY,UNDER,R

€ 682.50

2

9440829GB0LR5
ref: 2

COWLING ASSY,UNDER,L

€ 793.50

3

6818029GB0CCR
ref: 3

TAPE SET,UNDER COWLING,R

€ 47.00

4

6819029GB0CCR
ref: 4

TAPE SET,UNDER COWLING,L

€ 34.50

5

6818529GB0CCP
ref: 5

TAPE,UNDER COWL,R

€ 45.50

6

6819529GB0CCP
ref: 6

TAPE,UNDER COWL,L

€ 52.50

7

6818129GB0YBD
ref: 7

EMBLEM,R

€ 28.50

8

6819129GB0YBD
ref: 8

EMBLEM,L

€ 31.00

9

9446129G00
ref: 9

COWLING,UNDER INNER,R

€ 19.00

10

9446229G10
ref: 10

COWLING,UNDER INNER,L

€ 25.00

11

9449829G10
ref: 11

COWLING,UNDER CTR

€ 95.00

12

09409063145PK
ref: 12

CLIP(BLACK)

€ 3.50
