FRONT CALIPER (GSX-R600XK5)

GSXR600X 2005 (K5) USA (E03)

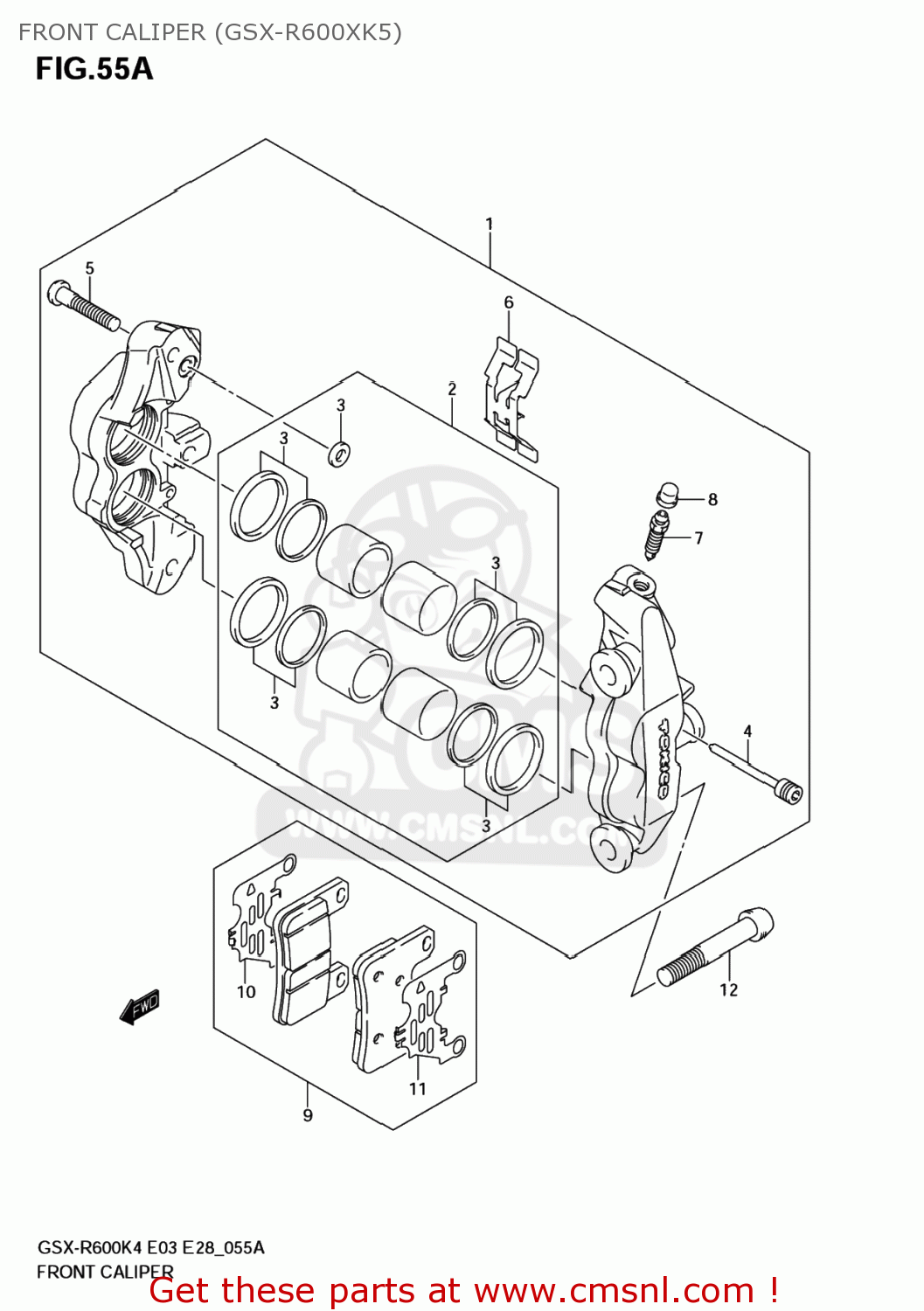

Front caliper (gsx-r600xk5) diagram GSXR600X 2005 (K5) USA (E03)

FRONT CALIPER (GSX-R600XK5) GSXR600X 2005 (K5) USA (E03)

FRONT CALIPER (GSX-R600XK5) GSXR600X 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5910029G00999
ref: 1-1

CALIPER ASSY,FR,R

€ 604.00

1-2

5930029G00999
ref: 1-2

CALIPER ASSY,FR,L

€ 516.00

2

5910035890
ref: 2

PISTON SET

€ 184.00

3

5910029830
ref: 3

SEAL SET,PISTON

€ 29.50

4

5914118G00
ref: 4

PIN,PAD

€ 42.00

5

5914518G00
ref: 5

BOLT

€ 7.50

6

5915129G00
ref: 6

SPRING,PAD

€ 10.50

7

5912118410
ref: 7

BLEEDER

€ 8.00

8

5515666310
ref: 8

CAP,BLEEDER PLUG

€ 6.00

9

5910029840
ref: 9

PAD & SHIM SET (NAS)

€ 62.00

10

5917141G00
ref: 10

SHIM,PAD A

€ 10.00

11

5917241G00
ref: 11

SHIM,PAD B

€ 10.00

12

0910610076
ref: 12

BOLT(10X60)

€ 7.00
