GENERATOR

GSXR600X 2005 (K5) USA (E03)

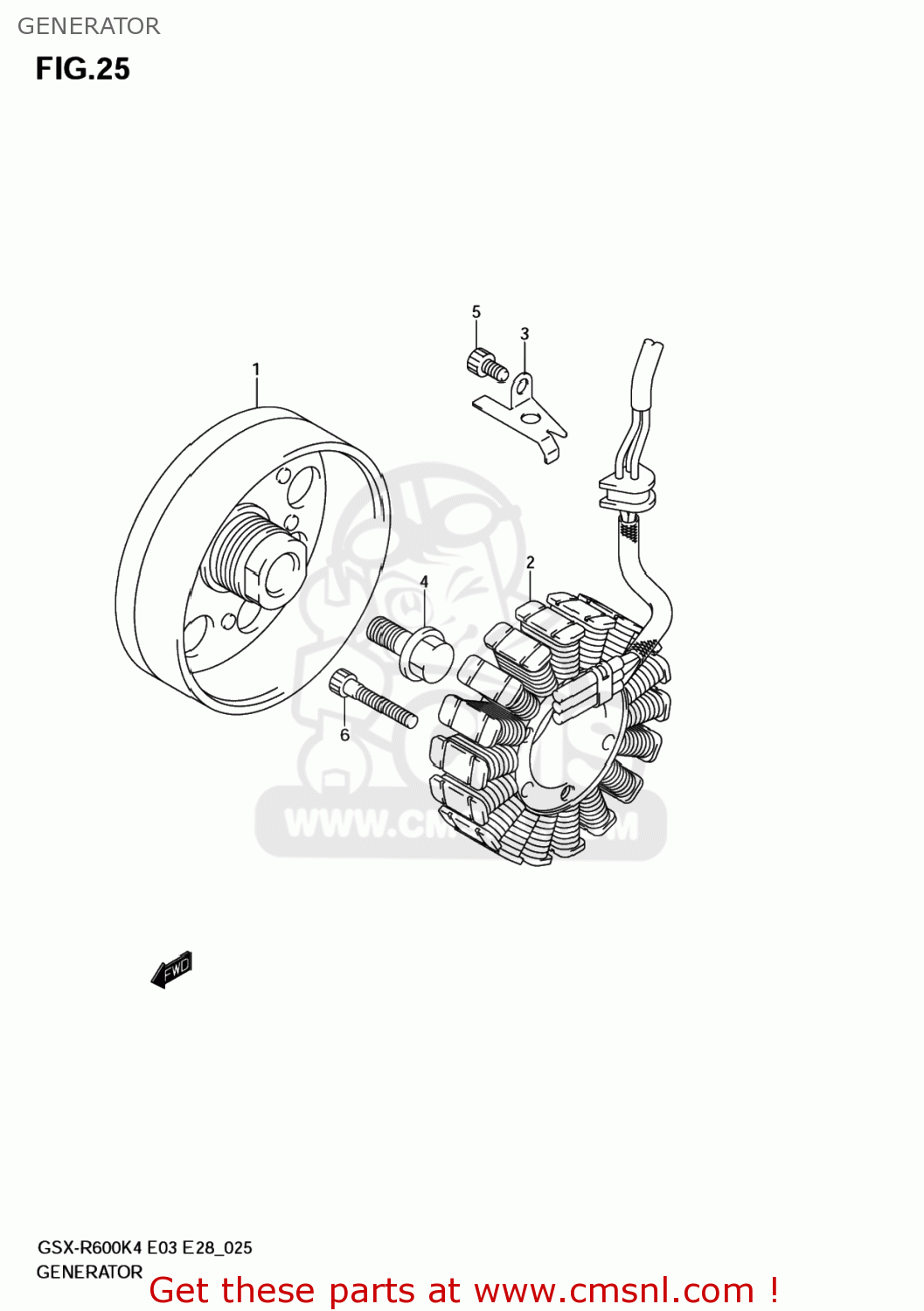

Generator diagram GSXR600X 2005 (K5) USA (E03)

GENERATOR GSXR600X 2005 (K5) USA (E03)

GENERATOR GSXR600X 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3140229G00
ref: 1

ROTOR ASSY

€ 579.00

2

3140129G00
ref: 2

STARTER ASSY

€ 481.00

3

3237133E00
ref: 3

CLAMP,MAGNETO LEAD

€ 3.50

4

0910312005
ref: 4

BOLT(12X23)

€ 5.50

5

0713006123
ref: 5
07130-0612A

BOLT,STRANGER

€ 2.50

6

0713006353
ref: 6
07130-0635B

BOLT

€ 3.50
