prices are in EUR

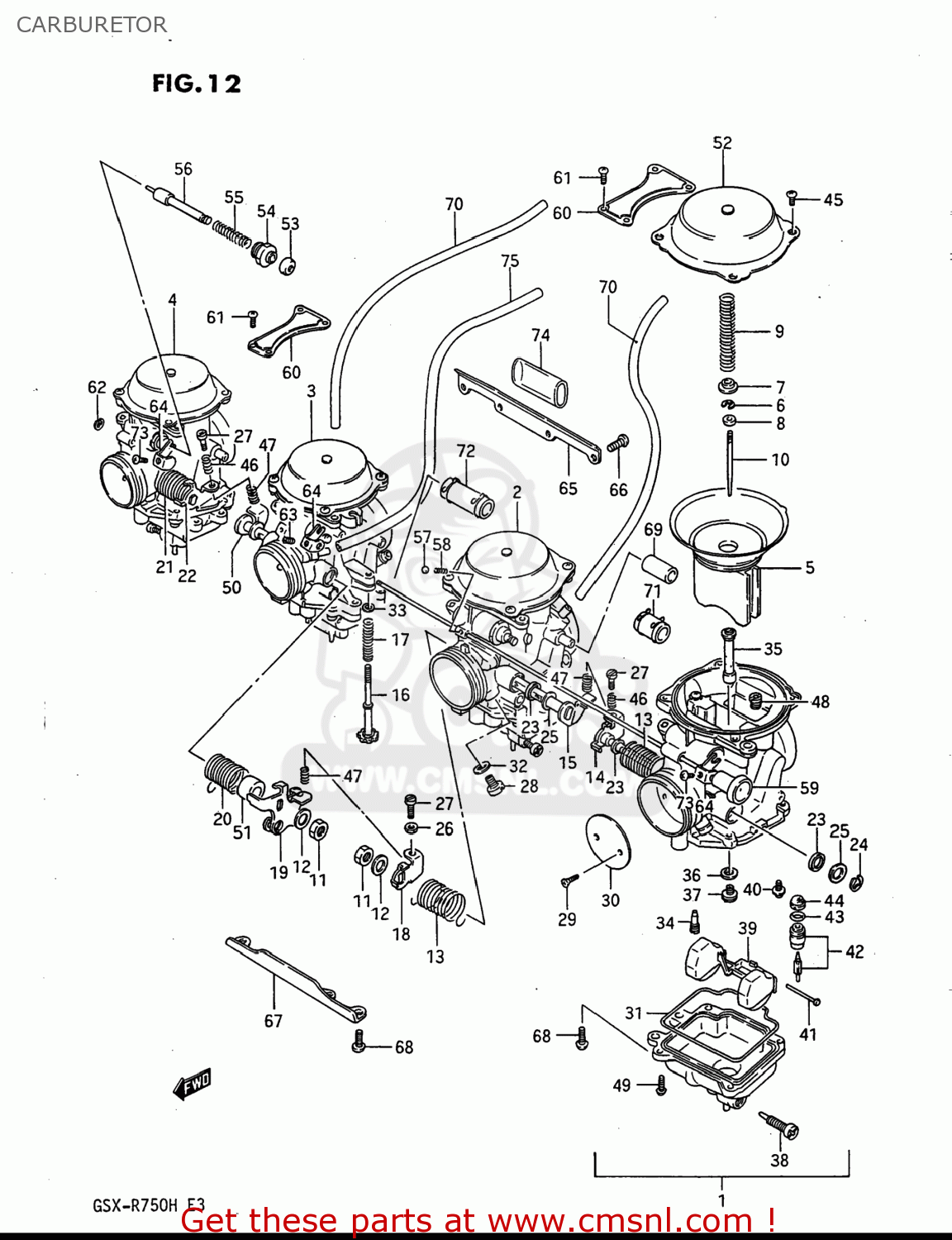

ref
part #
description
quantity
1-2
CARBURETOR ASSEMBLY,LEFT
1-2
CARBURETOR ASSEMBLY,LEFT
2-2
CARBURETOR ASSEMBLY,MIDDLE,LEFT
2-2
CARBURETOR ASSEMBLY,MIDDLE,LEFT
3-2
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
3-2
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
4-2
CARBURETOR ASSEMBLY,RIGHT
4-2
CARBURETOR ASSEMBLY,RIGHT
5-1
DIAPHRAGM ASSY
6
CAP,LEVER
7
RING
8
RING
9
SPRING
12
WASHER
23
SEAL
24
E RING
25
GASKET,THROTTLE SHAFT (NAS)
26
NUT,THROTTLE ROD
27
SCREW
28
SCREW
30-2
VALVE,THROTTLE (130)
31
O RING,FLOAT CHAMBER
32
WASHER
33
WASHER
34-1
JET,PILOT(32.5)
34-2
JET,PILOT(35)
37-1
JET,MAIN(117.5)
37-2
JET,MAIN(112.5)
38
SCREW
39
FLOAT
40
SCREW
41
PIN,FLOAT
42
VALVE ASSY,NEEDLE
43
O RING
45
SCREW
46
SPRING
48-1
JET
51
RING
53
CAP,STARTER VALVE
54
GUIDE SCREW,PLUNGER
55
SPRING
56
PLUNGER ASSY
57
BALL,CARBURETOR
61
SCREW
63
SCREW
68
SCREW
72
HOSE ASSY
