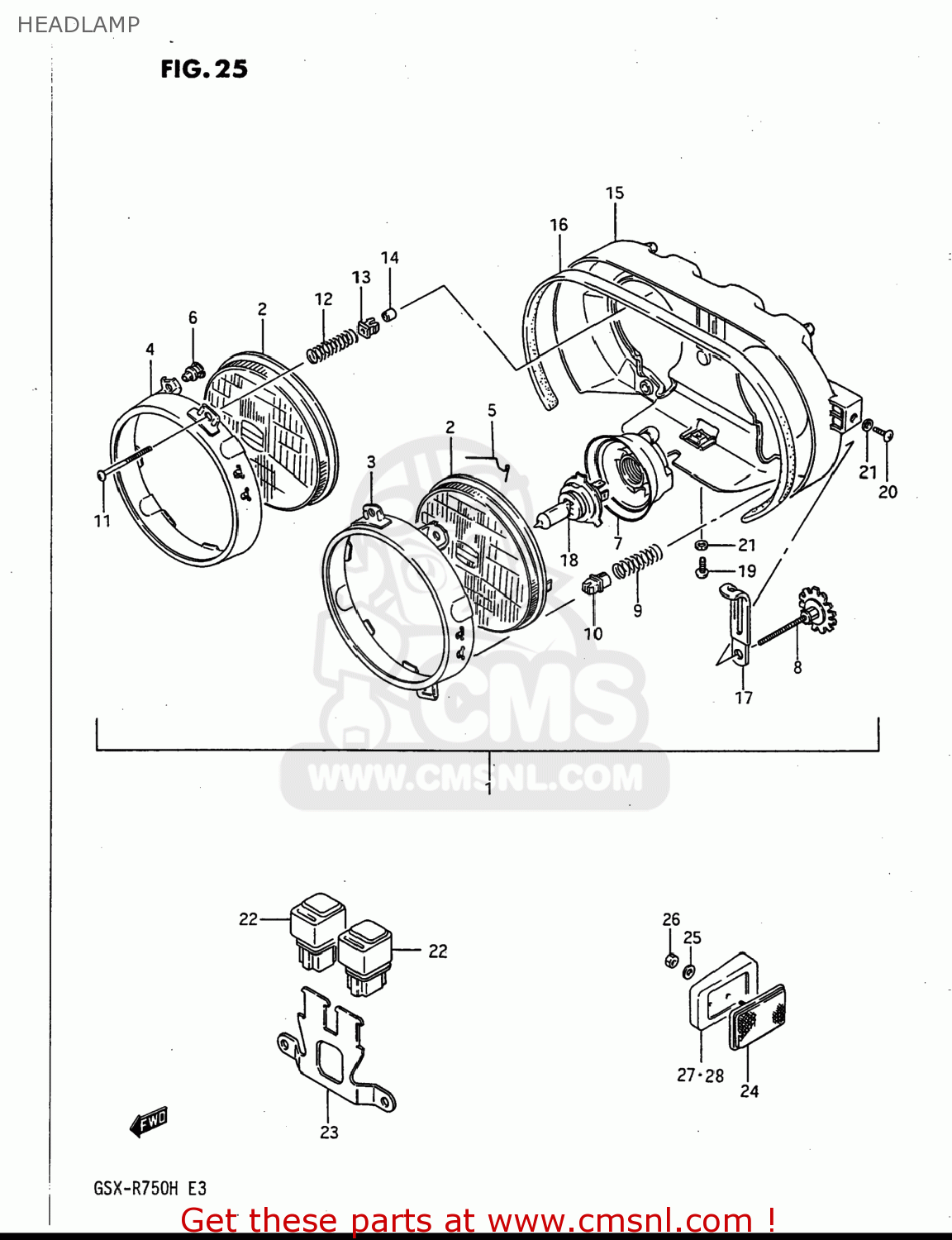

HEADLAMP

ref

part #

description

quantity

1

3510006B30999
ref: 1

HEADLAMP ASSY

€ 306.00

2

3512106B30
ref: 2

LAMP UNIT

€ 109.00

3

3512627A00
ref: 3

RING,RETAINING,LEFT

€ 30.50

4

3512727A00
ref: 4

RING,RETAINING,RIGHT

€ 24.00

5

3512846720
ref: 5

SPRING

€ 4.50

6

3516204A00
ref: 6

SCREW,SPHERICAL

€ 2.00

7

3517320A01
ref: 7

COVER,SOCKET

€ 14.50

8

3515327A00
ref: 8
35153-04A00

SCREW,ADJUSTER

€ 3.50

9

3515404A00
ref: 9

SPRING

€ 4.00

10

3515227A00
ref: 10

NUT

€ 3.00

11

3515104A00
ref: 11
35151-45900

SCREW,ADJUSTER

€ 4.00

12

3515404A00
ref: 12

SPRING

€ 4.00

13

3515504A00
ref: 13

NUT

€ 5.50

14

3515843400
ref: 14

CAP,SCREW

€ 2.00

15

3524006B00
ref: 15

HOUSING,HEADLAMP

€ 76.50

16

3524227A00
ref: 16

GASKET (NAS)

€ 12.50

17

0940405401
ref: 17
09404-06429

CLAMP

€ 2.50

18

0947112060
ref: 18

BULB(12V60/55W,H4)

€ 8.00

19

0211206166
ref: 19
02112-0616A

SCREW

€ 2.00

20

0211206106
ref: 20
02112-0610B

SCREW

€ 1.50

21

0832121066
ref: 21
08321-0106A

WASHER,LOCK

€ 2.00

22

3864006B00
ref: 22
38740-24X50

RELAY, ANTINOSE DIVE FORK

€ 37.50

23

3864106B00
ref: 23

BRACKET,HEADLAMP RELAY

€ 7.50

24

3595002100
ref: 24
35950-49330

REFLEX REFLECTOR ASSEMBLY

€ 15.00

25

0832221055
ref: 25
08322-0105A

WASHER,5MM

€ 2.50

26

0831012055
ref: 26
08310-0005A

NUT ,5MM

€ 2.50

27

3595427A00
ref: 27

SPACER,FRONT SIDE,REAR,RIGHT

€ 3.50

28

3595527A00
ref: 28

SPACER,FRONT SIDE,REAR,LEFT

€ 0.00

all assemblies
