WIRING HARNESS
GSXR750 1986 (G) USA (E03)

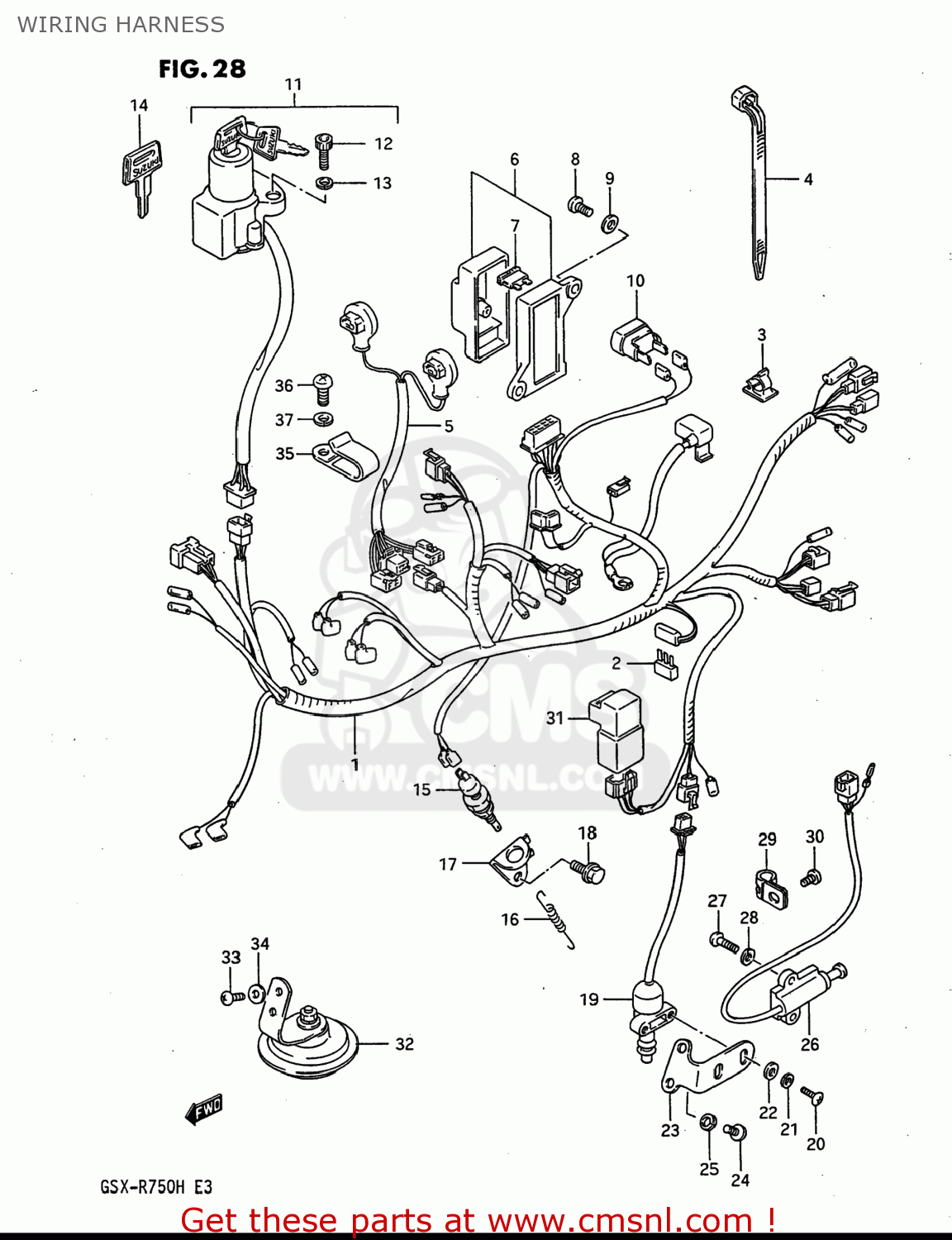

Wiring harness diagram GSXR750 1986 (G) USA (E03)
WIRING HARNESS GSXR750 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661027A30
ref: 1-1
36610-27A82
HARNESS,WIRING
€ 342.00
1-2
3661027A70
ref: 1-2
HARNESS,WIRING
€ 112.50
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
€ 13.00
3
0940307315
ref: 3
CLAMP
€ 3.50
4-1
0940711401
ref: 4-1
CLAMP(L:95)
€ 2.50
4-2
0940714403
ref: 4-2
CLAMP(L:125)
€ 2.50
4-3
0940718402
ref: 4-3
CLAMP(L:165)
€ 2.50
4-4
0940725403
ref: 4-4
09407-25401
CLAMP
€ 4.00
5
3685606B11
ref: 5
36856-06B02
WIRE
€ 72.50
6
3674005A01
ref: 6
36740-27A00
BOX ASSEMBLY,FUSE
€ 77.50
7
0948110101
ref: 7
FUSE(10A)
€ 2.50
8
0211206128
ref: 8
02112-06127
SCREW 6X12
€ 2.00
9
0832221067
ref: 9
08322-01067
WASHER
€ 2.00
10
3675005A00
ref: 10
BREAKER ASSY,CIRCUT
€ 36.50
11
3711006B00
ref: 11
SWITCH ASSY,IGNITION
€ 148.00
12
3715247011
ref: 12
07130-0616B
BOLT
€ 3.00
13
0832121067
ref: 13
08321-01067
WASHER,LOCK
€ 2.50
14
3714516700
ref: 14
KEY,BLANK
€ 11.00
15
3774024A00
ref: 15
SWITCH ASSY,STOP LAMP
€ 20.50
16
0944306056
ref: 16
09443-06056-XC0
SPRING
€ 3.50
17
4325127A00
ref: 17
BRACKET,STOP LAMP SWITCH
€ 3.50
18
0910306119
ref: 18
BOLT
€ 2.50
19
3784014A01
ref: 19
SWITCH ASSY,SIDE STAND WARN
€ 75.00
20
0211205205
ref: 20
02112-0520B
SCREW 5X20
€ 2.50
21
0832121055
ref: 21
08321-0105A
WASHER,LOCK
€ 3.00
22
0832221055
ref: 22
08322-0105A
WASHER,5MM
€ 2.50
23
4236127A00
ref: 23
BRACKET,PROP STAND WARNING
€ 3.50
24
0211206128
ref: 24
02112-06127
SCREW 6X12
€ 2.00
25
0832121067
ref: 25
08321-01067
WASHER,LOCK
€ 2.50
26
3784006B00
ref: 26
37840-26X50
SWITCH ASSEMBLY,SIDE STAND
€ 100.50
27
0211206164
ref: 27
02112-0616A
SCREW
€ 2.00
28
0832121064
ref: 28
08321-0106A
WASHER,LOCK
€ 2.00
29
0940307401
ref: 29
CLAMP
€ 3.00
30
0214206104
ref: 30
02142-0610A
SCREW
€ 2.00
31
3874024B10
ref: 31
38740-24X50
RELAY ASSEMBLY
€ 37.50
32-1
3850006B00
ref: 32-1
38500-06B01
HORN ASSEMBLY
€ 52.00
32-2
3850006B01
ref: 32-2
HORN ASSY
€ 52.00
33
0211206104
ref: 33
02112-0610B
SCREW
€ 1.50
34
0832221064
ref: 34
08322-0106B
WASHER
€ 2.00
35
3661906B00
ref: 35
CLAMP,HANDLE SWITCH LEVER
€ 4.00
36
0211206125
ref: 36
02112-0612A
SCREW
€ 1.50
37
0832121064
ref: 37
08321-0106A
WASHER,LOCK
€ 2.00
