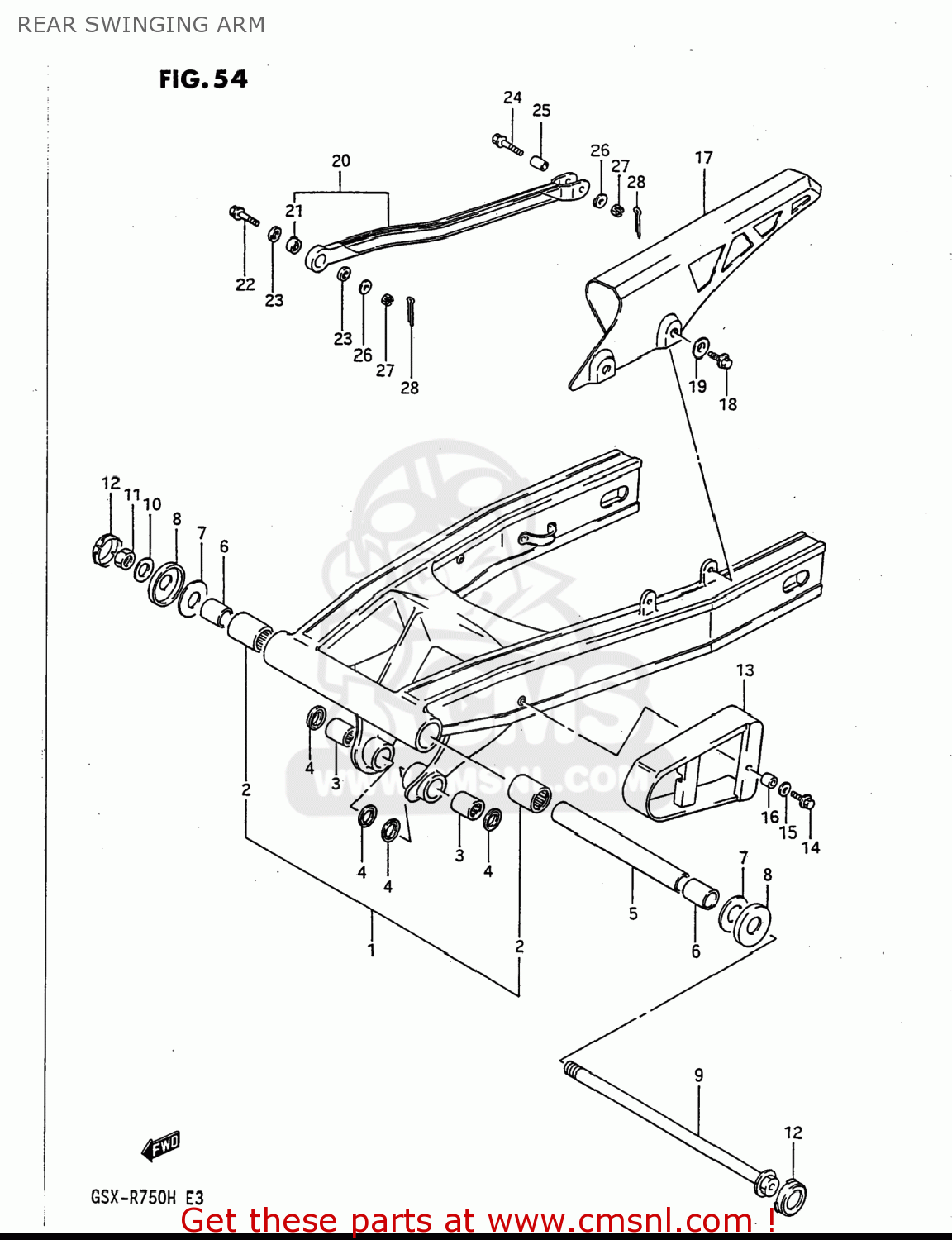

REAR SWINGING ARM

ref

part #

description

quantity

1

6100027A20
ref: 1
61000-27A41

SWING ARM ASSEMBLY,REAR

€ 958.50

2

0926322025
ref: 2

BEARING(22X29X25)

€ 31.50

3

0926317029
ref: 3
09263-17037

ROLLER BEARING (17X24X25))

€ 19.00

4

6264702B00
ref: 4
09285-17001

SPACER,REAR CUSHION ROD

€ 3.50

5

6128227A00
ref: 5

SPACER,RR SWGARM PIVOT CTR

€ 20.50

6

6125127A00
ref: 6

SPACER,RR SWGARM PIVOT BEARING

€ 23.00

7

0821116381
ref: 7

WASHER

€ 2.50

8

6126249000
ref: 8

COVER,RR SWGARM DUST SEAL

€ 17.50

9

6121127A01
ref: 9

SHAFT,REAR SWING ARM

€ 43.50

10

0916014015
ref: 10

WASHER(14X27X3)

€ 4.00

11

0915914013
ref: 11
09159-14019

NUT

€ 8.50

12

6122243400
ref: 12

CAP,SWINGINGARM PIVOT

€ 4.00

13

6127327A00
ref: 13

BUFFER,CHAIN TOUCH DEFENSE

€ 26.00

14

0110706206
ref: 14
01500-0620A

BOLT,M6X1X20

€ 2.00

15

0916006019
ref: 15

WASHER(6.5X16X1.2)

€ 1.50

16

0918006135
ref: 16

SPACER(6.5X8.5X5.8)

€ 2.00

17

6131027A01
ref: 17

CASE,CHAIN

€ 48.00

18

0151706105
ref: 18
01550-0610A

BOLT

€ 2.50

19

0916906026
ref: 19

WASHER

€ 2.00

20

6430027840
ref: 20
64300-27841

TORQUE LINK SET,REAR

€ 120.50

21

6435240411
ref: 21
64352-40401

SPHERICAL BEARING,TORQUE

€ 69.50

22

0910308160
ref: 22

BOLT(8X38)

€ 6.00

23

6433940410
ref: 23

6433940410

24

0910308161
ref: 24
09103-08160

BOLT

€ 6.00

25

6433620A00
ref: 25

SPACER,RR TORQUE LINK RR

€ 8.00

26

0832211088
ref: 26
08322-01087

WASHER

€ 2.00

27

0831441088
ref: 27
08314-4008B

NUT 8MM

€ 2.50

28

0411120208
ref: 28
04111-2020A

PIN 20X20

€ 1.50
