TAIL LAMP - LICENSE LAMP
GSXR750 1986 (G) USA (E03)

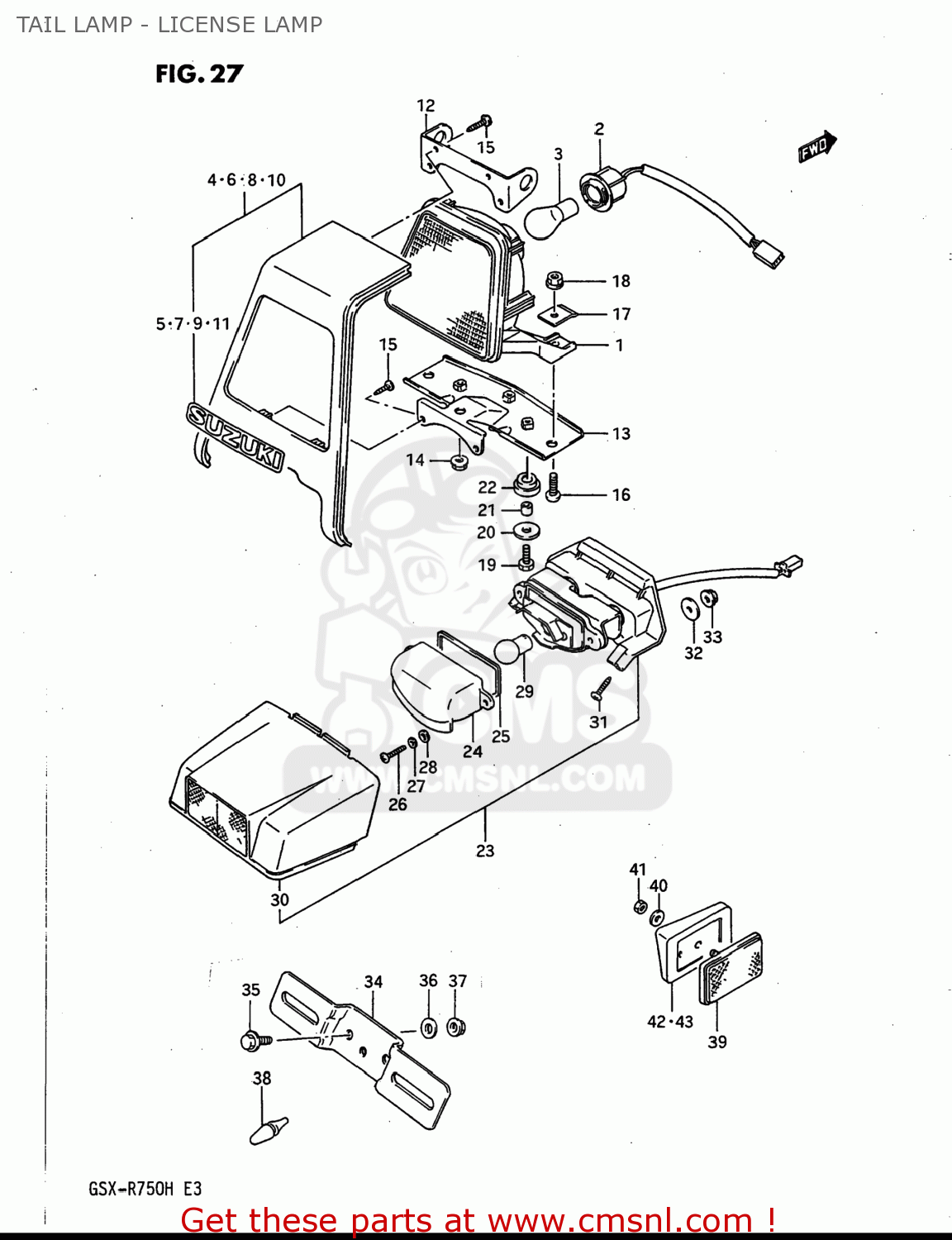

Tail lamp - license lamp diagram GSXR750 1986 (G) USA (E03)
TAIL LAMP - LICENSE LAMP GSXR750 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3574027A31
ref: 1
LAMP UNIT
€ 13.50
2
3571827A00
ref: 2
35718-20A50
SOCKET & CORD ASSEMBLY
€ 29.00
3
0947112084
ref: 3
BULB(12V23/8W,TOKAI DENSO)
€ 6.00
4
3579627A10019
ref: 4
35796-27A10-291
COVER,TAIL LAMP
€ 130.50
5
681663130007G
ref: 5
68166-31300-719
EMBLEM
€ 4.50
6
3579627A1014L
ref: 6
35796-27A10-291
COVER,TAIL LAMP
€ 130.50
7
6816631300742
ref: 7
68166-31300-13L
EMBLEM
€ 5.00
8
3579627A1002X
ref: 8
35796-27A10-291
COVER,TAIL LAMP
€ 130.50
9
6816631300742
ref: 9
68166-31300-13L
EMBLEM
€ 5.00
10
3579627A1030H
ref: 10
35796-27A10-291
COVER,TAIL LAMP
€ 130.50
10
3579627A1030H
ref: 10
35796-27A10-291
COVER,TAIL LAMP
€ 130.50
11
6816631300019
ref: 11
68166-31300-33J
EMBLEM
€ 4.00
12
3571627A00
ref: 12
PLATE
€ 14.50
13
3572627A00
ref: 13
BRACKET
€ 18.00
14
0831626066
ref: 14
08316-1006B
NUT
€ 2.00
15
0321204169
ref: 15
SCREW
€ 1.50
16
0211206166
ref: 16
02112-0616A
SCREW
€ 2.00
17
3571640A00
ref: 17
PLATE,TAIL LAMP
€ 5.50
18
0831626066
ref: 18
08316-1006B
NUT
€ 2.00
19
0110706206
ref: 19
01500-0620A
BOLT,M6X1X20
€ 2.00
20
0916006020
ref: 20
09160-06066
WASHER
€ 2.00
21
0918006084
ref: 21
09180-06038
SPACER (6.1X9X7.5)
€ 2.00
22
0932009028
ref: 22
CUSHION
€ 3.00
23
3591006B30
ref: 23
35910-28A30
LAMP ASSEMBLY,LICENSE
€ 139.00
24
3591200A10
ref: 24
LENS,LICENSE LAMP
€ 16.00
25
3591304A00
ref: 25
GASKET,LICESE LAMP (NAS)
€ 4.00
26
0211204167
ref: 26
02112-0416A
SCREW
€ 1.00
27
0832121047
ref: 27
08321-0104A
WASHER,LOCK 4M
€ 2.00
28
0832221047
ref: 28
08322-01047
WASHER 4MM
€ 2.00
29
0947112037
ref: 29
09471-12141
BULB
€ 7.00
30
3591706B30
ref: 30
COVER,LICENSE LAMP
€ 35.50
31
0324104165
ref: 31
03242-0416B
SCREW
€ 4.50
32
0916005011
ref: 32
09160-05501
WASHER (5.5X20X1.2)
€ 2.00
33
0831626056
ref: 33
08316-2005A
NUT
€ 2.00
34
3592727A30
ref: 34
BRACKET,LICENSE PLATE
€ 10.00
35
0151706164
ref: 35
01550-0616A
BOLT
€ 2.50
36
0916006020
ref: 36
09160-06066
WASHER
€ 2.00
37
0831626066
ref: 37
08316-1006B
NUT
€ 2.00
38
0932106023
ref: 38
CUSHION
€ 2.00
39
3597049310
ref: 39
35970-08A30
REFLECTOR,REFLEX
€ 16.50
40
0916005013
ref: 40
WASHER(5.2X16X1)
€ 1.50
41
0831012055
ref: 41
08310-0005A
NUT ,5MM
€ 2.50
42
3597727A00
ref: 42
SPACER,REAR SIDE,REAR,RIGHT
€ 7.00
43
3597827A00
ref: 43
SPACER,REAR SIDE,REAR,LEFT
€ 4.00
