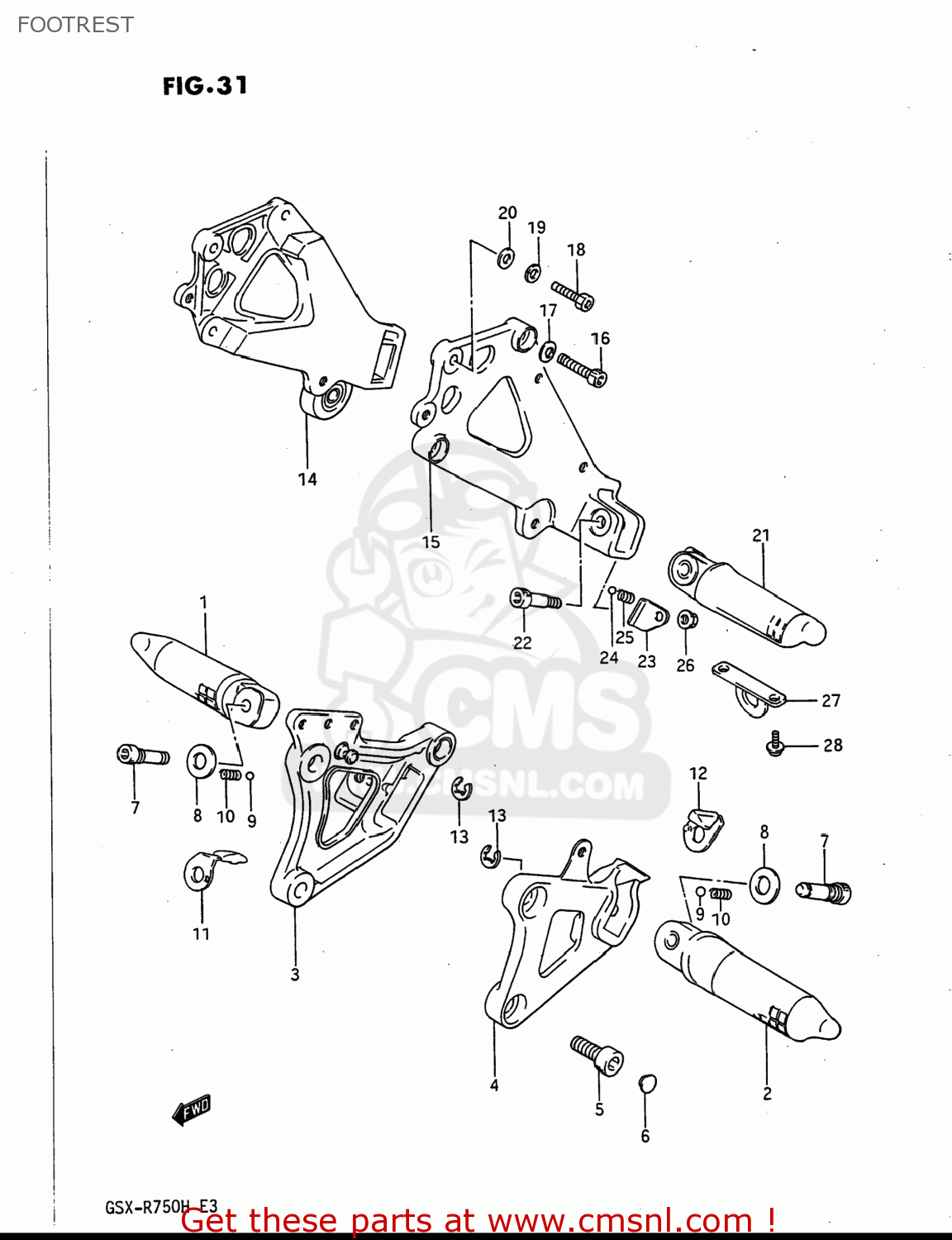

FOOTREST

ref

part #

description

quantity

1-1

4350127A00
ref: 1-1
43501-27A02

FOOTREST ASSEMBLY,FRONT,RIGHT

€ 122.50

1-2

4350127A02
ref: 1-2

FOOTREST ASSY,FR,R

€ 122.50

2-1

4350227A00
ref: 2-1
43502-27A02

FOOTREST ASSEMBLY,FRONT,LEFT

€ 65.00

2-2

4350227A02
ref: 2-2

FOOTREST ASSY,FR,L

€ 65.00

3

4351027A00
ref: 3

BRACKET,FOOTREST,R

€ 115.50

4

4352227A00
ref: 4

BRACKET,FOOTREST,L

€ 85.00

5

0711010258
ref: 5
07130-10257

BOLT

€ 3.00

6

4357534500
ref: 6

CAP

€ 1.50

7

4352927A00
ref: 7

BOLT,FR FOOTREST

€ 6.50

8

4359627A00
ref: 8
09160-10126

PLATE,SPRING STOP

€ 2.50

9

0611207004
ref: 9
06111-07004

BALL

€ 1.50

10

0944005003
ref: 10

SPRING

€ 1.50

11

4358006B10
ref: 11
43580-06B00

CUSHION,FRONT FOOTREST,RIGHT

€ 10.50

12

4359006B10
ref: 12
43590-06B00

CUSHION,FRONT FOOTREST,LEFT

€ 10.50

13

0833211068
ref: 13
08332-1106A

E RING 6MM

€ 2.00

14-1

4381027A00
ref: 14-1
43810-27A01

BRACKET

€ 100.50

14-2

4381027A01
ref: 14-2

BRACKET,PILLION FOOTREST

€ 100.50

15-1

4382127A00
ref: 15-1
43821-27A01

BRACKET

€ 71.50

15-2

4382127A01
ref: 15-2

BRACKET,PILLION FOOTREST

€ 71.50

16

0711006257
ref: 16
07130-06257

BOLT

€ 2.50

17

0916406009
ref: 17
09164-06013

WASHER

€ 2.50

18

0110706307
ref: 18
01500-06307

BOLT 6X30

€ 2.50

19

0832121067
ref: 19
08321-01067

WASHER,LOCK

€ 2.50

20

0832221067
ref: 20
08322-01067

WASHER

€ 2.00

21-1

4360127A00
ref: 21-1

FOOTREST ASSY,PILLION RH

€ 55.50

21-2

4360227A00
ref: 21-2

FOOTREST ASSY,PILLION LH

€ 52.00

22

4364204A00
ref: 22

BOLT,PILLION FOOTREST

€ 4.50

23-1

4363504A00
ref: 23-1
43635-04A0V

PLATE,SPRING STOP,RIGHT

€ 9.50

23-2

4373504A00
ref: 23-2

PLATE,SPRING STOP LH

€ 4.00

24

0611207004
ref: 24
06111-07004

BALL

€ 1.50

25

0944005003
ref: 25

SPRING

€ 1.50

26

0831931065
ref: 26
08319-3106A

NUT

€ 2.50

27

4361927A00
ref: 27

HOOK

€ 6.00

28

0215204128
ref: 28
02142-04127

SCREW

€ 2.00
