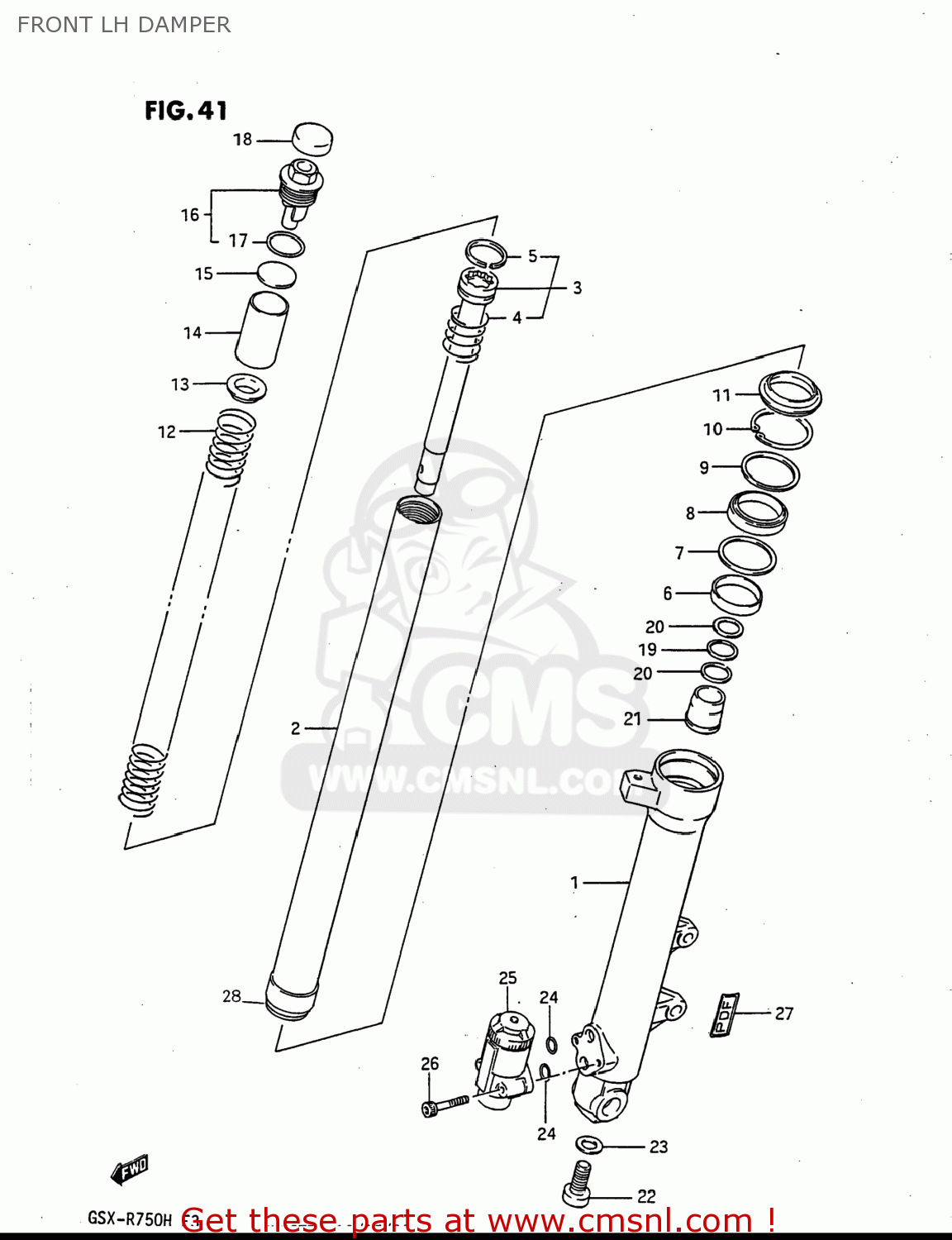

FRONT LH DAMPER

ref

part #

description

quantity

5110427A20
ref:
51104-27A00

DAMPER ASSEMBLY,LEFT

€ 826.00

5110428A00
ref:
51104-27A80

DAMPER ASSEMBLY,LEFT

€ 768.50

1-1

5114027A00
ref: 1-1

TUBE,FORK,LEFT,OUTER

€ 439.00

1-2

5114027A80
ref: 1-2

TUBE,OUTER,LEFT

€ 332.50

2

5111027A00
ref: 2

TUBE,FORK INNER

€ 298.00

3

5114627A00
ref: 3

CYLINDER,FRONT FORK

€ 0.00

4

5117727A00
ref: 4

SPRING,FORK REBOUND

€ 0.00

5

5119624A00
ref: 5

RING,FR FORK PISTON

€ 6.50

6

5116705A00
ref: 6
51167-26E10

METAL,SLIDE

€ 20.50

7

5115805A00
ref: 7

WASHER,FORK OIL SEAL

€ 5.00

8

5115305A00
ref: 8
51153-27C20

OIL SEAL,FRONT FORK

€ 22.00

9

5115827A00
ref: 9

WASHER,FORK OIL SEAL

€ 6.00

10

5115649440
ref: 10

RING,OIL SEAL STOPPER

€ 5.50

11

5117305A00
ref: 11
51173-14F00

DUST SEAL,FRONT FORK

€ 18.50

12

5117127A00
ref: 12

SPRING,FRONT FORK

€ 65.00

13

5117227A00
ref: 13

WASHER

€ 5.50

14

5117627A00
ref: 14

SPACER

€ 9.00

15

5119227A00
ref: 15

WASHER,FR FORK SPRING

€ 5.50

16

5135127A00
ref: 16

CAP,FORK INNER TUBE

€ 48.50

17

5111724A00
ref: 17

O RING

€ 6.00

18

5118900A00
ref: 18

CAP,FORK INNER TUBE

€ 8.50

19

5112327A00
ref: 19

WASHER,OIL LOCK PIECE

€ 4.50

20

5112527A00
ref: 20

SPRING,FORK OIL LOCK PIECE

€ 4.50

21

5119527A00
ref: 21

PIECE,OIL LOCK

€ 24.50

22

5114714200
ref: 22

BOLT(14X25)

€ 5.50

23

5114814200
ref: 23

GASKET (NAS)

€ 2.00

24

5179900A00
ref: 24

O RING

€ 5.50

25

5177027A00
ref: 25

PDF ASSEMBLY

€ 150.50

26

0711006408
ref: 26
07130-06407

BOLT

€ 2.50

27

5116900A10
ref: 27

EMBLEM

€ 0.00
