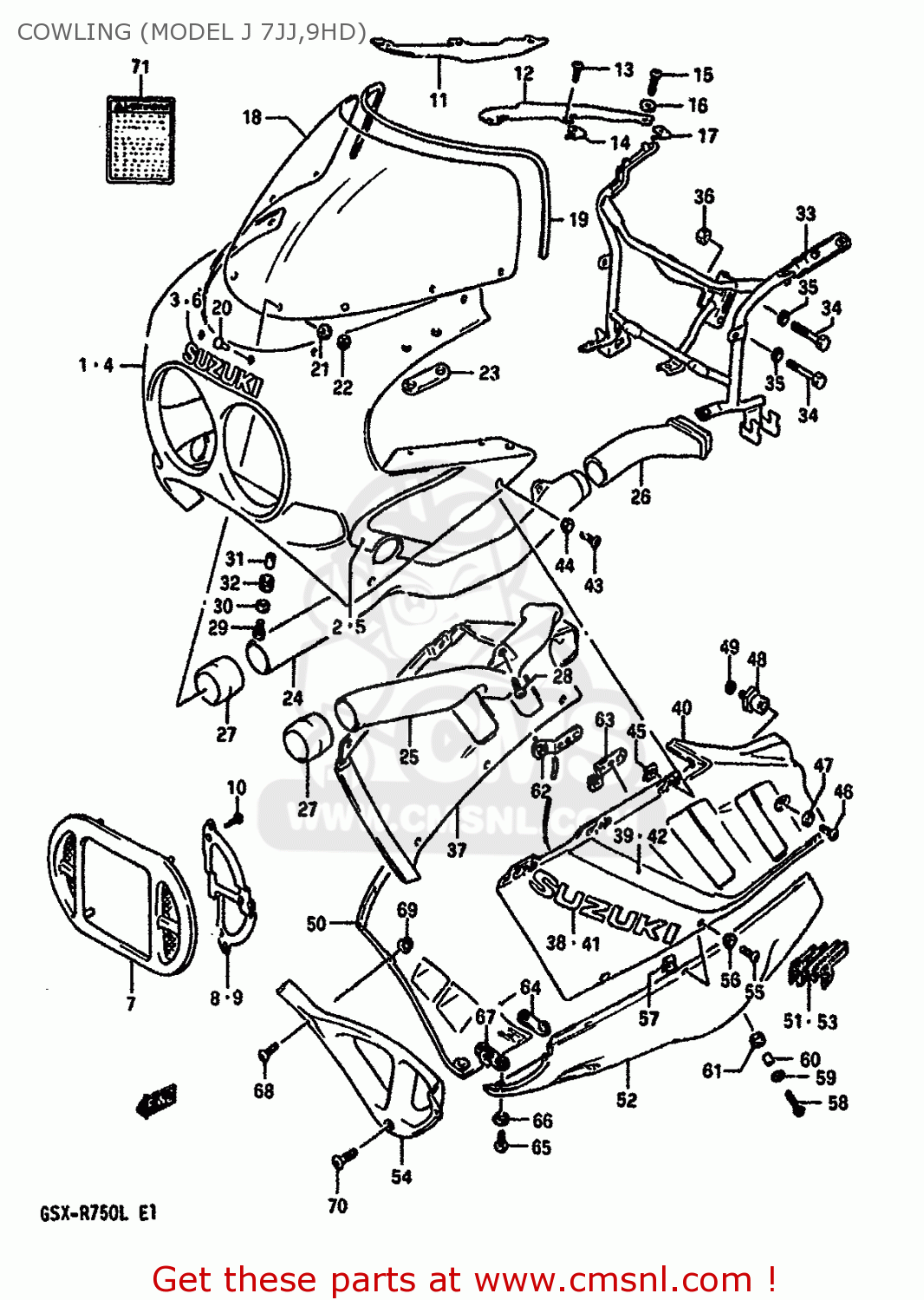

COWLING (MODEL J 7JJ,9HD)

ref

part #

description

quantity

1-1

9440017C307JJ
ref: 1-1

BODY ASSEMBLY,COWLING

€ 1,014.00

1-2

9440017C309HD
ref: 1-2

BODY ASSY,COWLING (BLACK/RED)

€ 1,079.50

2-1

6818017C10019
ref: 2-1
FOR 7JJ

TAPE SET,COWLING,UPPER

€ 29.00

2-2

6818017C10742
ref: 2-2
FOR 9HD

TAPE SET

€ 29.00

3-1

6827104A0022R
ref: 3-1
FOR 7JJ

EMBLEM,COWLING,UPPER (W)

€ 12.00

3-2

6827104A00742
ref: 3-2
FOR 9HD

EMBLEM,LEG SHIELD

€ 13.50

4-1

9440017C407JJ
ref: 4-1
E18

BODY ASSY,COWLING (WHITE/RED)

€ 629.50

4-2

9440017C409HD
ref: 4-2
E18

BODY ASSY,COWLING (BLACK/RED)

€ 711.50

5-1

6818017C10019
ref: 5-1
E18 FOR 7JJ

TAPE SET,COWLING,UPPER

€ 29.00

5-2

6818017C10742
ref: 5-2
E18 FOR 9HD

TAPE SET

€ 29.00

6-1

6827104A0022R
ref: 6-1
E18 FOR 7JJ

EMBLEM,COWLING,UPPER (W)

€ 12.00

6-2

6827104A00742
ref: 6-2
E18 FOR 9HD

EMBLEM,LEG SHIELD

€ 13.50

7-1

9446017C0022R
ref: 7-1
E18 FOR 7JJ

COVER,FRONT (WHITE)

€ 94.00

7-2

9446017C0022P
ref: 7-2
E18 FOR 9HD

COVER,FRONT (RED)

€ 94.00

8

9469117C00
ref: 8
E18

PLATE,COVER RH

€ 13.00

9

9469217C00
ref: 9
E18

PLATE,COVER LH

€ 13.00

10

0354104106
ref: 10
E18

TAPPING SCREW 4X10/A

€ 1.50

11

9443217C00
ref: 11

PANEL,COWLING UPPER,RIGHT

€ 12.00

12

9444217C01
ref: 12

COVER,COWLING,LEFT

€ 12.00

13

0913905033
ref: 13

SCREW(5X10)

€ 2.00

14

0914805023
ref: 14

NUT

€ 1.50

15

0913905025
ref: 15

SCREW(5X14)

€ 2.00

16

0916105010
ref: 16

WASHER(5.2X11X1)

€ 2.00

17

0914805023
ref: 17

NUT

€ 1.50

18-1

9461117C00
ref: 18-1

WINDSCREEN

€ 280.50

18-2

9460017830
ref: 18-2
OPT

CLEAR WINDSCREEN,SMALL

€ 289.50

19-1

9463117C00
ref: 19-1

MOLDING,WINDSCREEN

€ 16.00

19-2

9463117C10
ref: 19-2
E76 (SWEDEN)

MOLDING

€ 0.00

20

9461617C00
ref: 20

PIN,WINDSCREEN

€ 2.50

21

0932004007
ref: 21

CUSHION

€ 3.00

22

0914804010
ref: 22

NUT

€ 2.00

23

9457612C00
ref: 23

CUSHION,RR VIEW MIRRORR

€ 4.50

24

9445117C00
ref: 24

PIPE,AIR INTAKE,FRONT

€ 31.50

25

9445217C00
ref: 25

PIPE,AIR INTAKE,FRONT

€ 30.00

26

9445317C00
ref: 26

PIPE,AIR INTAKE RR,R

€ 23.50

27

9445417C00
ref: 27

JOINT,AIR INTAKE

€ 9.50

28

0214206207
ref: 28

SCREW

€ 2.00

29

0913906028
ref: 29

SCREW(6X20)

€ 3.50

30

0916006056
ref: 30

WASHER(6.5X18X1)

€ 2.00

31

0918006152
ref: 31

SPACER

€ 3.00

32

0932009016
ref: 32

CUSHION

€ 2.50

33

9451017C01
ref: 33

BRACE,COWLING

€ 178.50

34

0110708355
ref: 34

BOLT

€ 3.50

35

0832121084
ref: 35

WASHER,LOCK,8.

€ 2.50

36

0831012085
ref: 36

NUT ,8MM

€ 1.50

37-1

9443017C107JJ
ref: 37-1

COVER COMP,COWLING SIDE,RIGHT

€ 430.50

37-2

9443017C109HD
ref: 37-2

COVER,SIDE RH (BLACK/RED)

€ 375.00

38-1

6811100A5022P
ref: 38-1
FOR 7JJ

EMBLEM,COWLING SIDE (RED)

€ 19.50

38-2

6811100A50742
ref: 38-2
FOR 9HD

EMBLEM,COVER S

€ 14.50

39-1

6868517C10019
ref: 39-1
FOR 7JJ

TAPE,COWLING SIDE STRIPE

€ 35.50

39-2

6868517C10742
ref: 39-2
FOR 9HD

TAPE,RH

€ 0.00

40-1

9444017C107JJ
ref: 40-1

COVER COMP,COWLING SIDE,LEFT

€ 430.50

40-2

9444017C109HD
ref: 40-2

COVER,SIDE LH (BLACK/RED)

€ 443.50

41-1

6811100A5022P
ref: 41-1
FOR 7JJ

EMBLEM,COWLING SIDE (RED)

€ 19.50

41-2

6811100A50742
ref: 41-2
FOR 9HD

EMBLEM,COVER S

€ 14.50

42-1

6869517C10019
ref: 42-1
FOR 7JJ

TAPE,COWLING SIDE STRIPE

€ 29.00

42-2

6869517C10742
ref: 42-2
FOR 9HD

TAPE,LH

€ 0.00

43

0913905032
ref: 43

SCREW(5X18)

€ 2.50

44

0916105017
ref: 44

WASHER(5.2X14X1.5)

€ 3.00

45

9448432B00
ref: 45

NUT,HEADLAMP HOUSING,UPPER

€ 4.00

46

0913906027
ref: 46

SCREW(6X12)

€ 3.00

47

0916106021
ref: 47

WASHER(6.3X16X1.5)

€ 2.50

48

9457004A00
ref: 48

CUSHION,COWLING

€ 12.50

49

0832121064
ref: 49

WASHER,LOCK

€ 2.00

50-1

9447017C107JJ
ref: 50-1

COWLING,UNDER

€ 743.50

50-2

9447017C109HD
ref: 50-2

COWLING,UNDER RH (BLACK/RED)

€ 435.00

51-1

6819206B007JT
ref: 51-1
FOR 7JJ

EMBLEM,COWLING UNDER

€ 12.50

51-2

6819206B007JS
ref: 51-2
FOR 9HD

EMBLEM

€ 9.00

52-1

9448017C107JJ
ref: 52-1

COWLING,UNDER LH (WHITE/RED)

€ 580.00

52-2

9448017C109HD
ref: 52-2

COWLING,UNDER LH (BLACK/RED)

€ 656.50

53-1

6819206B007JT
ref: 53-1
FOR 7JJ

EMBLEM,COWLING UNDER

€ 12.50

53-2

6819206B007JS
ref: 53-2
FOR 9HD

EMBLEM

€ 9.00

54-1

9449817C0022P
ref: 54-1
FOR 7JJ

COWLING,UNDER,CENTER

€ 80.50

54-2

9449817C00019
ref: 54-2
FOR 9HD

COWLING,UNDER FRONT (BLACK)

€ 80.50

55

0913905032
ref: 55

SCREW(5X18)

€ 2.50

56

0916105017
ref: 56

WASHER(5.2X14X1.5)

€ 3.00

57

9448432B00
ref: 57

NUT,HEADLAMP HOUSING,UPPER

€ 4.00

58

0913906028
ref: 58

SCREW(6X20)

€ 3.50

59

0916006056
ref: 59

WASHER(6.5X18X1)

€ 2.00

60

0918006152
ref: 60

SPACER

€ 3.00

61

0932009016
ref: 61

CUSHION

€ 2.50

62

9458017C01
ref: 62

BRACKET

€ 6.00

63

9459017C01
ref: 63

BRACE,COWLING UNDER,LH

€ 7.00

64

9449306B00
ref: 64

BRACE,COWLING LWR COVER RR

€ 4.00

65

0913906039
ref: 65

SCREW(6X16)

€ 2.50

66

0916106021
ref: 66

WASHER(6.3X16X1.5)

€ 2.50

67

9449006B00
ref: 67

BRACE,COWLING LWR COVER

€ 4.50

68

0913905025
ref: 68

SCREW(5X14)

€ 2.00

69

0831626055
ref: 69

NUT

€ 2.00

70

0913906030
ref: 70

SCREW(6X16)

€ 3.50

71-1

6861248B10
ref: 71-1
E4

LABEL (WARNING SCREEN)

€ 6.50

71-2

6861248B00
ref: 71-2
E15,E18,E25,E34,E75,

LABEL (WARNING SCREEN)

€ 6.50

all assemblies
