TURNSIGNAL LAMP

GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)

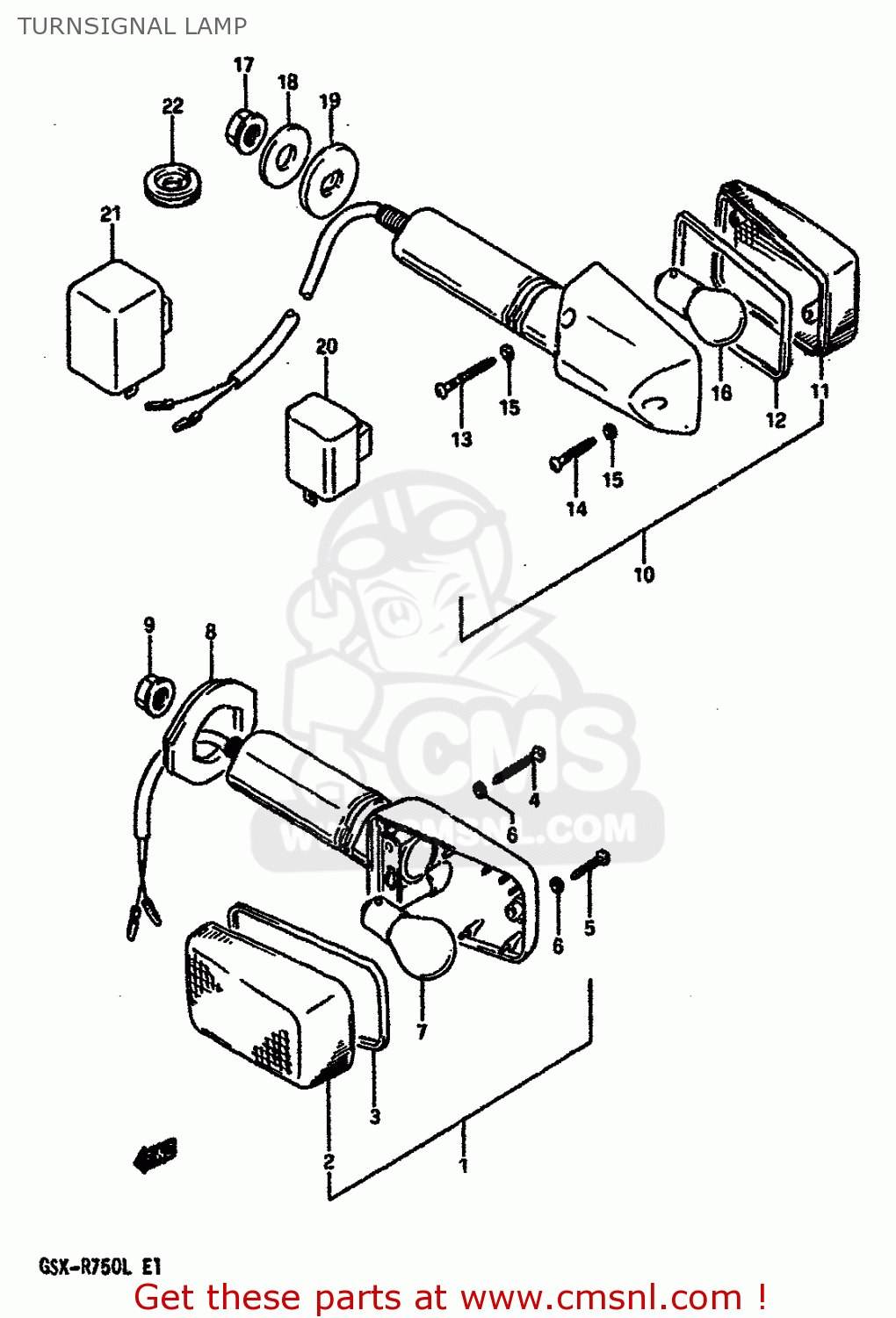

Turnsignal lamp diagram GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)

TURNSIGNAL LAMP GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)
TURNSIGNAL LAMP GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)
TURNSIGNAL LAMP GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)
prices are in EUR
ref
part #
description
quantity
1-1
3560117C20
ref: 1-1
MODEL J
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 70.50
1-2
3560117C21
ref: 1-2
MODEL K/L
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 70.50
2
3561217C20
ref: 2
LENS
3561217C20
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
3561327A00
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
3562327A00
€ 1.50
5
3572540511
ref: 5
SCREW
3572540511
€ 1.50
6
3562727A02
ref: 6
GASKET (NAS)
3562727A02
€ 1.50
7
0947112045
ref: 7
BULB(12V21W)
0947112045
€ 5.00
8-1
3567417C00
ref: 8-1
MODEL J/K
GROMMET,FR TURNSIGNAL
3567417C00
€ 4.50
8-2
3567427A01
ref: 8-2
MODEL L
GROMMET
3567427A01
€ 13.50
9
0831626105
ref: 9
NUT
0831626105
€ 3.50
10-1
3560317C40999
ref: 10-1
MODEL J
LAMP ASSY, REAR TURNSIGNAL
€ 76.00
10-2
3560317C41999
ref: 10-2
MODEL K/L
LAMP ASSY,RR TURNSIGNAL
3560317C41999
€ 76.00
10-3
3560317C50999
ref: 10-3
MODEL J E15, E76,E79
LAMP ASSY, REAR TURNSIGNAL
€ 68.00
10-4
3560317C51999
ref: 10-4
MODEL K E15,E16,E22,
LAMP ASSY,RR TURNSIGNAL
3560317C51999
€ 68.00
11
3565217C20
ref: 11
LENS
3565217C20
€ 6.50
12
3561327A00
ref: 12
GASKET (NAS)
3561327A00
€ 3.00
13
3562327A00
ref: 13
SCREW(3X30)
3562327A00
€ 1.50
14
3572540511
ref: 14
SCREW
3572540511
€ 1.50
15
3562727A02
ref: 15
GASKET (NAS)
3562727A02
€ 1.50
16
0947112045
ref: 16
BULB(12V21W)
0947112045
€ 5.00
17
0831626105
ref: 17
NUT
0831626105
€ 3.50
18
0916010094
ref: 18
WASHER(10.5X30X3.2)
0916010094
€ 3.50
19
3569517C00
ref: 19
SPACER,RR TURNSIGNAL
3569517C00
€ 3.00
20
3861031310
ref: 20
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
21
3861031310
ref: 21
E22,E76
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
22-1
0930807011
ref: 22-1
MODEL J/K
GROMMET
0930807011
€ 3.50
22-2
0930807013
ref: 22-2
MODEL L
GROMMET
0930807013
€ 3.50
