OIL PAN (MODEL L)

GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)

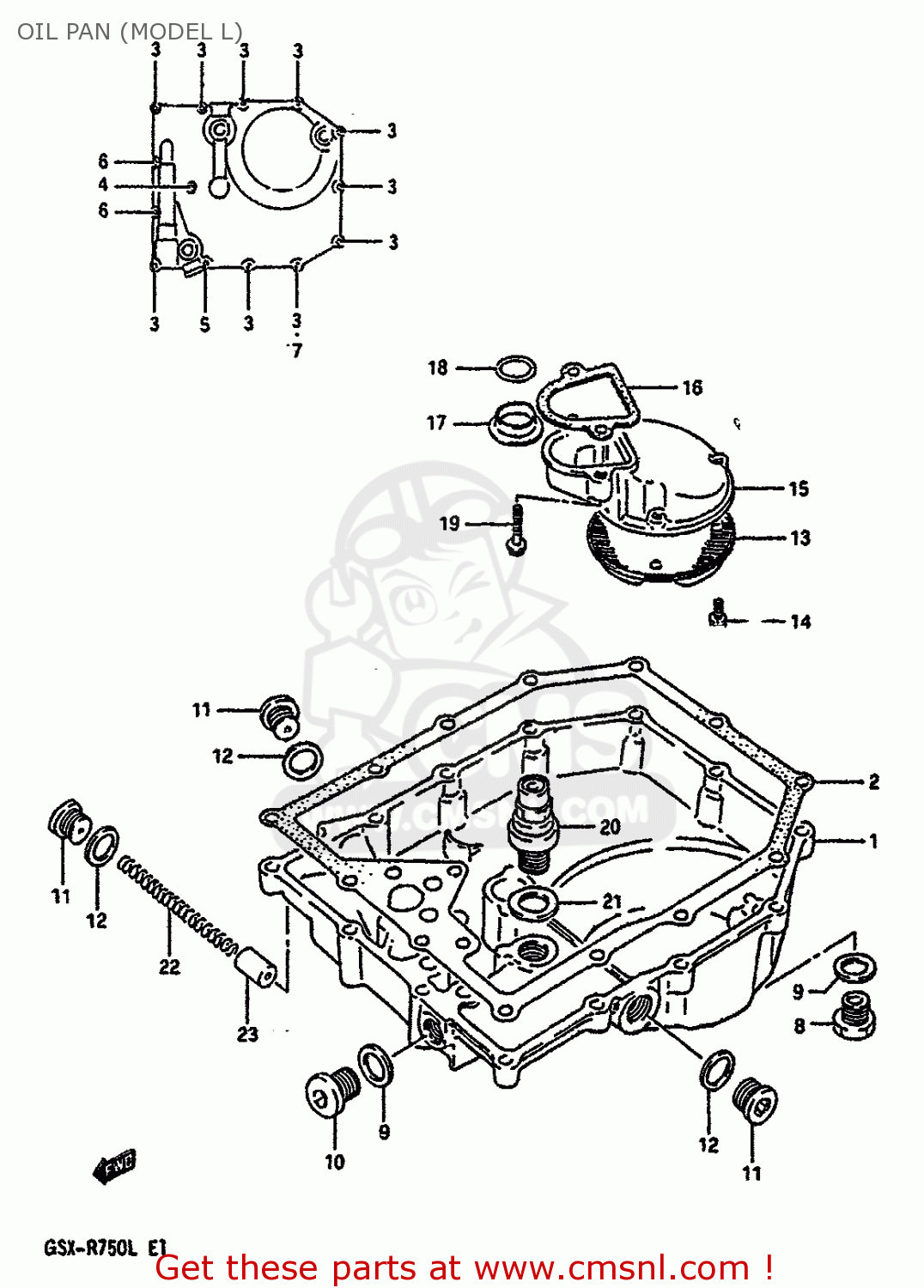

Oil pan (model l) diagram GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)

OIL PAN (MODEL L) GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)
OIL PAN (MODEL L) GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)
OIL PAN (MODEL L) GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)
prices are in EUR
ref
part #
description
quantity
1
1151117D00
ref: 1
PAN,OIL
€ 156.00
2-1
1148927A00
ref: 2-1
GASKET,OIL PAN (NAS)
1148927A00
€ 23.00
2-2
1148927A00H17
ref: 2-2
E17
GASKET,OIL PAN (NA)
€ 23.00
3
0711006257
ref: 3
BOLT
€ 2.50
4
0711006357
ref: 4
BOLT
€ 3.50
5
0711006408
ref: 5
BOLT
€ 2.50
6
0711006458
ref: 6
BOLT
€ 2.50
7
0916806024
ref: 7
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
8
0924714001
ref: 8
PLUG
0924714001
€ 5.00
9
0916814004
ref: 9
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
10
0924814004
ref: 10
PLUG
0924814004
€ 5.00
11
0924816010
ref: 11
PLUG
0924816010
€ 4.50
12
0916816002
ref: 12
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
13
1652009301
ref: 13
STRAINER,ENGINE OIL
1652009301
€ 14.00
14
0113706128
ref: 14
BOLT
€ 2.50
15
1652506B00
ref: 15
PROTECTOR,OIL STRAINER
1652506B00
€ 33.50
16-1
1652827A02
ref: 16-1
GASKET,OIL STRAINER PROTECTOR (NAS)
1652827A02
€ 9.00
16-2
1652827A02H17
ref: 16-2
E17
GASKET,PROTECTOR (NA)
€ 9.00
17
1652927A01
ref: 17
GASKET,OIL OUTLET (NAS)
1652927A01
€ 2.00
18
0928018009
ref: 18
O RING(D:3.2,ID:17.8)
0928018009
€ 8.00
19
0151706257
ref: 19
BOLT 6X25
€ 2.50
20
1644017C00
ref: 20
VALVE ASSEMBLY,OIL RELIEF
€ 68.50
21
0916816002
ref: 21
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
22
0944009027
ref: 22
SPRING
0944009027
€ 4.50
23
1644234301
ref: 23
PLUNGER,OIL CONTROLL
1644234301
€ 16.00
