FUEL TANK (MODEL L)

GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)

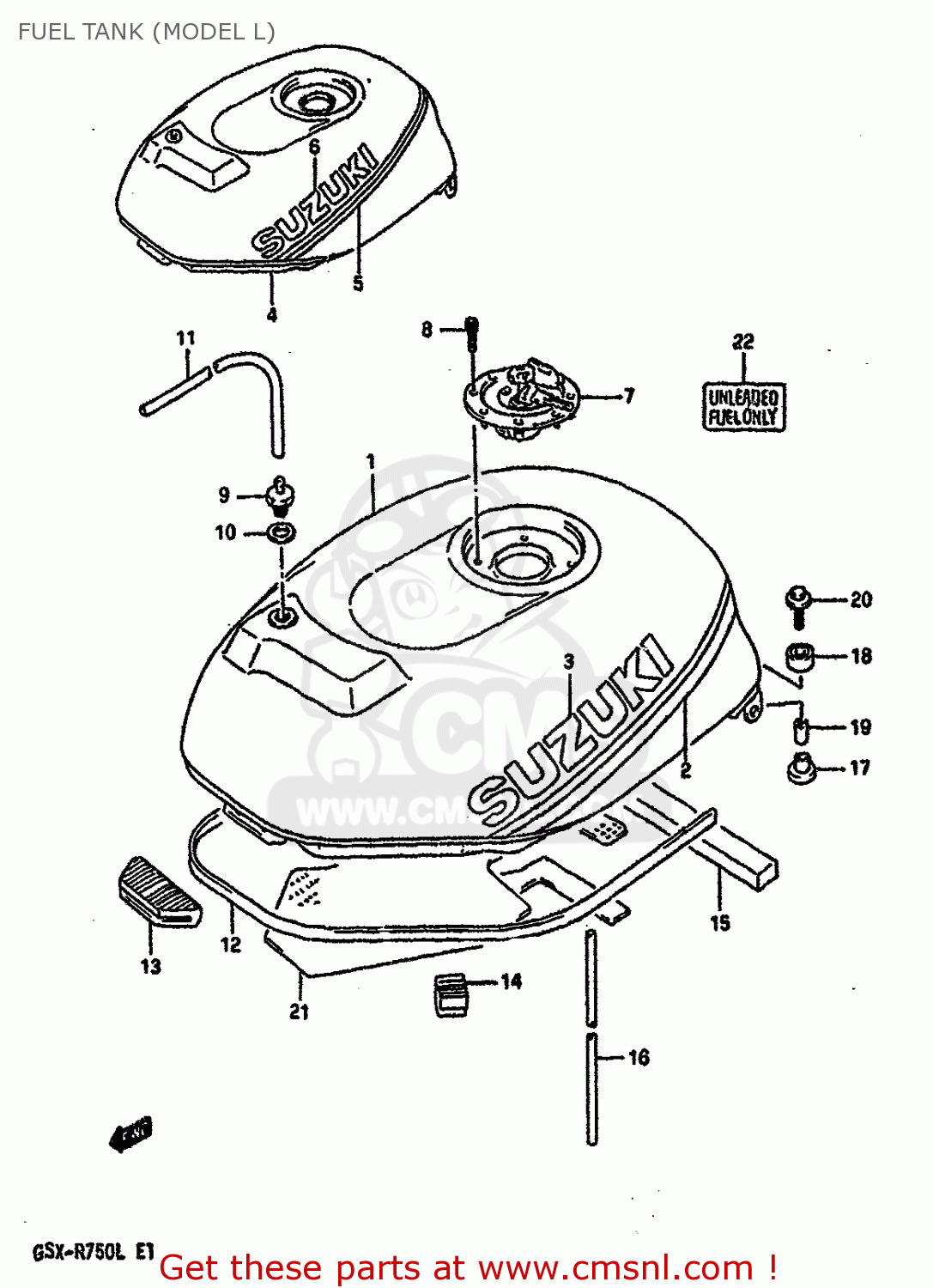

Fuel tank (model l) diagram GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)

FUEL TANK (MODEL L) GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)
FUEL TANK (MODEL L) GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)
FUEL TANK (MODEL L) GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)
prices are in EUR
ref
part #
description
quantity
1-1
4410017D013SL
ref: 1-1
TANK ASSEMBLY,FUEL
€ 1,023.00
1-2
4410017D713SL
ref: 1-2
E22
TANK ASSEMBLY,FUEL
€ 1,023.00
1-3
4910017D313SL
ref: 1-3
E18
TANK ASSY,FUEL
€ 734.00
1-4
4410017D003RZ
ref: 1-4
TANK ASSEMBLY,FUEL
€ 1,023.00
1-5
4410017D703RZ
ref: 1-5
E22
TANK ASSY,FUEL
€ 1,023.00
1-6
4910017D313RZ
ref: 1-6
E18
TANK ASSY,FUEL
€ 0.00
2-1
6811517D013SH
ref: 2-1
FOR 3SL
TAPE,FUEL TANK
6811517D013SH
€ 47.00
2-2
6811517D013SP
ref: 2-2
FOR 3RZ
TAPE,FUEL TANK
€ 39.00
3-1
6811112C000NE
ref: 3-1
FOR 3SL
EMBLEM,FUEL TANK
6811112C000NE
€ 19.50
3-2
6811112C00019
ref: 3-2
FOR 3RZ
EMBLEM,FUEL TANK
€ 12.00
4-1
4410017D113CG
ref: 4-1
TANK ASSY,FUEL
€ 1,191.50
4-2
4410017D813CG
ref: 4-2
E22
TANK ASSY,FUEL
€ 1,191.50
4-3
4910017D413CG
ref: 4-3
E18
TANK ASSY,FUEL
€ 592.50
5
6811517D113CG
ref: 5
FOR 3CG
TAPE,FUEL TANK
€ 55.00
6
6811112C00742
ref: 6
FOR 3CG
EMBLEM,FUEL TANK
€ 18.00
7
4420101851
ref: 7
CAP SET,FUEL TANK
€ 166.50
8
0910605017
ref: 8
BOLT(5X20)
0910605017
€ 3.00
9
4424006B10
ref: 9
PLUG,FUEL TANK BREATHER
4424006B10
€ 36.00
10
0916812012
ref: 10
GASKET(12.5X20X2.5) (NAS)
0916812012
€ 2.00
11
0935250823600
ref: 11
HOSE(5X8.2X600)
0935250823600
€ 13.00
12
6824127A00
ref: 12
MOLDING,FUEL TANK
6824127A00
€ 23.00
13
4451117C00
ref: 13
CUSHION,FUEL TANK FR
4451117C00
€ 8.50
14
4454540C00A
ref: 14
CUSHION,FUEL TANK SIDE
4454540C00A
€ 9.50
15
4415117C00
ref: 15
CUSHION, AIR SEAL
€ 18.00
16
093525082300A
ref: 16
HOSE
€ 13.00
17
0932010038
ref: 17
CUSHION
0932010038
€ 4.00
18
0932014017
ref: 18
CUSHION
0932014017
€ 3.00
19
0918006072
ref: 19
SPACER
0918006072
€ 2.00
20
0911606097
ref: 20
BOLT(6X35)
0911606097
€ 2.50
21-1
4419117D00
ref: 21-1
SHIELD,FUEL TANK HEAT
€ 27.50
21-2
4419117D10
ref: 21-2
E18
SHIELD,FUEL TANK HEAT
4419117D10
€ 104.50
21-3
4419140C10
ref: 21-3
E18
HEAT SHIELD,FUEL TANK IN
€ 39.00
22
8693273060
ref: 22
LABEL,FUEL CAUTION
8693273060
€ 4.00
24
4442317C00
ref: 24
HOSE
€ 13.00
25
8693273060
ref: 25
E75 (AUSTRALIA)
LABEL,FUEL CAUTION
8693273060
€ 4.00
