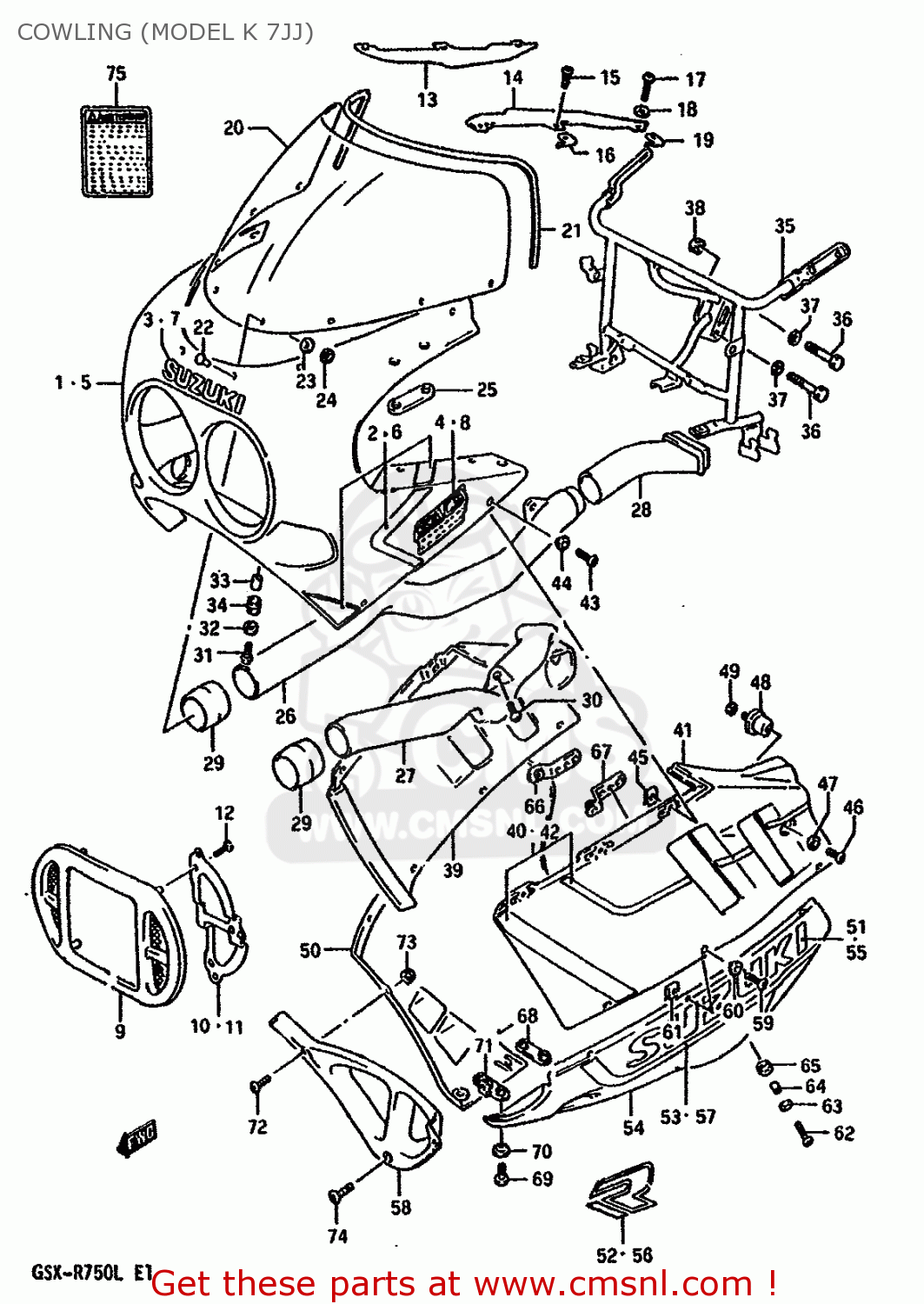

COWLING (MODEL K 7JJ)

ref

part #

description

quantity

1-1

9440018C107JJ
ref: 1-1
CLEAR COATING

BODY ASSY,COWLING (WHITE/RED)

€ 907.00

1-2

9440018C117JJ
ref: 1-2
NO CLEAR COATING

BODY ASSY,COWLING (WHITE/RED)

€ 907.00

2

6818017C307JT
ref: 2

TAPE SET,COWLING,UPPER

€ 41.00

3

6827104A0022R
ref: 3

EMBLEM,COWLING,UPPER (W)

€ 12.00

4

6868127B107JJ
ref: 4

EMBLEM

€ 8.50

5-1

9440018C407JJ
ref: 5-1
E18,CLEAR COATING

BODY ASSY,COWLING (WHITE/RED)

€ 504.00

5-2

9440018C417JJ
ref: 5-2
E18,NO CLEAR COATING

BODY ASSY,COWLING (WHITE/RED)

€ 504.00

6

6818017C307JT
ref: 6
E18

TAPE SET,COWLING,UPPER

€ 41.00

7

6827104A0022R
ref: 7
E18

EMBLEM,COWLING,UPPER (W)

€ 12.00

8

6868127B107JJ
ref: 8
E18

EMBLEM

€ 8.50

9-1

9446017C0022P
ref: 9-1
E18,CLEAR COATING

COVER,FRONT (RED)

€ 94.00

9-2

9446017C0122P
ref: 9-2
E18,NO CLEAR COATING

COVER,FRONT (RED)

€ 94.00

10

9469117C00
ref: 10
E18

PLATE,COVER RH

€ 13.00

11

9469217C00
ref: 11
E18

PLATE,COVER LH

€ 13.00

12

0354104106
ref: 12
E18

TAPPING SCREW 4X10/A

€ 1.50

13

9443217C00
ref: 13

PANEL,COWLING UPPER,RIGHT

€ 12.00

14

9444217C01
ref: 14

COVER,COWLING,LEFT

€ 12.00

15

0913905033
ref: 15

SCREW(5X10)

€ 2.00

16

0914805023
ref: 16

NUT

€ 1.50

17

0913905025
ref: 17

SCREW(5X14)

€ 2.00

18

0916105010
ref: 18

WASHER(5.2X11X1)

€ 2.00

19

0914805023
ref: 19

NUT

€ 1.50

20-1

9461117C00
ref: 20-1

WINDSCREEN

€ 280.50

20-2

9460017830
ref: 20-2
OPT

CLEAR WINDSCREEN,SMALL

€ 289.50

21-1

9463117C00
ref: 21-1

MOLDING,WINDSCREEN

€ 16.00

21-2

9463117C10
ref: 21-2
E17

MOLDING

€ 0.00

22

9461617C00
ref: 22

PIN,WINDSCREEN

€ 2.50

23

0932004007
ref: 23

CUSHION

€ 3.00

24

0914804010
ref: 24

NUT

€ 2.00

25

9457612C00
ref: 25

CUSHION,RR VIEW MIRRORR

€ 4.50

26

9445117C00
ref: 26

PIPE,AIR INTAKE,FRONT

€ 31.50

27

9445217C00
ref: 27

PIPE,AIR INTAKE,FRONT

€ 30.00

28

9445317C00
ref: 28

PIPE,AIR INTAKE RR,R

€ 23.50

29

9445417C00
ref: 29

JOINT,AIR INTAKE

€ 9.50

30

0214206207
ref: 30

SCREW

€ 2.00

31

0913906056
ref: 31

SCREW(6X20)

€ 3.00

32

0916006056
ref: 32

WASHER(6.5X18X1)

€ 2.00

33

0918006152
ref: 33

SPACER

€ 3.00

34

0932009016
ref: 34

CUSHION

€ 2.50

35

9451017C13
ref: 35

BRACE,COWLING

€ 184.00

36

0110708355
ref: 36

BOLT

€ 3.50

37

0832121084
ref: 37

WASHER,LOCK,8.

€ 2.50

38

0831012085
ref: 38

NUT ,8MM

€ 1.50

39-1

9443017C407JJ
ref: 39-1
CLEAR COATING

COVER,COWLING SIDE,RIGHT

€ 208.50

39-2

9443017C417JJ
ref: 39-2
NO CLEAR COATING

COVER,COWLING SIDE,RIGHT

€ 208.50

40

6868017C00019
ref: 40

TAPE SET,COWLING SIDE

€ 25.00

41-1

9444017C407JJ
ref: 41-1
CLEAR COATING

COVER,COWLING SIDE,LEFT

€ 406.00

41-2

9444017C417JJ
ref: 41-2
NO CLEAR COATING

COVER,COWLING SIDE,LEFT

€ 406.00

42

6869017C00019
ref: 42

TAPE SET,COWLING SIDE

€ 25.00

43

0913905032
ref: 43

SCREW(5X18)

€ 2.50

44

0916105017
ref: 44

WASHER(5.2X14X1.5)

€ 3.00

45

9448432B00
ref: 45

NUT,HEADLAMP HOUSING,UPPER

€ 4.00

46

0913906027
ref: 46

SCREW(6X12)

€ 3.00

47

0916106021
ref: 47

WASHER(6.3X16X1.5)

€ 2.50

48

9457004A00
ref: 48

CUSHION,COWLING

€ 12.50

49

0832121064
ref: 49

WASHER,LOCK

€ 2.00

50-1

9447018C107JJ
ref: 50-1
CLEAR COATING

COWLING,UNDER,RIGHT

€ 441.50

50-2

9447018C117JJ
ref: 50-2
NO CLEAR COATING

COWLING,UNDER,RIGHT

€ 441.50

51

6811100A5022P
ref: 51

EMBLEM,COWLING SIDE (RED)

€ 19.50

52

6819106B007JT
ref: 52

EMBLEM,COWLING,UNDER

€ 15.00

53

6819517C00019
ref: 53

TAPE,COWLING,UNDER,RIGHT

€ 22.50

54-1

9448018C107JJ
ref: 54-1
CLEAR COATING

COWLING,UNDER,LEFT

€ 529.50

54-2

9448018C117JJ
ref: 54-2
NO CLEAR COATING

COWLING,UNDER,LEFT

€ 529.50

55

681113320022P
ref: 55

EMBLEM,COWLING,UNDER (R)

€ 10.50

56

6819106B007JT
ref: 56

EMBLEM,COWLING,UNDER

€ 15.00

57

6827517C00019
ref: 57

TAPE,COWLING,UNDER,LEFT

€ 22.50

58-1

9449817C0022P
ref: 58-1
CLEAR COATING

COWLING,UNDER,CENTER

€ 80.50

58-2

9449817C01
ref: 58-2
NO CLEAR COATING

COWLING,UNDER,CENTER

€ 80.50

59

0913905032
ref: 59

SCREW(5X18)

€ 2.50

60

0916105017
ref: 60

WASHER(5.2X14X1.5)

€ 3.00

61

9448432B00
ref: 61

NUT,HEADLAMP HOUSING,UPPER

€ 4.00

62

0913906028
ref: 62

SCREW(6X20)

€ 3.50

63

0916006056
ref: 63

WASHER(6.5X18X1)

€ 2.00

64

0918006152
ref: 64

SPACER

€ 3.00

65

0932009016
ref: 65

CUSHION

€ 2.50

66

9458017C01
ref: 66

BRACKET

€ 6.00

67

9459017C01
ref: 67

BRACE,COWLING UNDER,LH

€ 7.00

68

9449306B00
ref: 68

BRACE,COWLING LWR COVER RR

€ 4.00

69

0913906039
ref: 69

SCREW(6X16)

€ 2.50

70

0916106021
ref: 70

WASHER(6.3X16X1.5)

€ 2.50

71

9449006B00
ref: 71

BRACE,COWLING LWR COVER

€ 4.50

72

0913905025
ref: 72

SCREW(5X14)

€ 2.00

73

0831626055
ref: 73

NUT

€ 2.00

74

0913906030
ref: 74

SCREW(6X16)

€ 3.50

75-1

6861248B10
ref: 75-1
E4

LABEL (WARNING SCREEN)

€ 6.50

75-2

6861248B00
ref: 75-2

LABEL (WARNING SCREEN)

€ 6.50

all assemblies
