SIGNAL GENERATOR

GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)

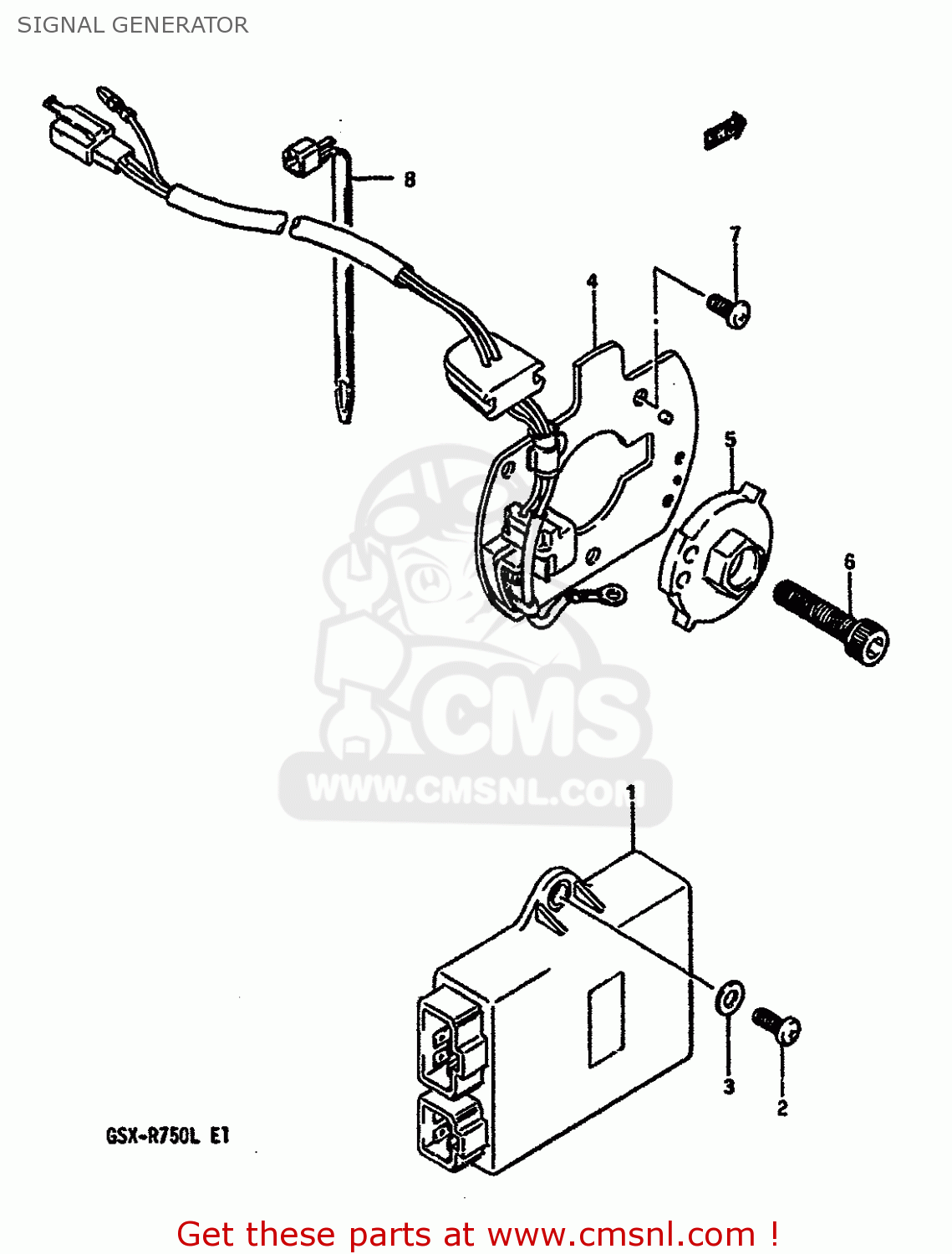

Signal generator diagram GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)

prices are in EUR

ref

part #

description

quantity

1-1

3290017C00
ref: 1-1
MODEL J/K

IGNITER UNIT

€ 580.50

1-2

3290017D00
ref: 1-2
MODEL L

IGNITOR

€ 514.00

0211206126
ref: 2

SCREW

€ 1.50

0832221066
ref: 3

WASHER, LOWER

€ 2.00

3311017C00
ref: 4

GENERATOR ASSY,SIGNAL

€ 324.00

3312019C00
ref: 5

ROTOR,SIGNAL

€ 182.00

0711008306
ref: 6

BOLT

€ 3.00

0211205107
ref: 7

SCREW

€ 2.00

0940714403
ref: 8

CLAMP(L:125)

€ 2.50
