STARTER CLUTCH

GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)

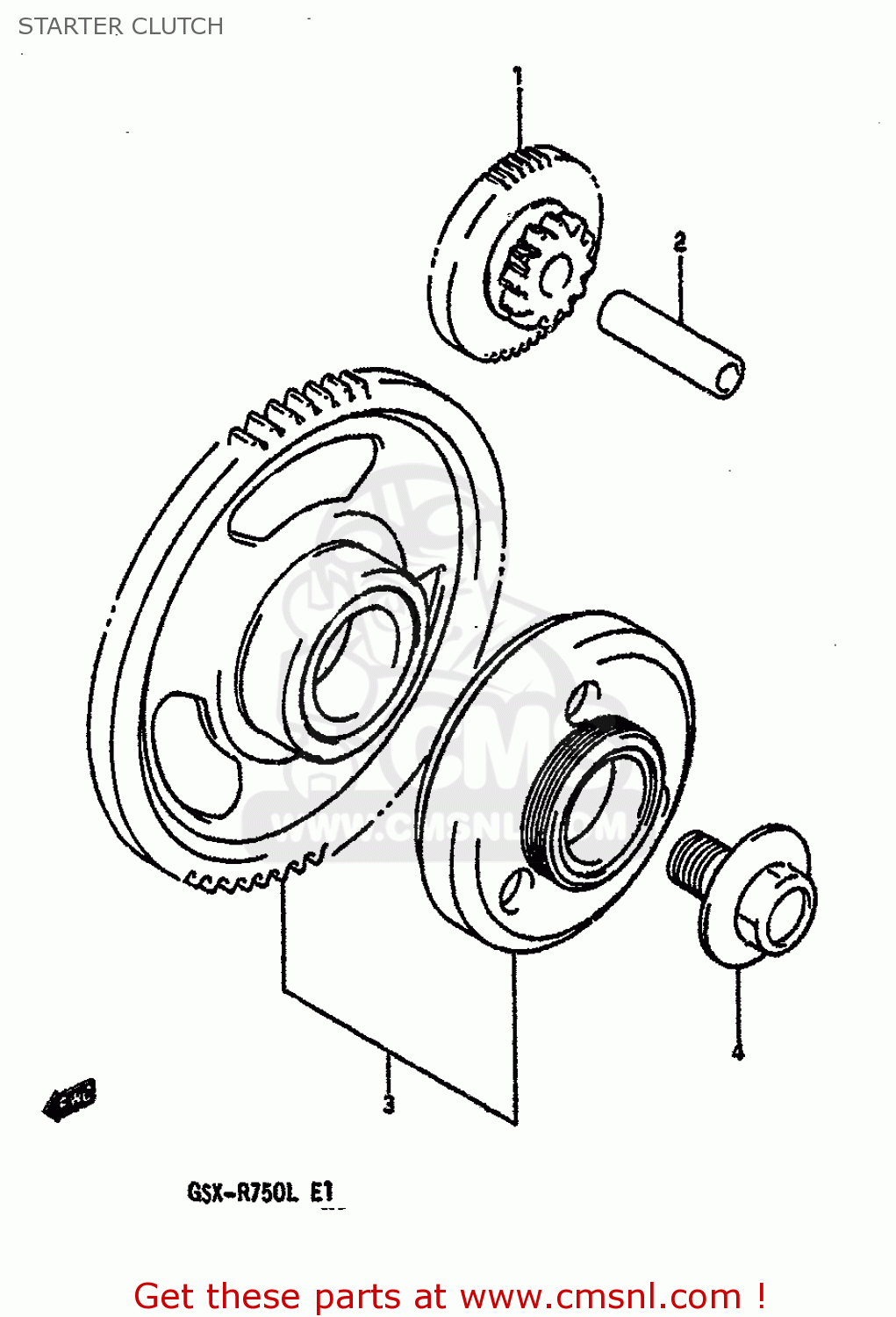

Starter clutch diagram GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)

STARTER CLUTCH GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)

STARTER CLUTCH GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)

prices are in EUR

ref

part #

description

quantity

1

1261127A01
ref: 1

GEAR,STARTER IDLE

€ 52.00

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3

1260017810
ref: 3

CLUTCH SET,STARTER

€ 377.50

4

0910314005
ref: 4

BOLT(14X21)

€ 17.00
