ELECTRICAL

GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)

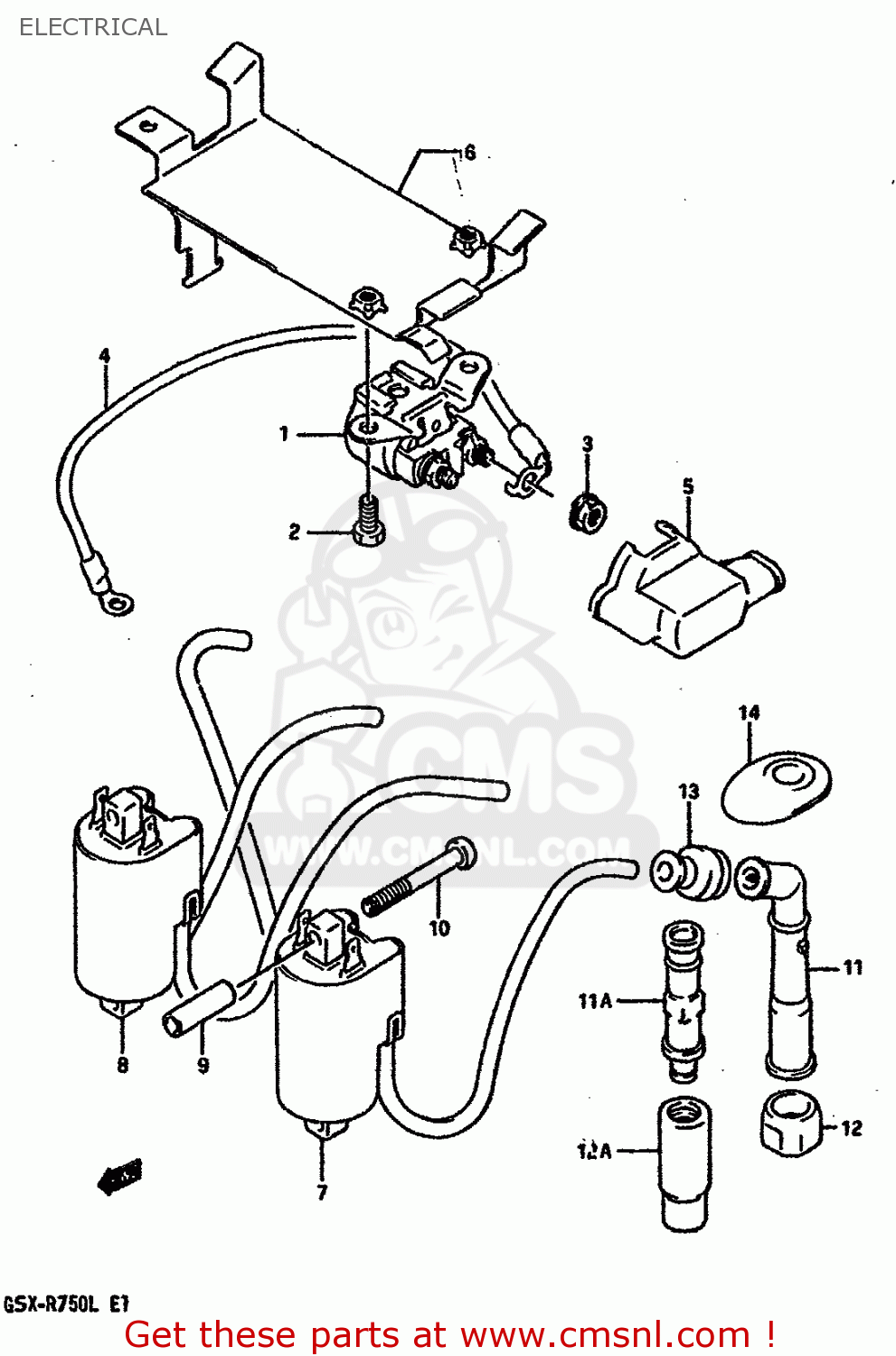

Electrical diagram GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)

ELECTRICAL GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)
ELECTRICAL GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)
ELECTRICAL GSXR750 1988 (J) (E04 E15 E18 E25 E34 E75 E76 E79)
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
3180049100
€ 89.00
2-1
0912806004
ref: 2-1
MODEL J/K
SCREW(6X10)
0912806004
€ 1.50
2-2
0912806013
ref: 2-2
MODEL L
SCREW(6X8)
0912806013
€ 1.50
3
0836135066
ref: 3
NUT
€ 2.00
4
3385017C00
ref: 4
WIRE,STARTER MOTOR LEAD
€ 29.00
5
3186119C00
ref: 5
COVER,RELAY ASSEMBLY
€ 6.50
6
4741017C00
ref: 6
HOLDER COMP,ELECTRONIC PARTS
4741017C00
€ 15.00
7
3341017C00
ref: 7
COIL ASSEMBLY,IGNITION (1-4)
3341017C00
€ 199.00
8-1
3342017C00
ref: 8-1
COIL ASSEMBLY,IGNITION (2-3)
€ 199.00
8-2
3342017C10
ref: 8-2
E18
COIL ASSEMBLY,IGNITION
€ 199.00
9-1
0918006179
ref: 9-1
MODEL J/K,EXCEPT E18
SPACER(6.4X10X32)
0918006179
€ 5.00
9-2
0918006146
ref: 9-2
MODEL L
SPACER (6.5X10.5X31.7)
0918006146
€ 3.50
10-1
0211206558
ref: 10-1
MODEL J/K,EXCEPT E18
SCREW
0211206558
€ 2.50
10-2
0211206556
ref: 10-2
MODEL L,EXCEPT E18
SCREW
0211206556
€ 2.00
11
3351048B10
ref: 11
MODEL J/K
CAP,SPARK PLUG
3351048B10
€ 29.50
11A
3351007D00
ref: 11A
MODEL L
CAP,SPARK PLUG
3351007D00
€ 42.00
12
3354148B00
ref: 12
MODEL J/K
SEAL,SPARK PLUG
3354148B00
€ 7.00
12A
3354120C00
ref: 12A
MODEL L
SEAL,SPARK PLUG
3354120C00
€ 19.50
13
3354238B00
ref: 13
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
14
3354348B00
ref: 14
COVER,SPARK PLUG CAP
3354348B00
€ 12.50
