CAM SHAFT - VALVE (MODEL L)

GSXR750 1988 (J) USA (E03)

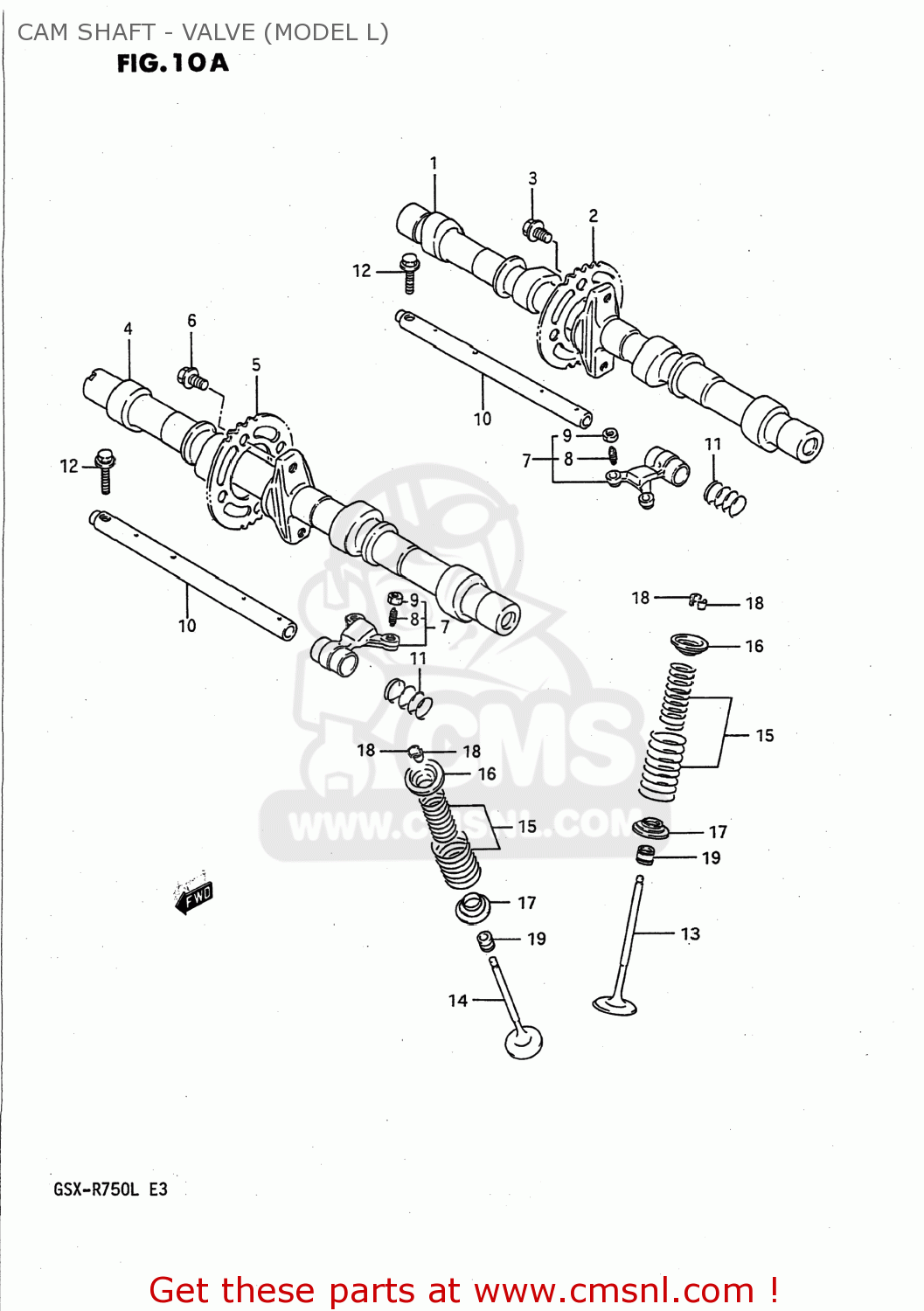

Cam shaft - valve (model l) diagram GSXR750 1988 (J) USA (E03)

CAM SHAFT - VALVE (MODEL L) GSXR750 1988 (J) USA (E03)

CAM SHAFT - VALVE (MODEL L) GSXR750 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1271117D01
ref: 1
12711-17D30

CAMSHAFT

€ 244.50

2

1274127A00
ref: 2

SPROCKET,CAMSHAFT

€ 41.00

3

0910307001
ref: 3

BOLT(7X11)

€ 2.00

4

1272117D01
ref: 4
12721-17D10

CAMSHAFT,EXHAUST

€ 294.00

5

1274127A00
ref: 5

SPROCKET,CAMSHAFT

€ 41.00

6

0910307001
ref: 6

BOLT(7X11)

€ 2.00

7

1284017C01
ref: 7
12840-27A01

ARM,VALVE ROCKER

€ 49.50

8

1284249210
ref: 8
12842-49201

SCREW,TAPPET ADJUSTING

€ 5.50

9

1284304A00
ref: 9
12843-27A00

NUT,ADJUSTING

€ 3.00

10

1286127A00
ref: 10

SHAFT,VALVE ROCKER ARM

€ 31.00

11

0944013014
ref: 11

SPRING

€ 2.50

12

0171706306
ref: 12
01550-0630A

BOLT

€ 2.50

13

1291117D00
ref: 13

VALVE,INTAKE

€ 24.50

14

1291217D00
ref: 14

VALVE,EXHAUST

€ 34.50

15

1292017C00
ref: 15

SPRING SET,VALVE

€ 15.50

16

1293117C00
ref: 16
12931-17C02

RETAINER,VALVE SPRING

€ 7.00

17

1293317C00
ref: 17

SEAT,VALVE SPRING

€ 6.50

18

1293227A00
ref: 18

COTTER VALVE

€ 2.50

19

0928905011
ref: 19

SEAL,OIL(5X10X9.7)

€ 6.00
