CLUTCH (MODEL L)

GSXR750 1988 (J) USA (E03)

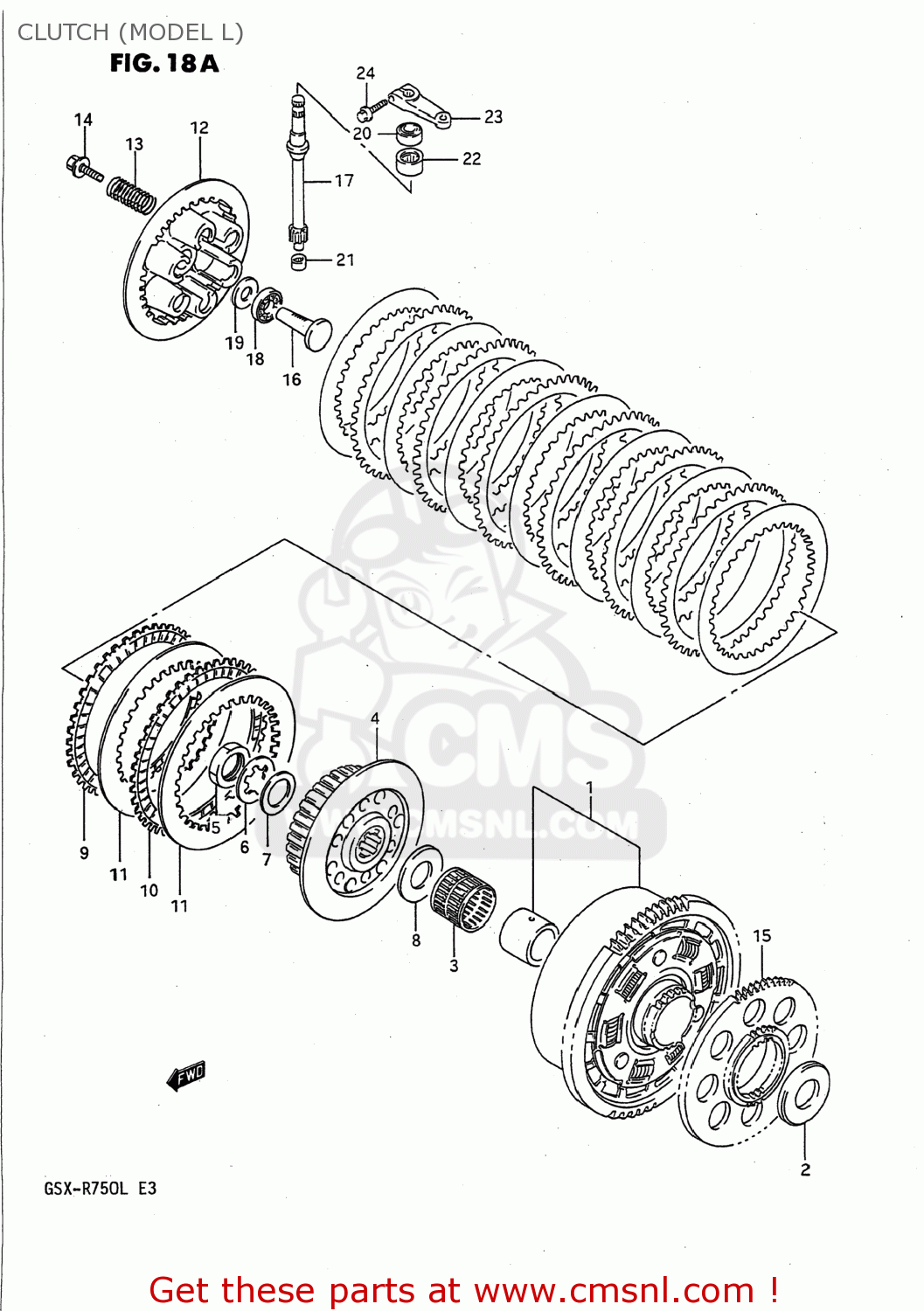

Clutch (model l) diagram GSXR750 1988 (J) USA (E03)

CLUTCH (MODEL L) GSXR750 1988 (J) USA (E03)

CLUTCH (MODEL L) GSXR750 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

2120007861
ref: 1
21200-07867

GEAR ASSEMBLY,PRIMARY DRIVE

€ 235.50

2

0916025067
ref: 2

WASHER(25X54X2.5)

€ 9.00

3

0926335017
ref: 3

BEARING(35X40X35.8)

€ 36.50

4

2141017D00
ref: 4
21410-17D01

HUB,CLUTCH SLEEVE

€ 101.50

5

0914024012
ref: 5

NUT

€ 6.00

6

0916725007
ref: 6

WASHER,LOCK

€ 7.50

7

0916424006
ref: 7

WASHER

€ 4.00

8

0916025056
ref: 8

WASHER(25X50X2.5)

€ 9.50

9

2144120C00
ref: 9

PLATE,CLUTCH DRIVE (NAS)

€ 23.50

10

2144217C00
ref: 10

PLATE,CLUTCH DRIVE NO.2 (NAS)

€ 19.00

11

2145117C00
ref: 11

PLATE,CLUTCH DRIVEN (NAS)

€ 9.50

12

2146217D00
ref: 12
21462-17E01

DISC,CLUTCH PRESSURE

€ 76.00

13

0944020020
ref: 13

SPRING

€ 8.50

14

0911606150
ref: 14

BOLT(6X25)

€ 2.50

15

2272117D00
ref: 15
22721-17D02

GEAR,GENERATOR DRIVE

€ 140.00

15

2272117D00
ref: 15
22721-17D02

GEAR,GENERATOR DRIVE

€ 140.00

16

2316507D00
ref: 16
23165-21E00

RACK,CLUTCH RELEASE

€ 82.00

17

2326117C00
ref: 17

PINION,CLUTCH RELEASE

€ 38.00

18

0926315003
ref: 18

BEARING(15X28X2)

€ 7.00

19

0916015015
ref: 19
09160-15045

WASHER

€ 4.00

20

0928512002
ref: 20
09285-12006

OIL SEAL

€ 7.00

21

0926310013
ref: 21
09263-10014

BEARING 10X14X10

€ 12.00

22

0926315012
ref: 22

BEARING(15X22X12)

€ 11.50

23

2327117C00
ref: 23

ARM,CLUTCH RELEASE

€ 45.50

24

0154706207
ref: 24

BOLT

€ 2.50
