REAR SWINGING ARM (MODEL L)

GSXR750 1988 (J) USA (E03)

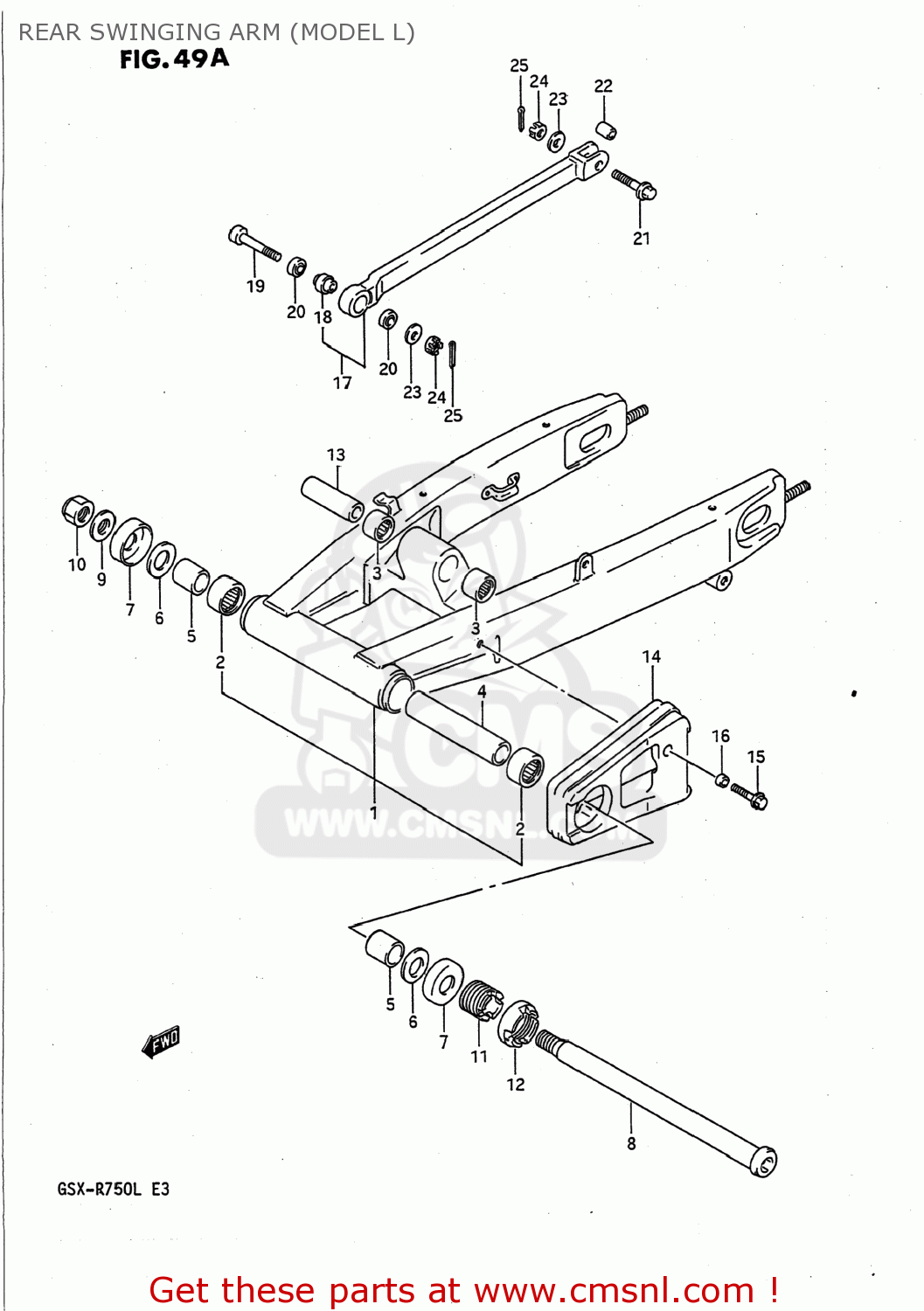

Rear swinging arm (model l) diagram GSXR750 1988 (J) USA (E03)

REAR SWINGING ARM (MODEL L) GSXR750 1988 (J) USA (E03)

REAR SWINGING ARM (MODEL L) GSXR750 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6100017D00
ref: 1

SWING ARM ASSEMBLY,REAR

€ 1,130.00

2

0926325024
ref: 2

BEARING(25X33X30)

€ 31.50

3

0926320071
ref: 3

BEARING(20X27X23.5)

€ 21.50

4

6128217C00
ref: 4

SPACER,RR SWGARM PIVOT CTR

€ 11.50

5

6125117C00
ref: 5

SPACER,RR SWGARM PIVOT BERRING

€ 36.00

6-1

0821120381
ref: 6-1

WASHER

€ 3.00

6-2

0821120382
ref: 6-2

WASHER

€ 3.00

7

6126217C00
ref: 7

DUST SEAL,RR SWGARM PIVOT

€ 8.00

8

6121140C00
ref: 8

SHAFT,REAR SWING ARM PIVOT

€ 90.50

9

0832211188
ref: 9
08322-0118B

WASHER

€ 2.50

10

0915918007
ref: 10

NUT

€ 14.00

11

6121340C30
ref: 11

BOLT,RR SWGARM PIVOT

€ 63.50

12

6121440C30
ref: 12
61214-40C31

NUT,REAR SWING ARM PIVOT

€ 16.50

13

6231717C00
ref: 13

SPACER,RR CUSHION LEVER

€ 26.00

14

6127340C00
ref: 14

BUFFER,CHAIN TOUCH DEFENSE

€ 41.00

15

0911606111
ref: 15
09116-06152

BOLT 6X20,WITH PLAIN WASHER

€ 2.00

16

0918006002
ref: 16
09180-06283

SPACER

€ 2.00

17

6430007810
ref: 17
64300-07811

TORQUE LINK SET,REAR

€ 165.00

18

6435240411
ref: 18
64352-40401

SPHERICAL BEARING,TORQUE

€ 69.50

19

0910608048
ref: 19

BOLT(8X48)

€ 4.50

20

6433940410
ref: 20

6433940410

21

0910308160
ref: 21

BOLT(8X38)

€ 6.00

22

6433620A00
ref: 22

SPACER,RR TORQUE LINK RR

€ 8.00

23

0832211088
ref: 23
08322-01087

WASHER

€ 2.00

24

0831441088
ref: 24
08314-4008B

NUT 8MM

€ 2.50

25

0411120208
ref: 25
04111-2020A

PIN 20X20

€ 1.50
