WIRING HARNESS (MODEL L)

GSXR750 1988 (J) USA (E03)

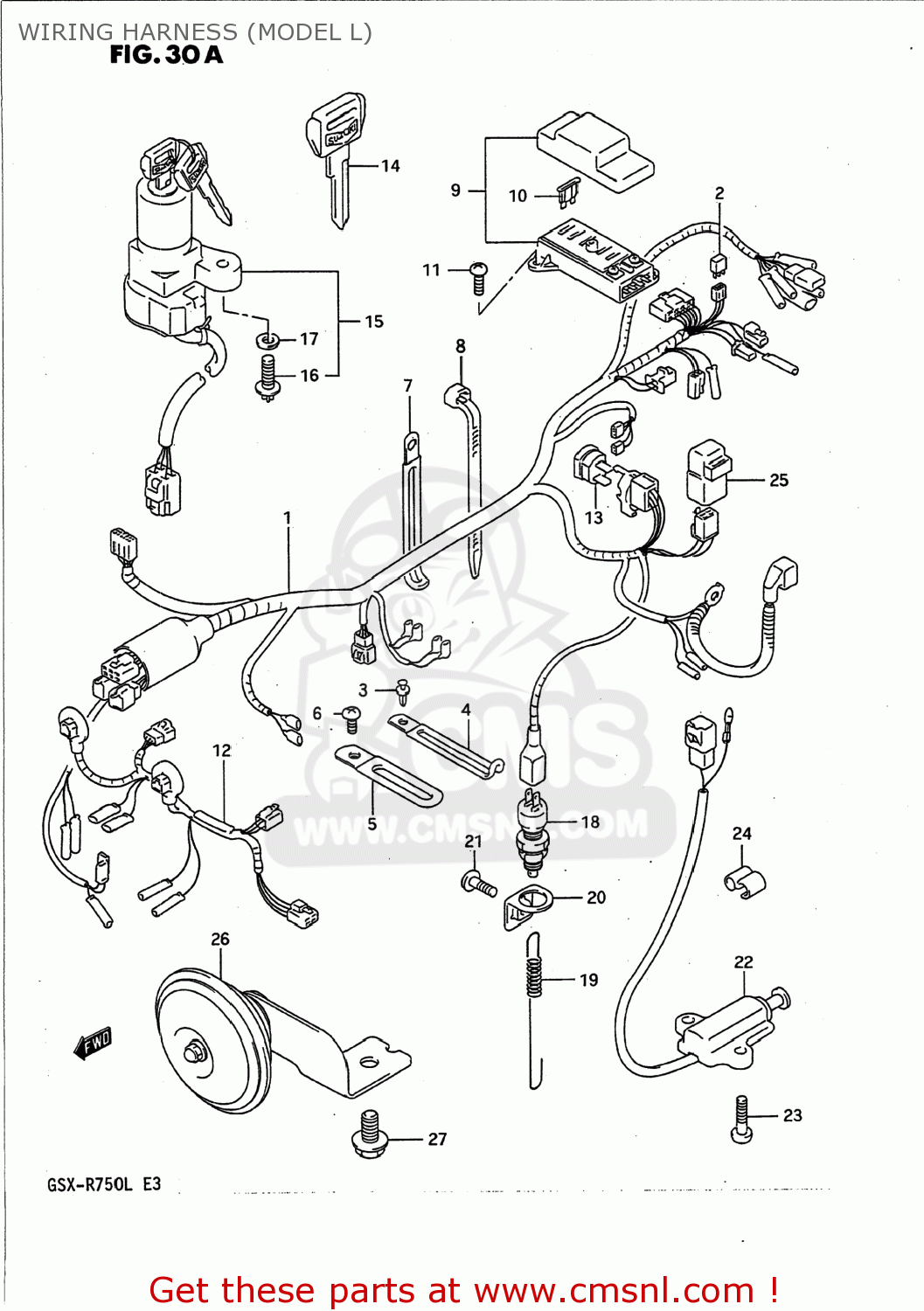

Wiring harness (model l) diagram GSXR750 1988 (J) USA (E03)

WIRING HARNESS (MODEL L) GSXR750 1988 (J) USA (E03)

WIRING HARNESS (MODEL L) GSXR750 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3661017D00
ref: 1
36610-40C52

HARNESS,WIRING

€ 327.00

2

3661138A00
ref: 2

DIODE(STANLEY DE8804)

€ 13.00

3

0940907305
ref: 3
09409-07305-5PK

CLIP

€ 1.50

4-1

0940406403
ref: 4-1
09404-06432

CLAMP

€ 2.50

4-2

0940406404
ref: 4-2
09404-06433

CLAMP

€ 3.00

5

0940405403
ref: 5

CLAMP

€ 2.00

6

0214205128
ref: 6
02142-05127

SCREW

€ 1.50

7

0940406415
ref: 7
09404-06433

CLAMP

€ 3.00

8-1

0940714403
ref: 8-1

CLAMP(L:125)

€ 2.50

8-2

0940718402
ref: 8-2

CLAMP(L:165)

€ 2.50

9

3674017D00
ref: 9

BOX ASSY,FUSE

€ 72.00

10-1

0948110101
ref: 10-1

FUSE(10A)

€ 2.50

10-2

0948120101
ref: 10-2

FUSE(20A)

€ 2.00

11

0214205164
ref: 11
02142-0516A

SCREW

€ 2.50

12

3685617D00
ref: 12

WIRE,HEADLAMP LEAD

€ 61.50

13

3675005A00
ref: 13

BREAKER ASSY,CIRCUT

€ 36.50

14

3714603A80
ref: 14
37146-26D10

KEY,BLANK

€ 41.50

15

3710017C00
ref: 15
37100-26D03

LOCK ASSEMBLY,STEERING

€ 134.00

16

0913906026
ref: 16

SCREW(6X18)

€ 2.50

17

0832131066
ref: 17
08321-0106A

WASHER

€ 2.00

18

3774004A10
ref: 18

SWITCH ASSY,STOP LAMP

€ 22.00

19

0944306012
ref: 19

SPRING

€ 3.00

20

4325117C01
ref: 20

BRACKET,STOP LAMP SWITCH

€ 9.50

21

0913906027
ref: 21

SCREW(6X12)

€ 3.00

22

3784017C01
ref: 22
37840-32C01

SWITCH ASSEMBLY,SIDE STAND

€ 67.50

23

0211236165
ref: 23
02112-3616A

SCREW

€ 2.50

24

0940800002
ref: 24

CLIP

€ 2.00

25

3874024B10
ref: 25
38740-24X50

RELAY ASSEMBLY

€ 37.50

26

3850017D00
ref: 26

HORN ASSEMBLY

€ 39.00

27

0151708128
ref: 27
01550-08127

BOLT 8X12

€ 3.50
