COWLING (MODEL J 9SR)
GSXR750 1988 (J) USA (E03)

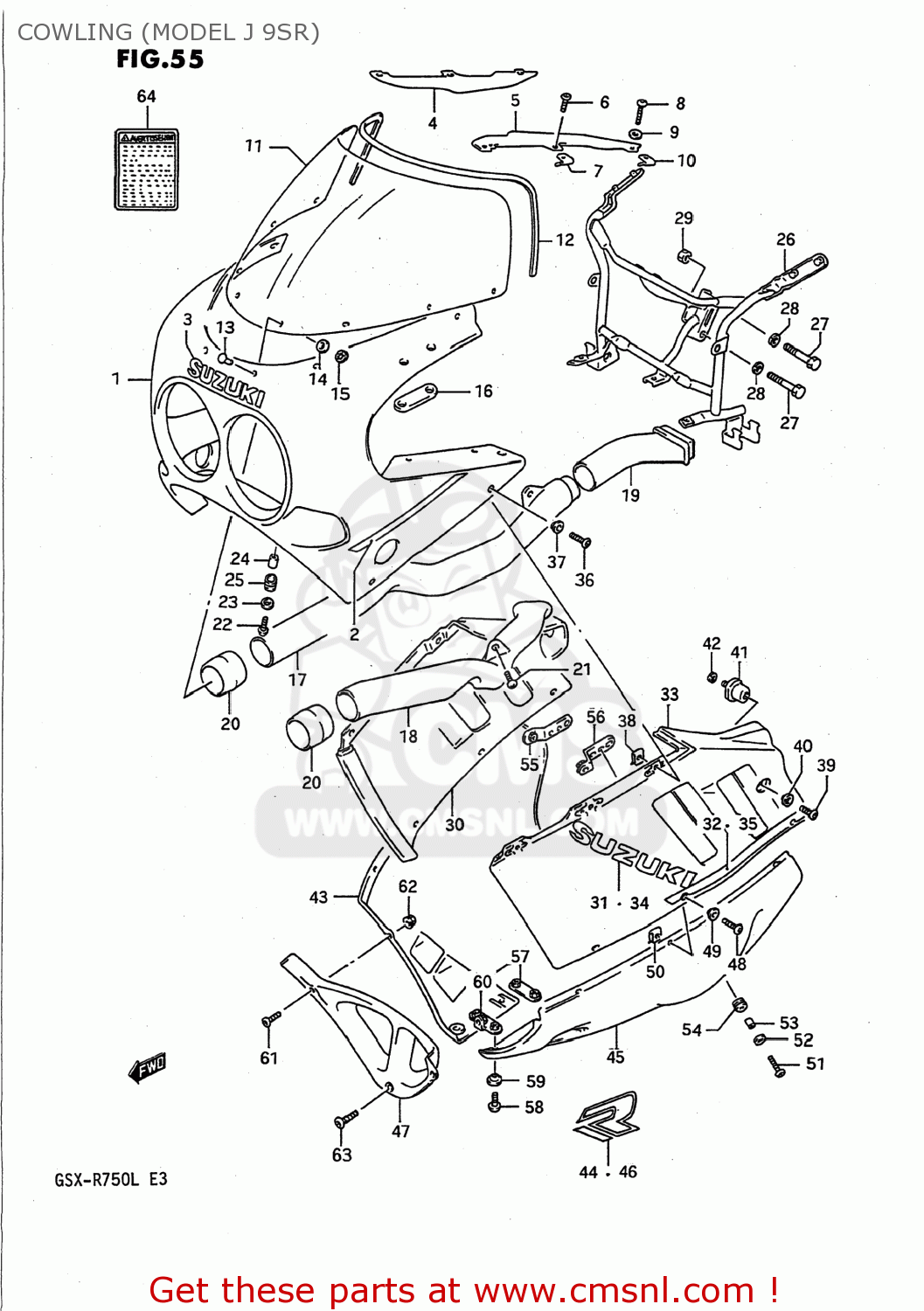

Cowling (model j 9sr) diagram GSXR750 1988 (J) USA (E03)
COWLING (MODEL J 9SR) GSXR750 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
9440017C109SR
ref: 1
BODY ASSEMBLY,COWLING
€ 956.50
1
9440017C109SR
ref: 1
BODY ASSEMBLY,COWLING
€ 956.50
2
6818017C0133N
ref: 2
TAPE SET,COWLING
€ 14.00
3
6827104A0022R
ref: 3
68271-04A10-22R
EMBLEM,COWLING,UPPER (W)
€ 12.00
4
9443217C01
ref: 4
94432-17C02
PANEL,COWLING UPPER,RIGHT
€ 12.00
5
9444217C01
ref: 5
94442-17C02
COVER,COWLING,LEFT
€ 12.00
6
0913905033
ref: 6
SCREW(5X10)
€ 2.00
7
0914805023
ref: 7
09148-05021
NUT
€ 1.50
8
0913905025
ref: 8
SCREW(5X14)
€ 2.00
9
0916105010
ref: 9
WASHER(5.2X11X1)
€ 2.00
10
0914805023
ref: 10
09148-05021
NUT
€ 1.50
11-1
9461117C00
ref: 11-1
94610-17D02
WINDSCREEN
€ 280.50
11-2
9460017830
ref: 11-2
CLEAR WINDSCREEN,SMALL
€ 289.50
12
9463117C00
ref: 12
MOLDING,WINDSCREEN
€ 16.00
13
9461617C00
ref: 13
94616-22D00
PIN,WINDSCREEN
€ 2.50
14
0932004007
ref: 14
09320-04501
CUSHION
€ 3.00
15
0914804010
ref: 15
NUT
€ 2.00
16
9457612C00
ref: 16
CUSHION,RR VIEW MIRRORR
€ 4.50
17
9445117C01
ref: 17
PIPE,AIR INTAKE,FRONT
€ 31.50
18
9445217C02
ref: 18
PIPE,AIR INTAKE,FRONT
€ 30.00
19
9445317C00
ref: 19
PIPE,AIR INTAKE RR,R
€ 23.50
20
9445417C01
ref: 20
JOINT,AIR INTAKE
€ 9.50
21
0214206207
ref: 21
SCREW
€ 2.00
22
0913906028
ref: 22
SCREW(6X20)
€ 3.50
23
0916006056
ref: 23
WASHER(6.5X18X1)
€ 2.00
24
0918006152
ref: 24
09180-06262
SPACER
€ 3.00
25
0932009016
ref: 25
CUSHION
€ 2.50
26
9451017C01
ref: 26
BRACE,COWLING
€ 178.50
27
0110708355
ref: 27
01500-0835B
BOLT
€ 3.50
28
0832121084
ref: 28
08321-0108A
WASHER,LOCK,8.
€ 2.50
29
0831012085
ref: 29
08310-0008A
NUT ,8MM
€ 1.50
30
9443017C009SR
ref: 30
COVER,COWLING SIDE,RIGHT
€ 430.50
31
681124340022R
ref: 31
EMBLEM
€ 9.50
32
6868517C0039K
ref: 32
TAPE,COWLING SIDE STRIPE
€ 14.50
32
6868517C0039K
ref: 32
TAPE,COWLING SIDE STRIPE
€ 14.50
32
6868517C0039K
ref: 32
TAPE,COWLING SIDE STRIPE
€ 14.50
32
6868517C0039K
ref: 32
TAPE,COWLING SIDE STRIPE
€ 14.50
32
6868517C0039K
ref: 32
TAPE,COWLING SIDE STRIPE
€ 14.50
33
9444017C009SR
ref: 33
COVER,COWLING SIDE,LEFT
€ 430.50
34
681124340022R
ref: 34
EMBLEM
€ 9.50
35
6869517C0039K
ref: 35
TAPE,COWLING SIDE STRIPE
€ 15.00
36
0913905032
ref: 36
SCREW(5X18)
€ 2.50
37
0916105017
ref: 37
WASHER(5.2X14X1.5)
€ 3.00
38
9448432B00
ref: 38
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
39
0913906027
ref: 39
SCREW(6X12)
€ 3.00
40
0916106021
ref: 40
WASHER(6.3X16X1.5)
€ 2.50
41
9457004A00
ref: 41
CUSHION,COWLING
€ 12.50
42
0832121064
ref: 42
08321-0106A
WASHER,LOCK
€ 2.00
43
9447017C202GZ
ref: 43
COWLING COMP,UNDER,RIGHT
€ 597.00
44
6819106B002GR
ref: 44
EMBLEM,COWLING UNDER
€ 19.00
45
9448017C202GZ
ref: 45
94480-17D00-13L
COWLING COMP,UNDER,LEFT
€ 374.00
46
6819106B002GR
ref: 46
EMBLEM,COWLING UNDER
€ 19.00
47
9449817C0022R
ref: 47
94498-17C02-019
COWLING,UNDER,CENTER
€ 80.50
48
0913905032
ref: 48
SCREW(5X18)
€ 2.50
49
0916105017
ref: 49
WASHER(5.2X14X1.5)
€ 3.00
50
9448432B00
ref: 50
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
51
0913906028
ref: 51
SCREW(6X20)
€ 3.50
52
0916006056
ref: 52
WASHER(6.5X18X1)
€ 2.00
53
0918006152
ref: 53
09180-06262
SPACER
€ 3.00
54
0932009016
ref: 54
CUSHION
€ 2.50
55
9458017C01
ref: 55
94580-40C00
BRACKET
€ 6.00
56
9459017C01
ref: 56
94590-40C00
BRACE,COWLING UNDER,LH
€ 7.00
57
9449306B00
ref: 57
BRACE,COWLING LWR COVER RR
€ 4.00
58
0913906039
ref: 58
SCREW(6X16)
€ 2.50
59
0916106021
ref: 59
WASHER(6.3X16X1.5)
€ 2.50
60
9449006B00
ref: 60
BRACE,COWLING LWR COVER
€ 4.50
61
0913905025
ref: 61
SCREW(5X14)
€ 2.00
62
0831626055
ref: 62
08316-2005A
NUT
€ 2.00
63
0913906030
ref: 63
SCREW(6X16)
€ 3.50
64
6861248B00
ref: 64
68922-14F00
LABEL (WARNING SCREEN)
€ 6.50
64
6861248B00
ref: 64
68922-14F00
LABEL (WARNING SCREEN)
€ 6.50
64
6861248B00
ref: 64
68922-14F00
LABEL (WARNING SCREEN)
€ 6.50
64
6861248B00
ref: 64
68922-14F00
LABEL (WARNING SCREEN)
€ 6.50
64
6861248B00
ref: 64
68922-14F00
LABEL (WARNING SCREEN)
€ 6.50
