HANDLE SWITCH (MODEL K/L)

GSXR750 1988 (J) USA (E03)

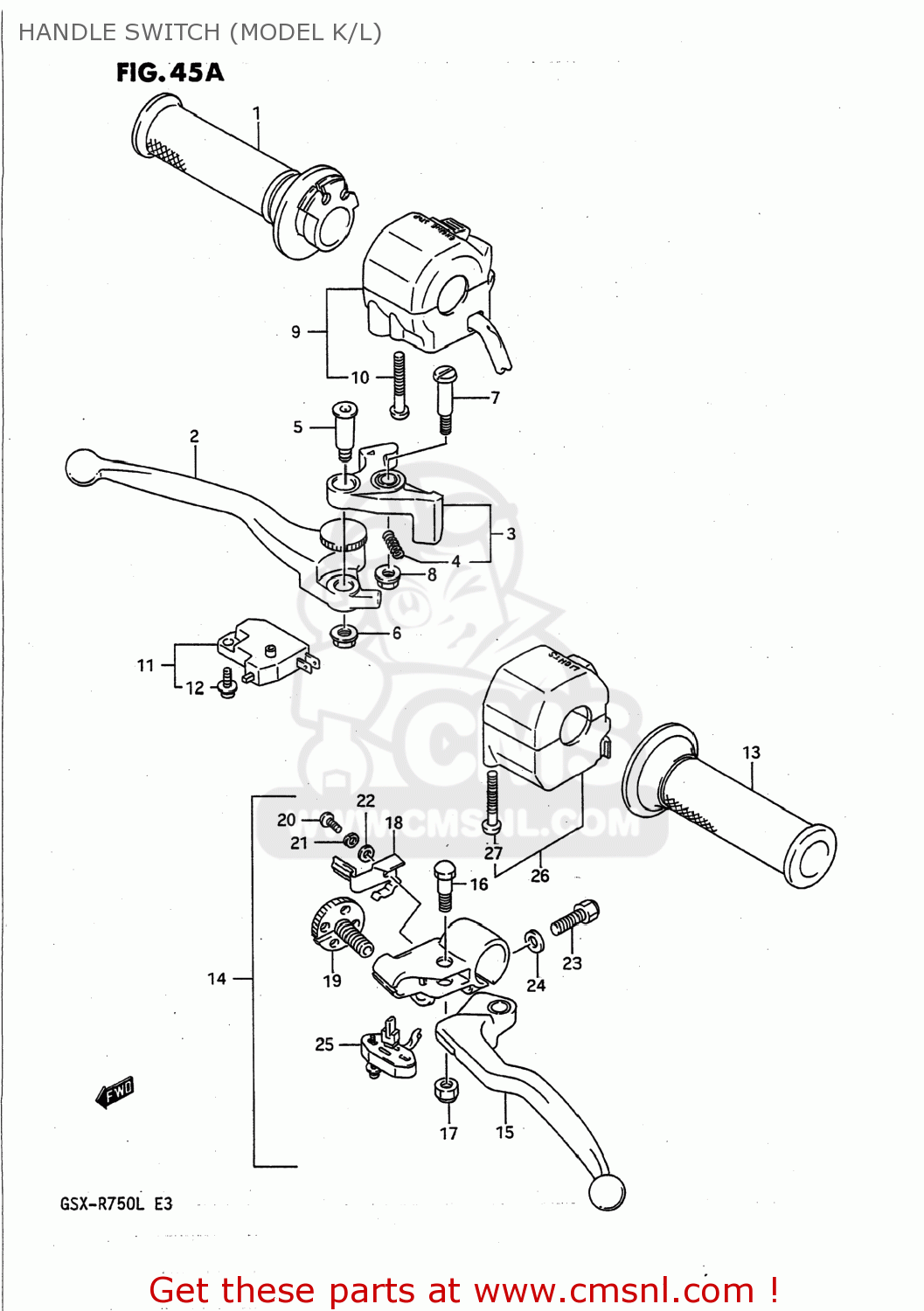

Handle switch (model k/l) diagram GSXR750 1988 (J) USA (E03)

HANDLE SWITCH (MODEL K/L) GSXR750 1988 (J) USA (E03)

HANDLE SWITCH (MODEL K/L) GSXR750 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5711005C01
ref: 1

GRIP,THROTTLE

€ 30.50

2

5742032C00
ref: 2

LEVER,ADJUST

€ 39.50

3

5743040C00
ref: 3
57430-40C10

KNOCKER

€ 51.00

4

5743832C00
ref: 4

SPRING

€ 4.00

5

5743732C00
ref: 5
57437-32C01

BOLT,LEVER

€ 6.50

6

0831931065
ref: 6
08319-3106A

NUT

€ 2.50

7

5743117C00
ref: 7

BOLT,LEVER PIVOT

€ 8.00

8

0831616064
ref: 8
08316-1006B

NUT 6MM

€ 2.50

9

3720017C31
ref: 9
37200-45C22

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 110.00

10

0211205455
ref: 10
02112-0545B

SCREW, 5X45

€ 4.00

11

5746017C00
ref: 11
57460-17C01

SWITCH ASSEMBLY,STOP

€ 32.50

12

5746517C00
ref: 12

SCREW

€ 1.50

13

5721105C00
ref: 13

GRIP,L

€ 21.00

14

5750017C01
ref: 14
57500-17C02

LEVER ASSEMBLY

€ 30.00

15

5762027A30
ref: 15
57620-27A31

LEVER,CLUTCH

€ 34.00

16

5743149110
ref: 16

BOLT,LEVER PIVOT

€ 5.00

17

0831921065
ref: 17
08319-2106B

NUT

€ 2.50

18

5764420A02
ref: 18

ADJUST,SPRING

€ 5.00

19

5764120A03
ref: 19
57641-33E21

ADJUSTER,LOCK

€ 24.00

20

0211204068
ref: 20
02112-0406B

SCREW 4X6

€ 2.00

21

0832121047
ref: 21
08321-0104A

WASHER,LOCK 4M

€ 2.00

22

0832221047
ref: 22
08322-01047

WASHER 4MM

€ 2.00

23

0120406204
ref: 23

BOLT

€ 2.00

24

0832221064
ref: 24
08322-0106B

WASHER

€ 2.00

25

5756017C00
ref: 25

SWITCH ASSEMBLY,CLUTCH

€ 15.00

26

3740017C11
ref: 26
37400-06B20

SWITCH ASSEMBLY,HANDLE,LEFT

€ 102.00

27

0211205455
ref: 27
02112-0545B

SCREW, 5X45

€ 4.00
