COWLING (MODEL K 7JJ)
GSXR750 1988 (J) USA (E03)

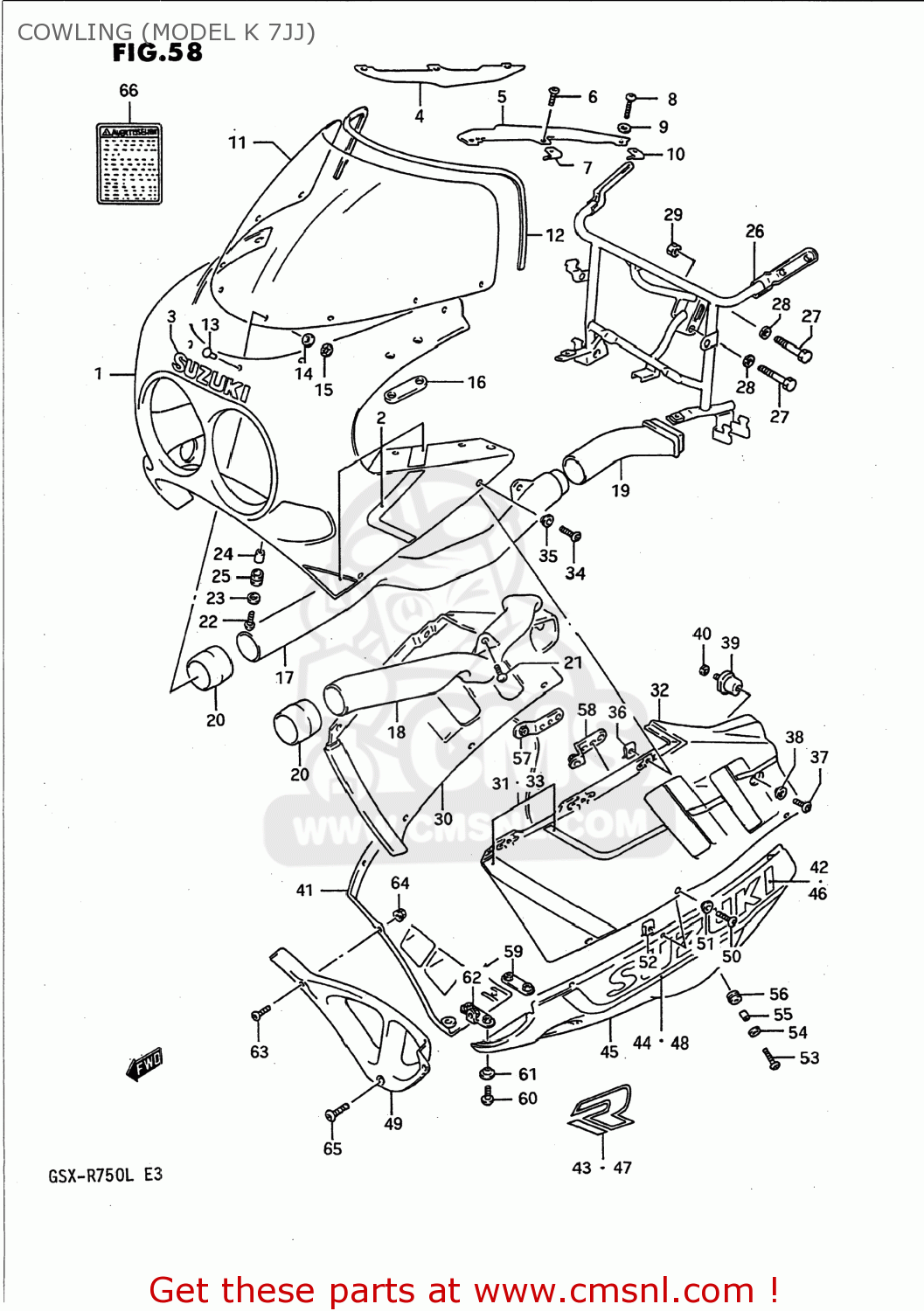

Cowling (model k 7jj) diagram GSXR750 1988 (J) USA (E03)
COWLING (MODEL K 7JJ) GSXR750 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
9440018C907JJ
ref: 1-1
BODY ASSEMBLY,COWLING
€ 907.00
1-2
9440018C917JJ
ref: 1-2
94400-18C90-7JJ
BODY ASSEMBLY,COWLING
€ 907.00
2
6818017C307JT
ref: 2
TAPE SET,COWLING,UPPER
€ 41.00
3
6827104A0022R
ref: 3
68271-04A10-22R
EMBLEM,COWLING,UPPER (W)
€ 12.00
4
9443217C01
ref: 4
94432-17C02
PANEL,COWLING UPPER,RIGHT
€ 12.00
5
9444217C01
ref: 5
94442-17C02
COVER,COWLING,LEFT
€ 12.00
6
0913905033
ref: 6
SCREW(5X10)
€ 2.00
7
0914805023
ref: 7
09148-05021
NUT
€ 1.50
8
0913905025
ref: 8
SCREW(5X14)
€ 2.00
9
0916105010
ref: 9
WASHER(5.2X11X1)
€ 2.00
10
0914805023
ref: 10
09148-05021
NUT
€ 1.50
11-1
9461117C00
ref: 11-1
94610-17D02
WINDSCREEN
€ 280.50
11-2
9460017830
ref: 11-2
CLEAR WINDSCREEN,SMALL
€ 289.50
12
9463117C00
ref: 12
MOLDING,WINDSCREEN
€ 16.00
13
9461617C00
ref: 13
94616-22D00
PIN,WINDSCREEN
€ 2.50
14
0932004007
ref: 14
09320-04501
CUSHION
€ 3.00
15
0914804010
ref: 15
NUT
€ 2.00
16
9457612C00
ref: 16
CUSHION,RR VIEW MIRRORR
€ 4.50
17
9445117C01
ref: 17
PIPE,AIR INTAKE,FRONT
€ 31.50
18
9445217C02
ref: 18
PIPE,AIR INTAKE,FRONT
€ 30.00
19
9445317C00
ref: 19
PIPE,AIR INTAKE RR,R
€ 23.50
20
9445417C01
ref: 20
JOINT,AIR INTAKE
€ 9.50
21
0214206207
ref: 21
SCREW
€ 2.00
22
0913906056
ref: 22
SCREW(6X20)
€ 3.00
23
0916006056
ref: 23
WASHER(6.5X18X1)
€ 2.00
24
0918006152
ref: 24
09180-06262
SPACER
€ 3.00
25
0932009016
ref: 25
CUSHION
€ 2.50
25
0932009016
ref: 25
CUSHION
€ 2.50
26
9451017C13
ref: 26
94510-17C14
BRACE,COWLING
€ 184.00
27
0110708355
ref: 27
01500-0835B
BOLT
€ 3.50
28
0832121084
ref: 28
08321-0108A
WASHER,LOCK,8.
€ 2.50
29
0831012085
ref: 29
08310-0008A
NUT ,8MM
€ 1.50
30-1
9443017C407JJ
ref: 30-1
COVER,COWLING SIDE,RIGHT
€ 208.50
30-2
9443017C417JJ
ref: 30-2
94430-17C40-7JJ
COVER,COWLING SIDE,RIGHT
€ 208.50
31
6868017C00019
ref: 31
TAPE SET,COWLING SIDE
€ 25.00
32-1
9444017C407JJ
ref: 32-1
COVER,COWLING SIDE,LEFT
€ 406.00
32-2
9444017C417JJ
ref: 32-2
94440-17C40-7JJ
COVER,COWLING SIDE,LEFT
€ 406.00
33
6869017C00019
ref: 33
TAPE SET,COWLING SIDE
€ 25.00
34
0913905032
ref: 34
SCREW(5X18)
€ 2.50
35
0916105017
ref: 35
WASHER(5.2X14X1.5)
€ 3.00
36
9448432B00
ref: 36
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
37
0913906027
ref: 37
SCREW(6X12)
€ 3.00
38
0916106021
ref: 38
WASHER(6.3X16X1.5)
€ 2.50
39
9457004A00
ref: 39
CUSHION,COWLING
€ 12.50
40
0832121064
ref: 40
08321-0106A
WASHER,LOCK
€ 2.00
41-1
9447018C107JJ
ref: 41-1
94470-17D00-13L
COWLING,UNDER,RIGHT
€ 441.50
41-2
9447018C117JJ
ref: 41-2
94470-17D00-13L
COWLING,UNDER,RIGHT
€ 441.50
42
6811100A5022P
ref: 42
EMBLEM,COWLING SIDE (RED)
€ 19.50
43
6819106B007JT
ref: 43
EMBLEM,COWLING,UNDER
€ 15.00
44
6819517C00019
ref: 44
TAPE,COWLING,UNDER,RIGHT
€ 22.50
45-1
9448018C107JJ
ref: 45-1
94480-18C40-7JJ
COWLING,UNDER,LEFT
€ 529.50
45-2
9448018C117JJ
ref: 45-2
94480-18C40-7JJ
COWLING,UNDER,LEFT
€ 529.50
46
681113320022P
ref: 46
EMBLEM,COWLING,UNDER (R)
€ 10.50
47
6819106B007JT
ref: 47
EMBLEM,COWLING,UNDER
€ 15.00
48
6827517C00019
ref: 48
TAPE,COWLING,UNDER,LEFT
€ 22.50
49-1
9449817C0022P
ref: 49-1
94498-17C02-019
COWLING,UNDER,CENTER
€ 80.50
49-2
9449817C01
ref: 49-2
94498-17C02-019
COWLING,UNDER,CENTER
€ 80.50
49-2
9449817C01
ref: 49-2
94498-17C02-019
COWLING,UNDER,CENTER
€ 80.50
50
0913905032
ref: 50
SCREW(5X18)
€ 2.50
51
0916105017
ref: 51
WASHER(5.2X14X1.5)
€ 3.00
52
9448432B00
ref: 52
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
53
0913906028
ref: 53
SCREW(6X20)
€ 3.50
54
0916006056
ref: 54
WASHER(6.5X18X1)
€ 2.00
55
0918006152
ref: 55
09180-06262
SPACER
€ 3.00
56
0932009016
ref: 56
CUSHION
€ 2.50
57
9458017C01
ref: 57
94580-40C00
BRACKET
€ 6.00
58
9459017C01
ref: 58
94590-40C00
BRACE,COWLING UNDER,LH
€ 7.00
59
9449306B00
ref: 59
BRACE,COWLING LWR COVER RR
€ 4.00
60
0913906039
ref: 60
SCREW(6X16)
€ 2.50
61
0916106021
ref: 61
WASHER(6.3X16X1.5)
€ 2.50
62
9449006B00
ref: 62
BRACE,COWLING LWR COVER
€ 4.50
63
0913905025
ref: 63
SCREW(5X14)
€ 2.00
64
0831626055
ref: 64
08316-2005A
NUT
€ 2.00
65
0913906030
ref: 65
SCREW(6X16)
€ 3.50
66
6861248B00
ref: 66
68922-14F00
LABEL (WARNING SCREEN)
€ 6.50
66
6861248B00
ref: 66
68922-14F00
LABEL (WARNING SCREEN)
€ 6.50
