REAR CALIPER
GSXR750 1988 (J) USA (E03)

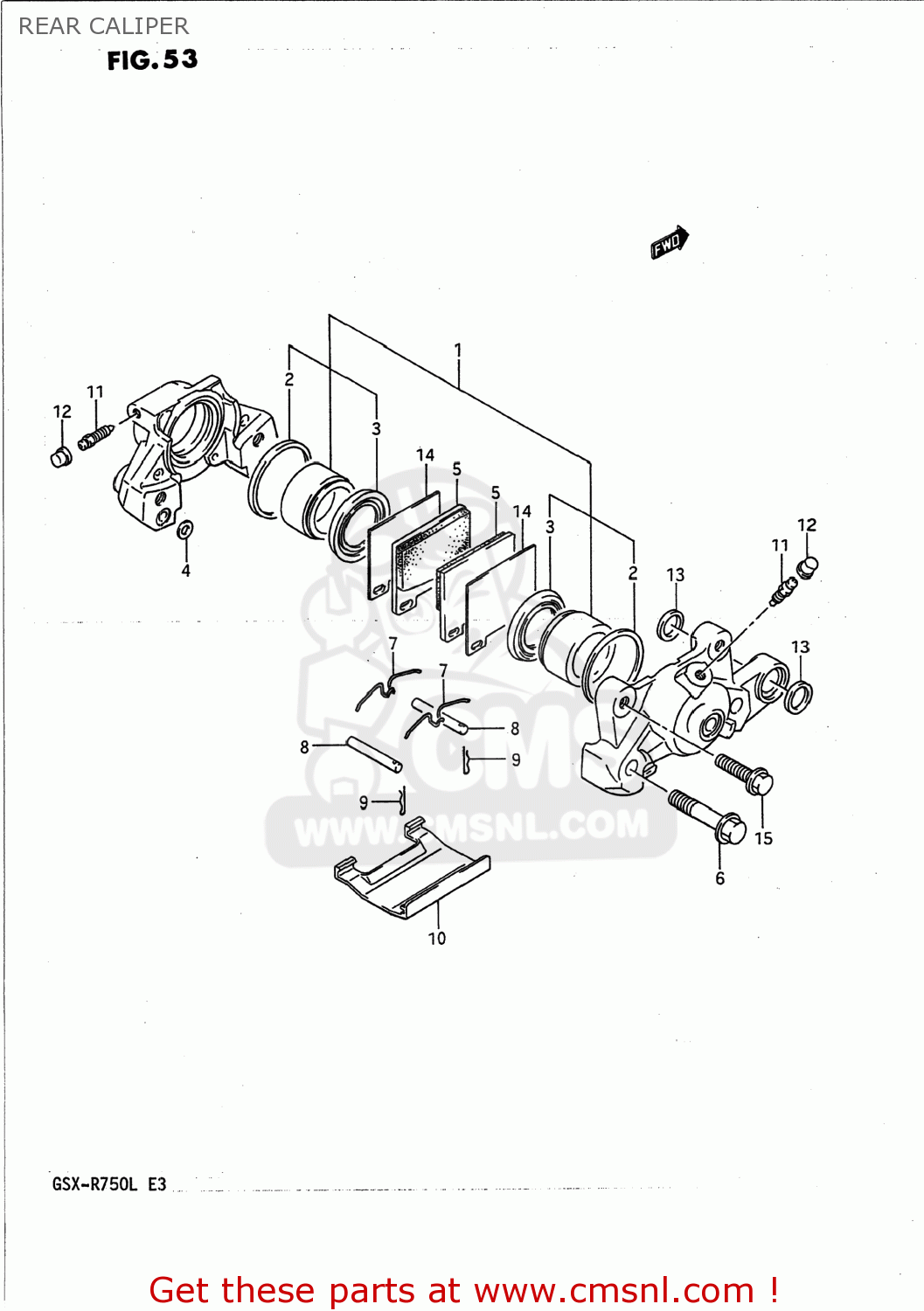

Rear caliper diagram GSXR750 1988 (J) USA (E03)
REAR CALIPER GSXR750 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
6910017C00
ref:
69100-17CV0
CALIPER ASSEMBLY,REAR
€ 769.00
1
6910017830
ref: 1
PISTON SET
€ 103.50
2
5910718410
ref: 2
69107-05CF0
SEAL,PISTON
€ 17.00
3
5910816700
ref: 3
BOOT
€ 16.50
4
6910734200
ref: 4
SEAL,JOINT
€ 12.00
5
6913006B00
ref: 5
69100-06810
PAD,BRAKE
€ 49.50
6
5914517C00
ref: 6
BOLT
€ 7.00
7
5914316700
ref: 7
SPRING
€ 7.50
8
6914145000
ref: 8
PIN,PAD
€ 6.50
9
6914245000
ref: 9
CLIP,PAD PIN
€ 4.50
10
5915116701
ref: 10
COVER
€ 13.50
11
5912118410
ref: 11
BLEEDER
€ 8.00
12
5912218410
ref: 12
55156-66310
CAP,BREATHER
€ 6.00
13
6264704A00
ref: 13
SEAL,RR CUSHION ROD LWR
€ 4.50
14
5937133410
ref: 14
SHIM,PAD
€ 15.00
15
0151708304
ref: 15
01550-0830A
BOLT
€ 3.00
