ALTERNATOR
GSXR750 1990 (L) USA (E03)

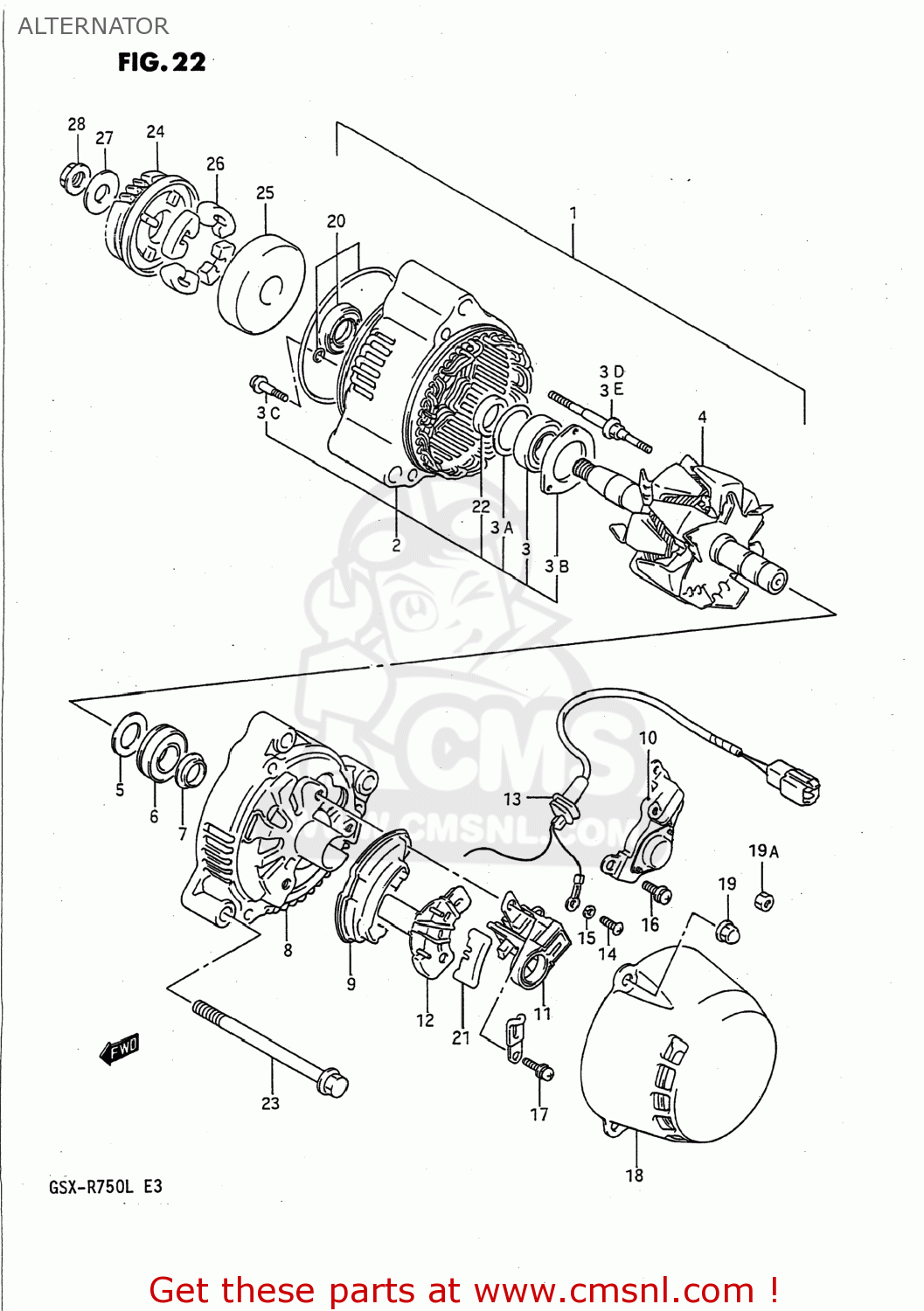

Alternator diagram GSXR750 1990 (L) USA (E03)
ALTERNATOR GSXR750 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3140048B03
ref: 1
31400-17C04
GENERATOR ASSEMBLY
€ 1,063.50
2
3158048B00
ref: 2
FRAME,DRIVE END
€ 248.50
3
3161206B00
ref: 3
BEARING
€ 36.50
3A
3161348B00
ref: 3A
COVER,BEARING
€ 5.50
3B
3158548B00
ref: 3B
RETAINER
€ 9.00
3C
3158648B00
ref: 3C
SCREW,BEARING RETAINER
€ 3.50
3D
3158785250
ref: 3D
STUD BOLT
€ 9.00
3E
3158719C00
ref: 3E
31587-85250
STUD BOLT
€ 9.00
4
3171048B03
ref: 4
31710-48B04
ROTOR ASSEMBLY
€ 277.50
5
3161327A00
ref: 5
31613-82610
COVER (2)
€ 3.50
6
3161248B00
ref: 6
BEARING
€ 42.50
7
3161327A10
ref: 7
COVER(2)
€ 5.50
8
3161148B00
ref: 8
FRAME,END
€ 83.00
9
3162127A00
ref: 9
HOLDER,RECTIFIER
€ 225.50
10
3250027A00
ref: 10
REGULATOR
€ 321.00
11
3165648B00
ref: 11
HOLDER,BRUSH
€ 55.50
12
3168727A00
ref: 12
31687-17E00
COVER,RECTIFIER
€ 4.50
13
3148048B00
ref: 13
WIRE,LEAD
€ 22.00
14-1
0211204086
ref: 14-1
02112-0408A
SCREW
€ 2.00
14-2
3151685250
ref: 14-2
02112-0406B
SCREW
€ 2.00
15
0832121046
ref: 15
08321-0104A
LOCK WASHER
€ 2.00
16
3168827A00
ref: 16
SCREW
€ 2.50
17
3168806B00
ref: 17
31688-27A00
SCREW
€ 2.50
18
3161448B00
ref: 18
COVER
€ 67.50
19
3169248B00
ref: 19
08313-2005A
NUT
€ 1.50
19A
0831616055
ref: 19A
NUT ,5MM
€ 2.00
20
3178048B00
ref: 20
31780-27X50
SEAL SET,OIL
€ 47.50
21
3151427A00
ref: 21
31687-17E00
BUSH
€ 4.50
22
3177606B00
ref: 22
SPACER
€ 22.00
23-1
0151708905
ref: 23-1
01550-0890B
BOLT (8X90)
€ 3.50
23-2
0151708908
ref: 23-2
01550-08907
BOLT 8X90
€ 3.50
24
2273019C01
ref: 24
22730-19C02
GEAR,GENERATOR DRIVEN
€ 112.50
25-1
2273327A03
ref: 25-1
22733-27A05
HOUSING,GENERATOR GEAR
€ 95.00
25-2
2273327A04
ref: 25-2
22733-27A05
HOUSING,GENERATOR GEAR
€ 95.00
26
2123106B00
ref: 26
DAMPER,GENERATOR DRIVEN
€ 5.50
27
0821110283
ref: 27
WASHER
€ 3.00
28
0831626106
ref: 28
08316-2010B
NUT
€ 3.50
