CARBURETOR (MODEL L

GSXR750 1990 (L) USA (E03)

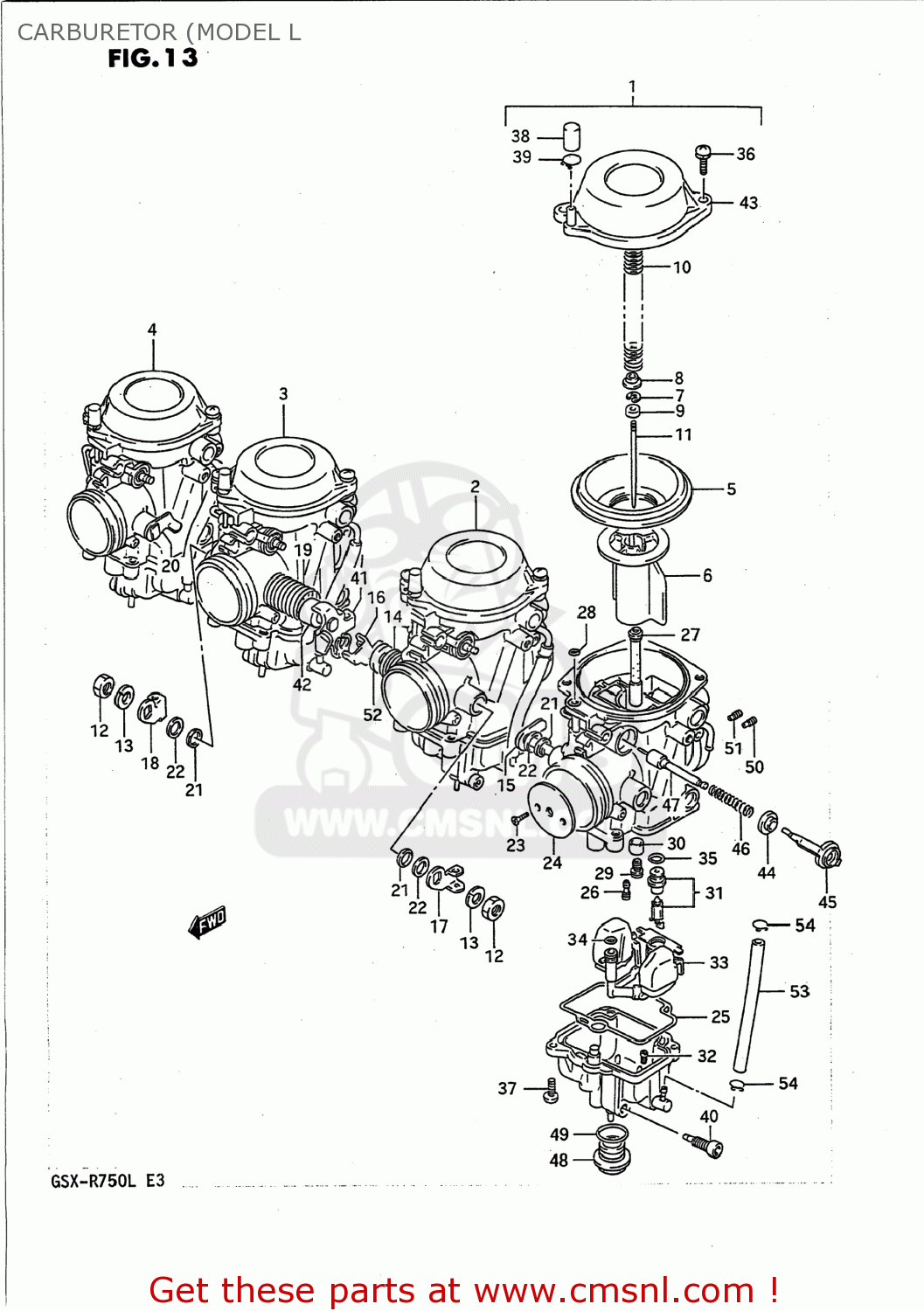

Carburetor (model l diagram GSXR750 1990 (L) USA (E03)

CARBURETOR (MODEL L GSXR750 1990 (L) USA (E03)
CARBURETOR (MODEL L GSXR750 1990 (L) USA (E03)
CARBURETOR (MODEL L GSXR750 1990 (L) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1320117D30
ref: 1
CARBURETOR ASSEMBLY,LEFT
€ 283.00
2
1320217D30
ref: 2
CARBURETOR ASSEMBLY,MIDDLE,LEFT
€ 0.00
3
1320317D30
ref: 3
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
€ 283.00
4
1320417D30
ref: 4
CARBURETOR ASSEMBLY,RIGHT
€ 357.00
5
1350707D00
ref: 5
13507-07D01
DIAPHRAGM
1350707D00
€ 24.50
6
1350117D00
ref: 6
VALVE,PISTON
1350117D00
€ 69.50
7
1339431210
ref: 7
CLIP,NEEDLE
1339431210
€ 3.50
8
1338217D00
ref: 8
13331-12D00
WASHER
1338217D00
€ 4.50
9
1338707D00
ref: 9
RING
1338707D00
€ 4.50
10
1341717D00
ref: 10
SPRING
1341717D00
€ 5.50
11
1338317D20
ref: 11
NEEDLE,JET
1338317D20
€ 14.00
12
0831022086
ref: 12
08310-0008A
NUT
€ 1.50
13
0832131086
ref: 13
08321-0108A
WASHER,LOCK,8.
€ 2.50
14
1357307D00
ref: 14
SPRING
€ 6.00
15
1355017D00
ref: 15
SHAFT ASSEMBLY
€ 0.00
16
1355017D10
ref: 16
SHAFT ASSEMBLY
€ 31.50
17
1355317C00
ref: 17
LEVER
€ 7.00
18
1355344B00
ref: 18
LEVER,THROTTLE
€ 7.00
19
1357307D10
ref: 19
SPRING
€ 6.00
20
1355017D30
ref: 20
SHAFT ASSEMBLY
€ 0.00
21
1355644B00
ref: 21
SEAL
1355644B00
€ 3.50
22
1355747070
ref: 22
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
23
1360407D00
ref: 23
13604-44080
SCREW
€ 3.50
24
1355117D10
ref: 24
VALVE,THROTTLE
1355117D10
€ 27.50
25
1325844B00
ref: 25
GASKET,FLOAT CHAMBER (NAS)
1325844B00
€ 8.50
26
0949232006
ref: 26
JET,PILOT(32.5)
0949232006
€ 8.50
27
0949400677
ref: 27
JET,NEEDLE(O-8)
0949400677
€ 37.00
28
1327802340
ref: 28
O RING
1327802340
€ 1.50
29
0949125011
ref: 29
JET,MAIN(127.5)
0949125011
€ 10.00
30
1333107D00
ref: 30
RING
1333107D00
€ 4.50
31
1337007D00
ref: 31
13370-46E20
VALVE ASSEMBLY,NEEDLE
€ 69.50
32
0949200001
ref: 32
PLUG
0949200001
€ 10.50
33
1324007D00
ref: 33
FLOAT ASSY
€ 52.50
34
1337446710
ref: 34
O RING
1337446710
€ 4.50
35
1337444080
ref: 35
13374-35C00
O-RING,NEEDLE VALVE
1337444080
€ 6.00
36
1360234390
ref: 36
02112-7516A
SCREW
1360234390
€ 2.50
37
0211205128
ref: 37
02112-05127
SCREW
€ 2.50
38
1350817C00
ref: 38
CAP
1350817C00
€ 4.50
39
1367133600
ref: 39
13671-05A40
CLIP
1367133600
€ 4.00
40
1324738B00
ref: 40
13247-02340
PLUG
€ 5.50
41
1355017D20
ref: 41
SHAFT ASSEMBLY
€ 0.00
42
1355705A20
ref: 42
RING
€ 3.00
43
1350217D00
ref: 43
COVER,DIAPHRAGM
1350217D00
€ 43.00
44
1341817C00
ref: 44
CAP,STARTER
1341817C00
€ 5.00
45
1341817C10
ref: 45
HOLDER,GUIDE
1341817C10
€ 14.00
46
1341709110
ref: 46
SPRING
1341709110
€ 6.00
47
1341105320
ref: 47
PLUNGER ASSY
1341105320
€ 18.00
48
1324732210
ref: 48
SCREW,GUIDE
1324732210
€ 13.00
49
1324941310
ref: 49
O RING,DRAIN PLUG
1324941310
€ 5.00
50-1
0949318001
ref: 50-1
JET,MAIN AIR(0.9)
0949318001
€ 14.50
50-2
0949324007
ref: 50-2
JET,AIR(1.2)
0949324007
€ 13.50
51
0949324007
ref: 51
JET,AIR(1.2)
0949324007
€ 13.50
52
1355707D00
ref: 52
RING
€ 5.50
53
1368381400
ref: 53
09355-30705-600
HOSE
€ 13.50
54
1367112C00
ref: 54
09401-06101
CLIP
€ 2.50
