MUFFLER (MODEL L)

GSXR750 1990 (L) USA (E03)

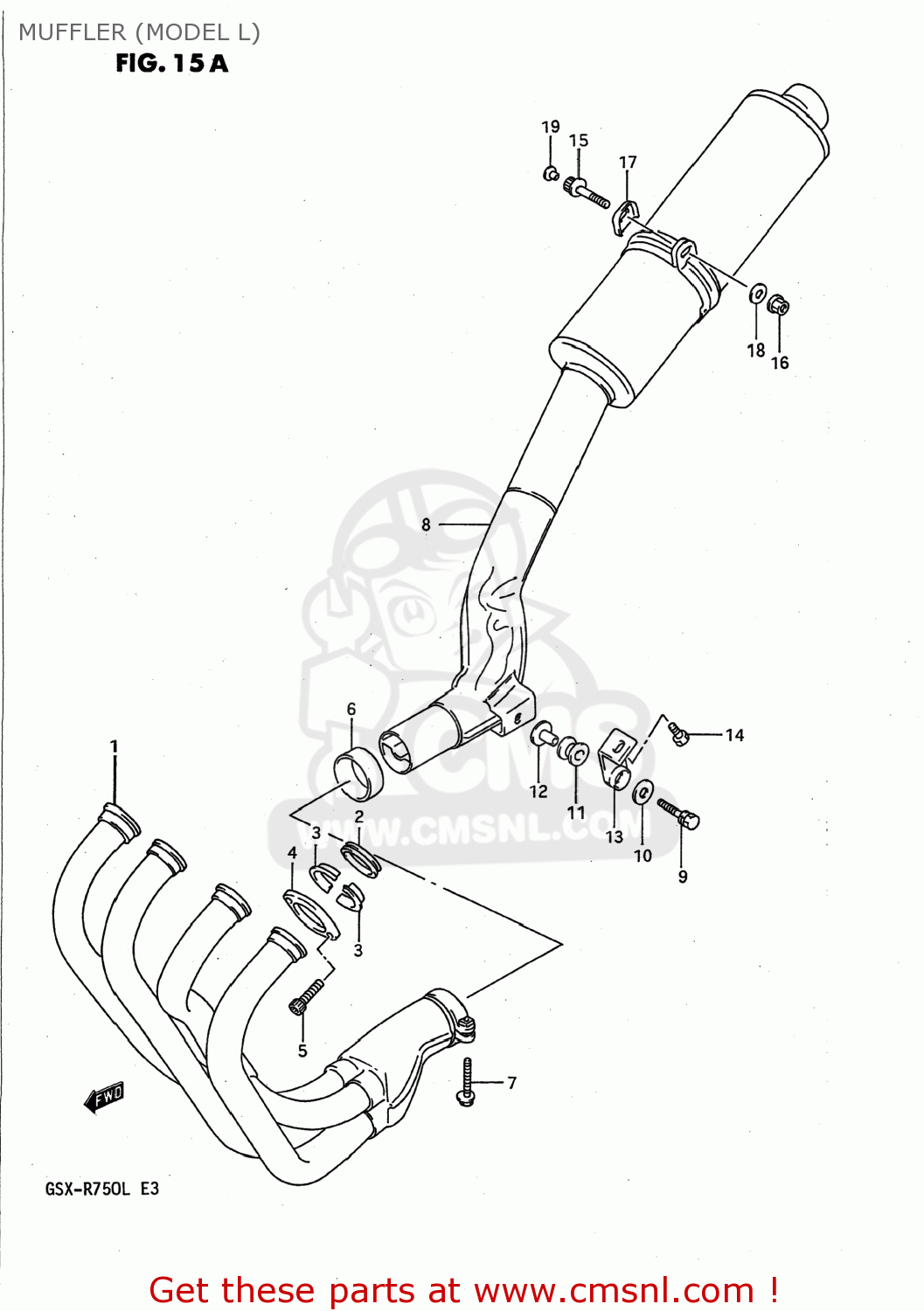

Muffler (model l) diagram GSXR750 1990 (L) USA (E03)

MUFFLER (MODEL L) GSXR750 1990 (L) USA (E03)

MUFFLER (MODEL L) GSXR750 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1410017D50H01
ref: 1

EXHAUST ASSY

€ 611.50

2

1418118C00
ref: 2

GASKET,EXHAUST (NAS)

€ 6.50

3

1415527A00
ref: 3

PLATE,EXHAUST PIPE

€ 3.50

4

1418227A00
ref: 4

CLAMP,EXHAUST PIPE

€ 35.50

5

0711008255
ref: 5
07130-0825B

BOLT

€ 3.50

6

1477107D00
ref: 6

CONNECTOR,MUFFLER

€ 33.50

7

0151708457
ref: 7
01550-08457

BOLT 8X45

€ 4.00

8

1430517D30H01
ref: 8
14305-17D11-H01

MUFFLER ASSEMBLY

€ 933.50

9

0911708026
ref: 9
09117-08071

BOLT 8X35

€ 6.50

10

0916008069
ref: 10
09160-08137

WASHER

€ 3.50

11

0932012038
ref: 11
09320-12033

CUSHION

€ 52.00

12

0918008157
ref: 12

SPACER(8.6X12X18.5)

€ 5.50

13

1477007D01
ref: 13

DAMPER COMP,MUFFLER SUPPORT F

€ 24.00

14

0910008240
ref: 14
09100-08299

BOLT(8X20)

€ 3.50

15

0712010407
ref: 15

BOLT

€ 4.50

16

0831616105
ref: 16
08316-1010B

NUT

€ 2.00

17

1441217D00
ref: 17

WASHER,MUFFLER SUPPORT

€ 7.00

18

0916010066
ref: 18
09160-10093

WASHER (10.5X24X2.3)

€ 2.00

19

0925008012
ref: 19

CAP(OD:12)

€ 2.00
